Dräger RVP 5000 Technical Handbook

26 Dräger RVP 5000
System
5System

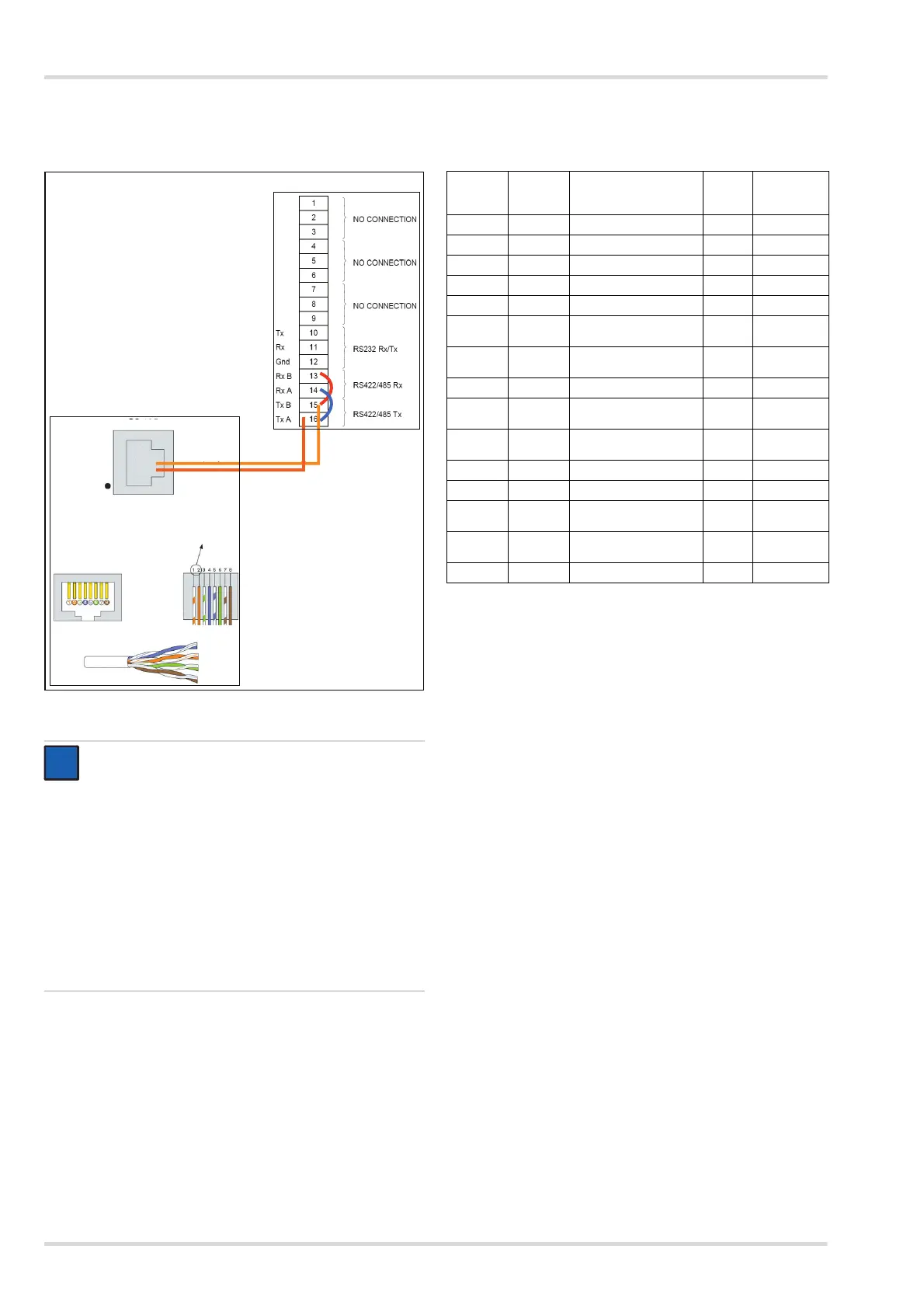

RS485 connection to the Dräger REGARD Modbus Card Setting of the REGARD Modus card
SW2: Set switch on REGARD Modbus card to RS422/485
NOTICE
Important information for the installed REGARD
system!
Dräger recommends that the Dräger RVP 5000 is only
used in conjunction with a REGARD system consisting
of ATEX channel cards (software revision 3.0). Using a
REGARD 8-channel card software revision 2.5 will
have following effect:
If the 8 channel card is set to latch when full scale
deflection (FSD) is reached this will not be shown on
the RVP 5000 after the input signal falls back into the
normal measuring range. The Dräger RVP 5000 will
show the measuring range instead of the FSD status
that's still displayed on the REGARD system.
Dräger Regard Modbus Card
Dräger RVP 5000
ORY 5 4PR/24 A
RS 485
RJ45
O/O G/B B/G Br/Br
05633194.eps
TxB
COMM
TxEN
RxB
RxA
TxA
(Pin8) TxA
(Pin1) TxB
T x B (PIN1)
T x A (Pin2)
T x B (PIN1)
T x A (Pin2)
i
i
Com-
mand No.
Com-
mand Na-
me
Function
Software version V 1.9
Default
Set-
tings
RVP 5000
Settings
00-0 QUIT Leave command mode
00-1 P.WD Enter password CCCC
00-2 SAVE Save settings
00-3 PCHG Change password CCCC
14-0 TLED Test display and LED's
14-6 TSLV
Test REGARD-
communication
14-7 TBUS
Test Modbus-
communication
52-1 GATE Set Modbus slave number 1 1
52-2 BAD2
Function 02 disable
exceptions
YES NO
52-3 BAD4
Function 04 disable
exceptions
YES NO
52-4 BAUD Set baudrate 4800 9600
52-5 PRTY Set pirarity NONE NONE
52-6 CKSM
REGARD communication
check sum
CRC CRC
52-7 FRMT
Set gas concentration
format
SIGN SIGN
60-1 DISP Switch display on/off OFF ON
