Dräger RVP 5000 Technical Handbook

Installation
Dräger RVP 5000 25
4.2 Electrical installation
The electrics must be laid and connected only by a specialist
and whilst observing the relevant directives. When laying the
cables, the national directives concerning the disconnection
from the mains, low voltage and control voltage supplies must
be observed (in Germany: VDE provisions).
DANGER
With 230 V rated voltage, 50 Hz in the switch cabinet:
A simple touch could cause severe burns or death.
Have the electrics connected only by an experienced
electrician. Make sure the voltage is switched off
before installation!
WARNING
Ensure you observe the locally applicable safety
directives as well as these operating instructions!
!
!

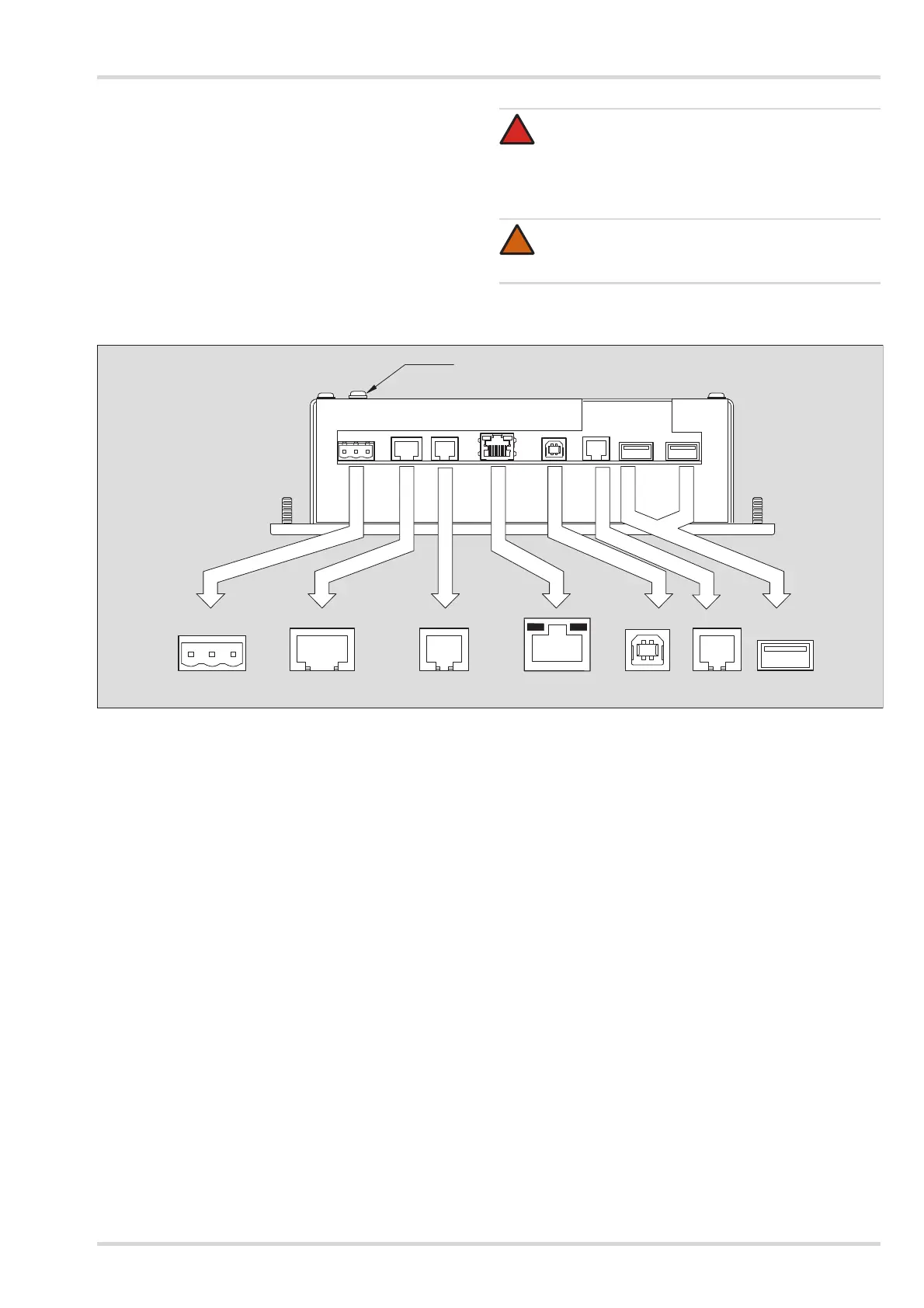

05433194.eps
RS232RS485
1
AB C D
E
G
1 2 3
1 2 3 4
1 2 3 4 1 2 3 4
RS232
F
A Power supply
1 COMMON
2 24 V DC ±20 %
3 N/C
C COMMS port – RS232
CTS (PIN 1)
Rx
COMM
COMM
Tx
RTS (PIN 6)
B COMMS port – RS485:
TxB (PIN 1)
TxA
RxA
RxB
TxEN
COMM
TxB
TxA (PIN 8)
D
E
Ethernet (NIC)
USB, type B
F PGM port – RS232
CTS (PIN 1)
Rx
COMM
COMM
Tx
RTS (PIN 6)
G USB Host
