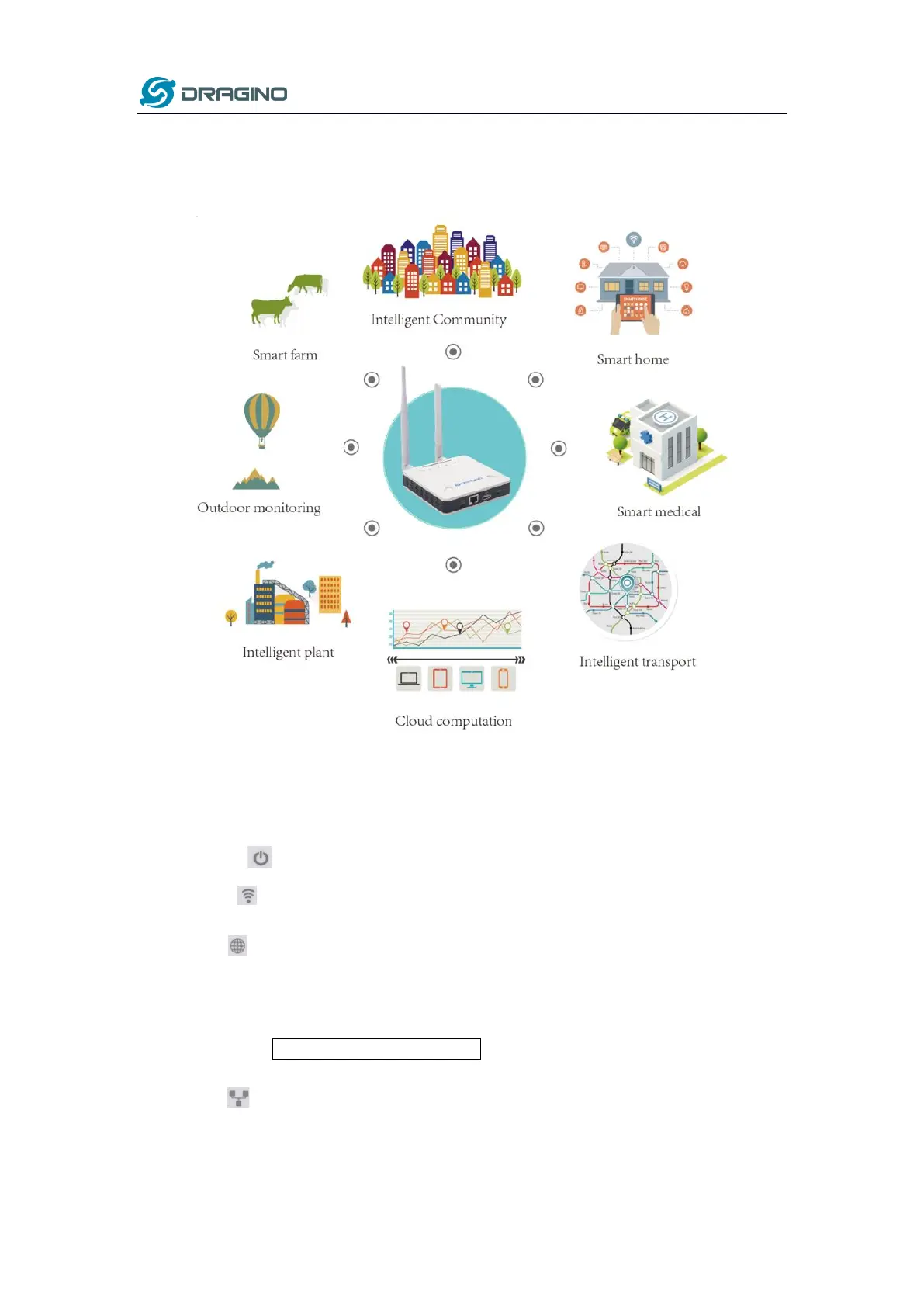

1.5 LPS8N Applications
1.6 LED Indicators
LPS8N has totally four LEDs, They are:
➢ Power LED : This RED LED will be solid on if the device is properly powered.
➢ LoRa LED : This RGB LED will blink GREEN when LoRaWAN module starts or transmit a
packet.
➢ SYS LED :This RGB LED will shows different colors on different state:
✓ SOLID BLUE: Device is alive with LoRaWAN server connection.
✓ BLINKING BLUE: a) Device has internet connection but no LoRaWAN Connection. or b)
Device is in booting stage, in this stage, it will BLINKING BLUE for several seconds and
then with SOLID RED and BLINKING BLUE together
✓ SOLID RED: Device doesn’t have Internet connection.
➢ ETH LED : This LED shows the ETH interface connection status.
To Next Page
