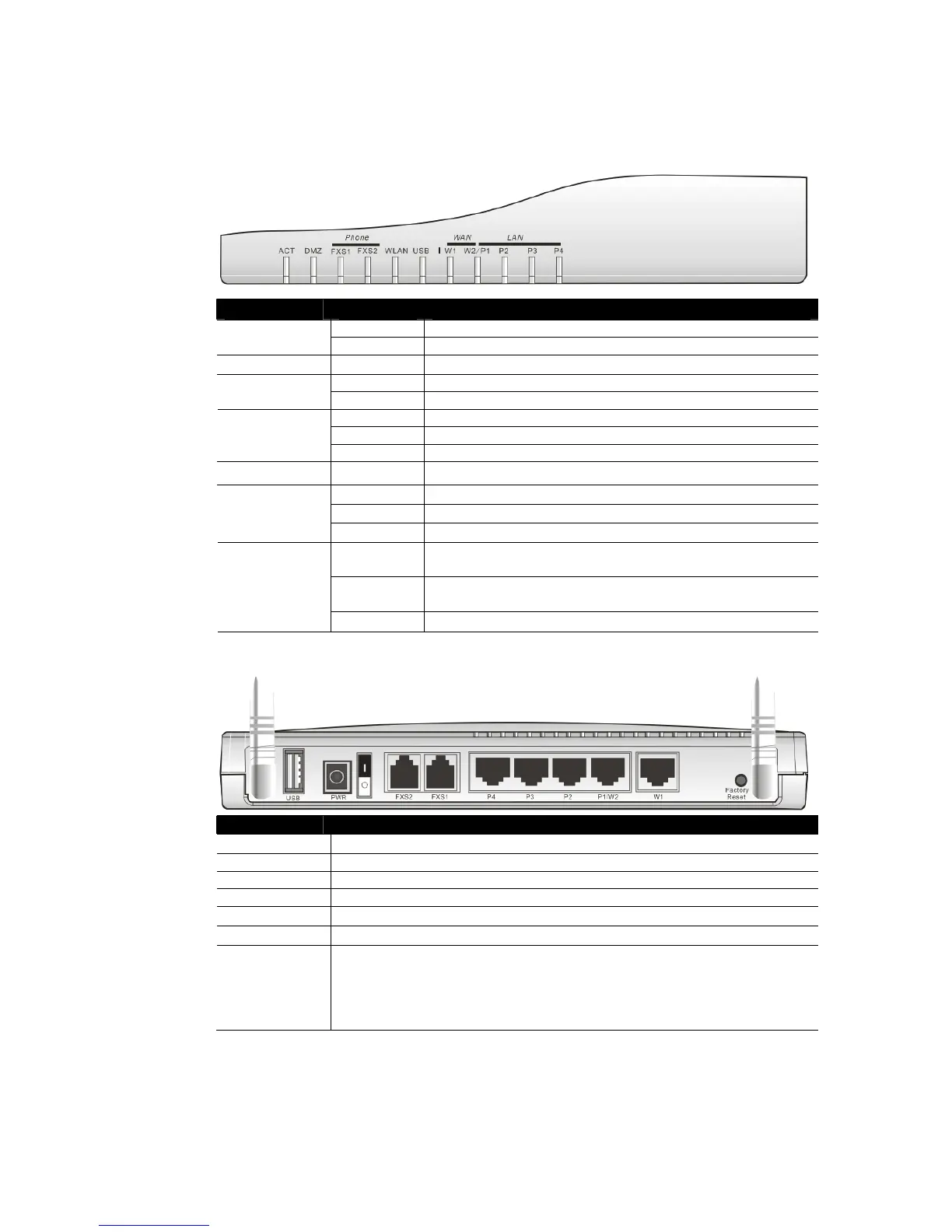

LED Status Explanation
Blinking The router is powered on and running properly. ACT (Activity)
Off The router is powered off.
DMZ On
DMZ Host is specified in certain site.
On The phone is off hook (the handset of phone is hanging). FXS1/FXS2
Blinking A phone call is incoming or on-line.
On Wireless access point is ready.
Blinking Wireless traffic goes through.
WLAN
Off Wireless access point is turned off.
USB * On The USB interface printer or 3G USB modem is ready.
Orange A normal 10Mbps WAN link is ready.
Green A normal 100Mbps WAN link is ready.
WAN(W1-W2)
Blinking Ethernet packets are transmitting.
Orange A normal 10Mbps connection is through its corresponding
port.
Green A normal 100Mbps connection is through its corresponding
port.
LAN (P1, P2,
P3, P4)
Blinking Ethernet packets are transmitting.
C
C
o
o
n
n
n
n
e
e
c
c
t
t
o
o
r
r
E
E
x
x
p
p
l
l
a
a
n
n
a
a
t
t
i
i
o
o
n
n
Interface Description
USB* Connecter for a USB printer or 3G USB modem.
PWR Connecter for a power adapter with 12-15VDC.
ON/OFF Power Switch.
FXS2 & FXS1 Connecters for telephone set and the analog phone with VoIP communication.
LAN P4 – P1 Connecters for local networked devices.
W2/W1 Connecter for accessing Internet with the ADSL,ADSL2/2+ line
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED begins to blink rapidly than
usual, release the button. Then the router will restart with the factory default
configuration.
Note: For the USB port can be used to connect 3G USB modem or USB printer, therefore
the original name (printer) is changed into USB in the future.
