Draytek VigorAP 700 - Windows Vista IP Address Setup

VigorAP 700 User’s Guide
12
2-2-4 Windows Vista IP address setup

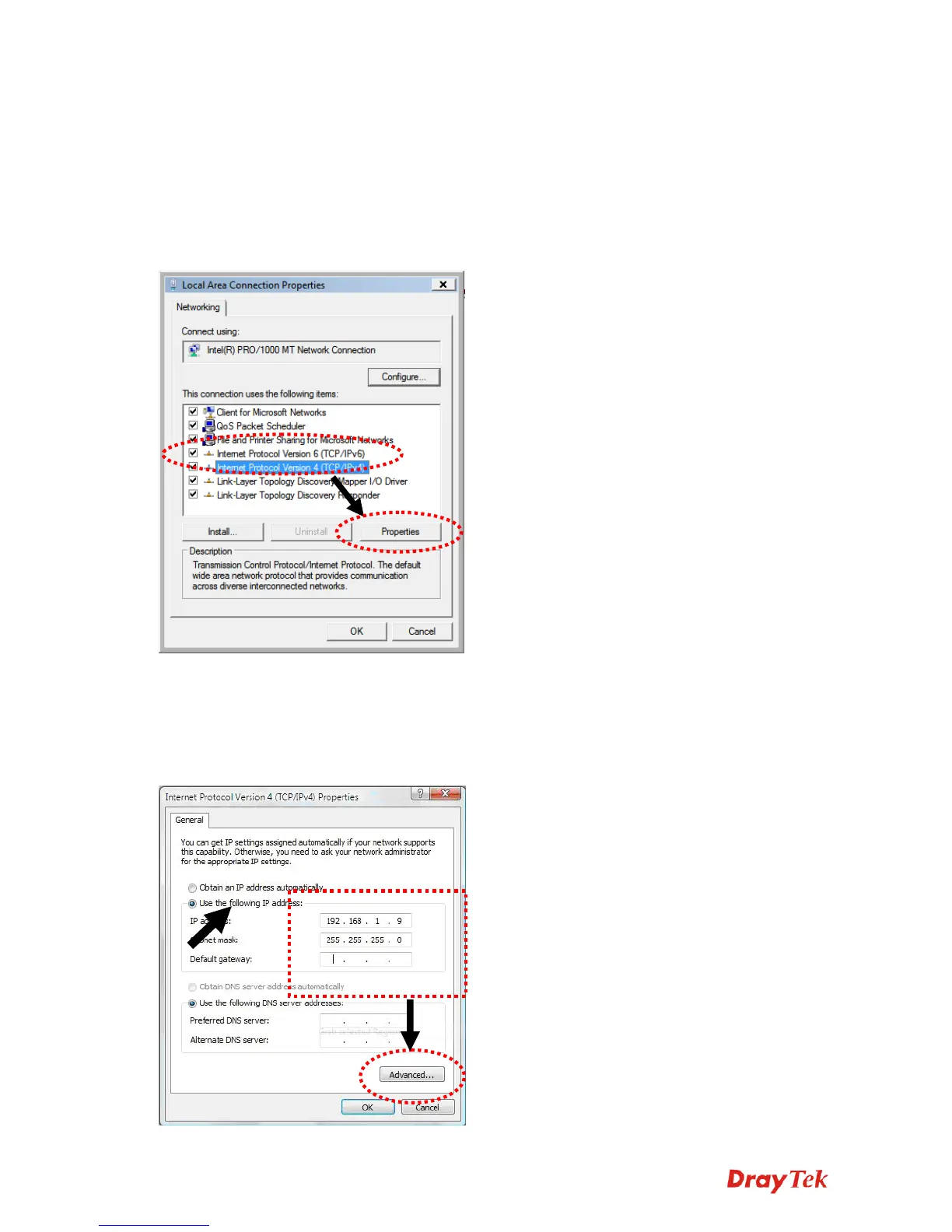

1. Click Start button (it should be located at lower-left corner of your computer), then click
control panel. Click View Network Status and Tasks, then click Manage Network
Connections. Right-click Local Area Netwrok, then select ‘Properties’. Local Area
Connection Properties window will appear, select Internet Protocol Version 4 (TCP / IPv4),
and then click Properties.
2. Select Use the following IP address, then input the following settings in respective field and
click OK when finish:
IP address: 192.168.1.9
Subnet Mask: 255.255.255.0.
