You cannot screw into ceiling tiles as they are weak and not suitable for bearing
loads. Your VigorAP is supplied with mounts (T-Rail brackets) which attach
directly to the metal grid (‘T-Rail’) of your suspended ceiling.

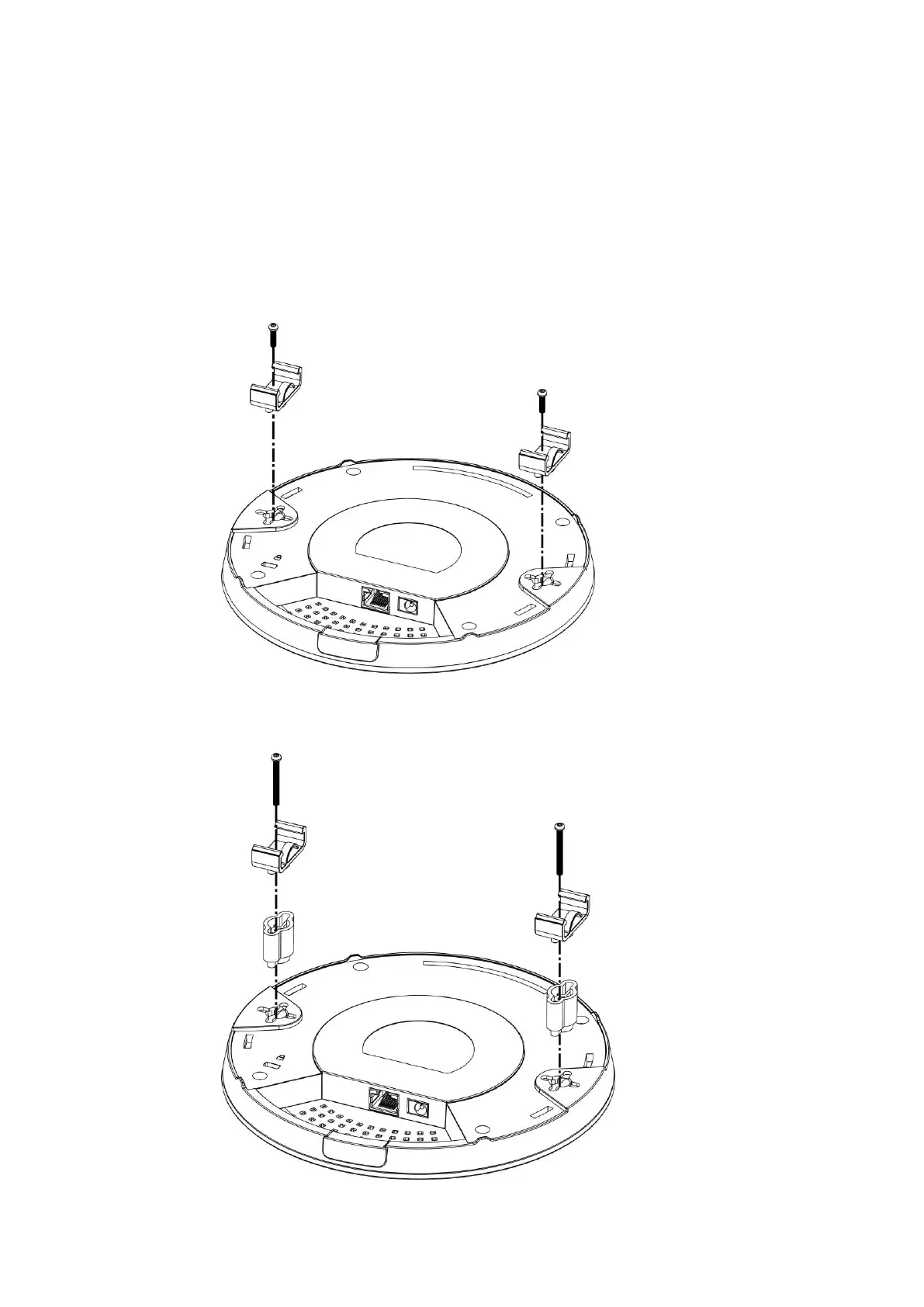

1. Choose one set of T-Rail mounts to suit the size (gauge) of your T-rail.
2. Fix the mounts into the underside of the VigorAP with the supplied
screws:
3. If a larger gap is required between the ceiling and the VigorAP, use the
extension pieces to extend the height of the brackets.
T-Rail Bracket
Extension Piece
T-Rail Bracket
Extension Piece
