You cannot screw int o ceiling t iles as t hey are weak and not suit able f or bearing
loads. Your VigorAP is supplied wit h mount s (T-Rail bracket s) which at t ach
direct ly t o t he met al grid (ā€˜ T-Rail’ ) of your suspended ceiling.
1. Choose one set of T-Rail mount ing kit s from t he bundled package.
2. Put t he T-Rail bracket s on t he holes of t he bot t om side of t he device. Fast en
t hem wit h suit able screws.
3. If a larger gap is required bet ween t he ceiling and t he VigorAP, use t he
ext ension pieces t o ext end t he height of t he bracket s.

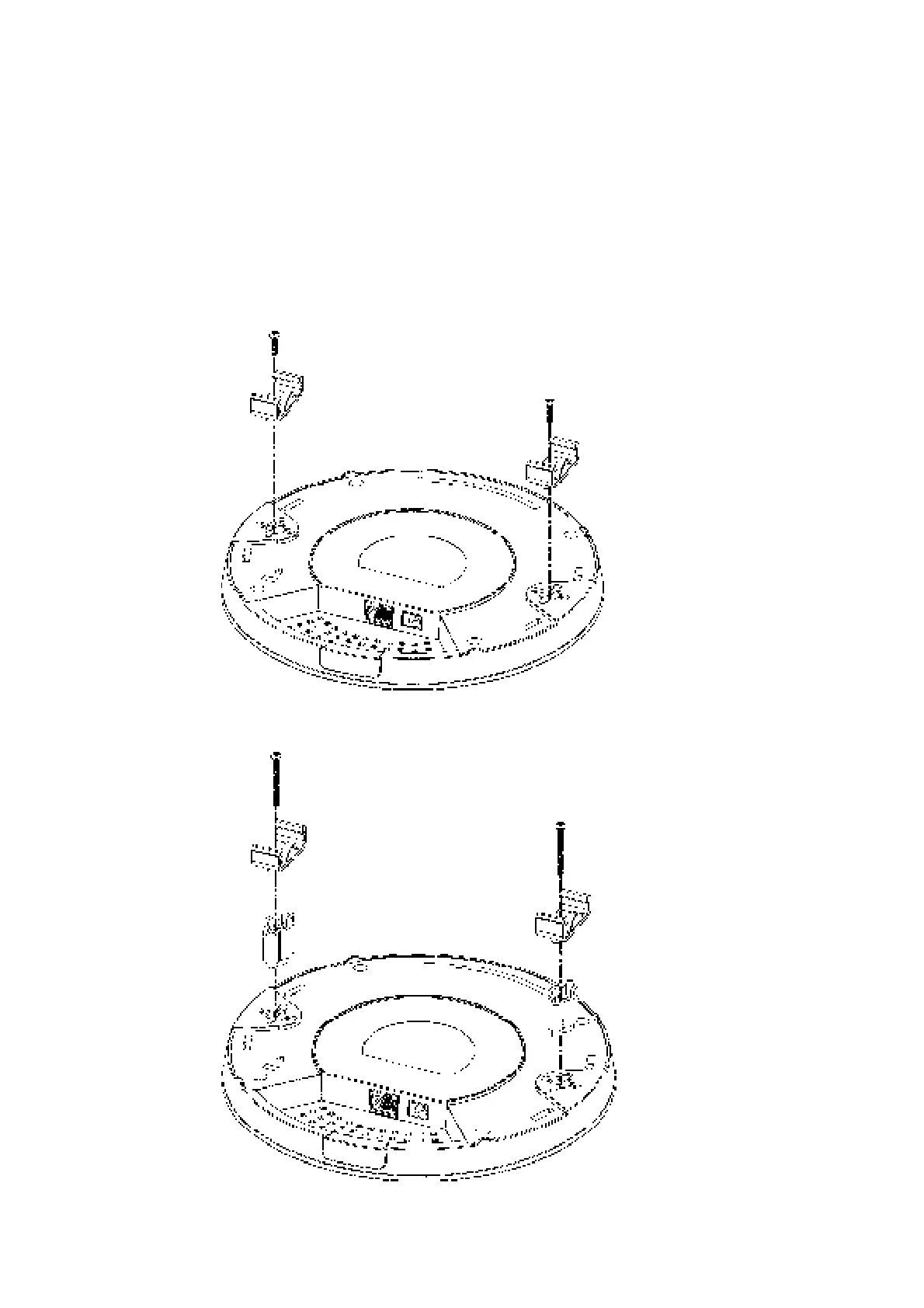

T-Rail Bracket
Ext ension Piece
T-Rail Bracket
Ext ension Piece
