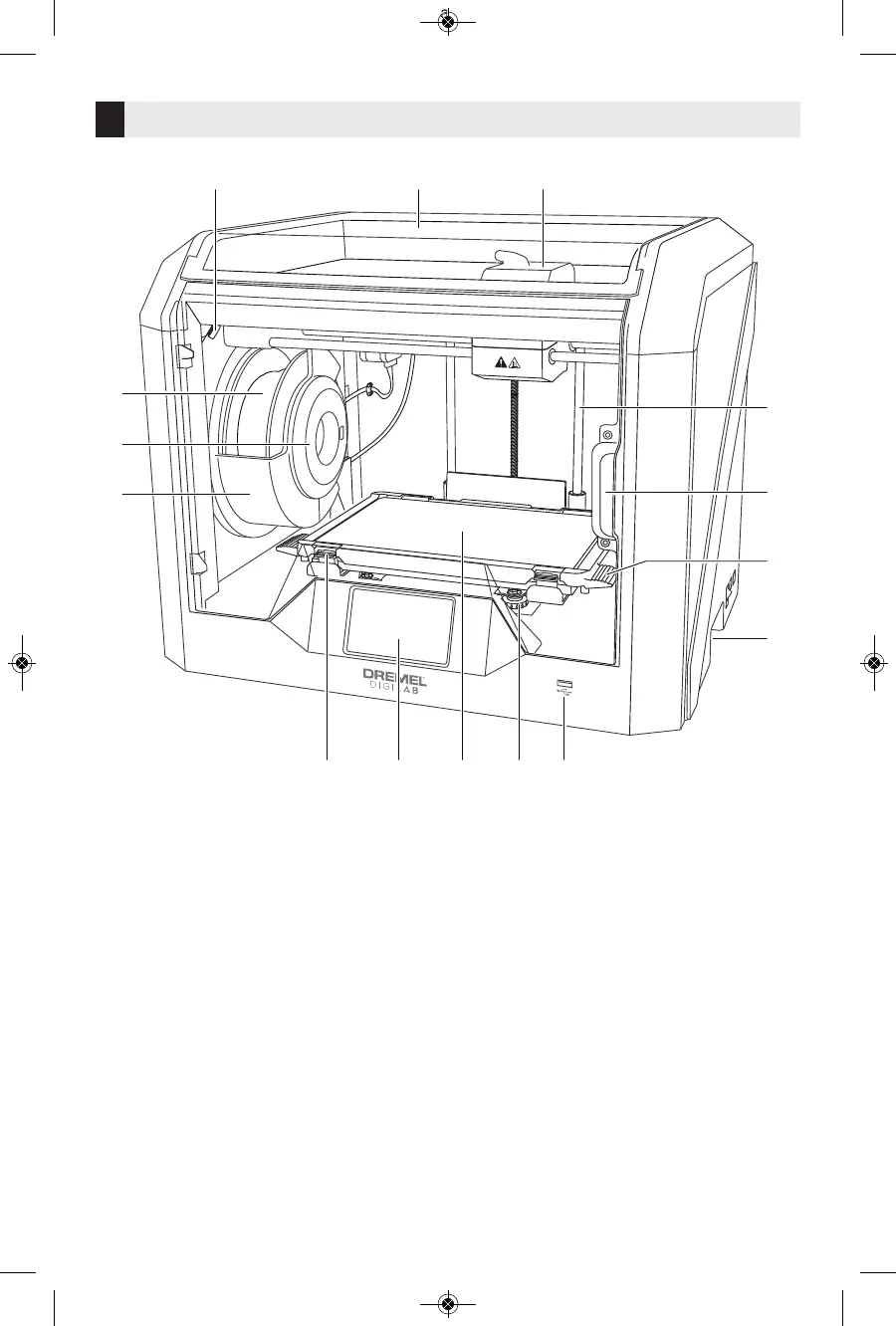

Getting To Know Your 3D45
12
1. Lid
2. Extruder
3. Z-Axis Guide rail
4. Door
5. Build Platform Tabs
6. Gripping Handles
7. USB A Port
8. Leveling Knobs
9. Build Platform
10. Touch Screen
11. Build Platform Clips
12. Filament Spool Holder
13. RFID Reader
14. Filament Spool
15. Camera
16. Y-Axis Guide Rail
17. Stepper motor
18. Filament Guide Tube
19. Extruder Lever
20. Filament Guide Clip
21. Extruder Intake
22. Chamber Fan
(With optional filtration
hook-up)
23. Ribbon Cable
24. X-Axis Guide Rail
25. Leveling Sensor
26. Extruder Tip
27. Power Switch
28. USB B Port
29. Ethernet Port
30. Nameplate
31. Power Input
1
4
10
7
14
9
2
12
6
11
8
3
5
13
15
