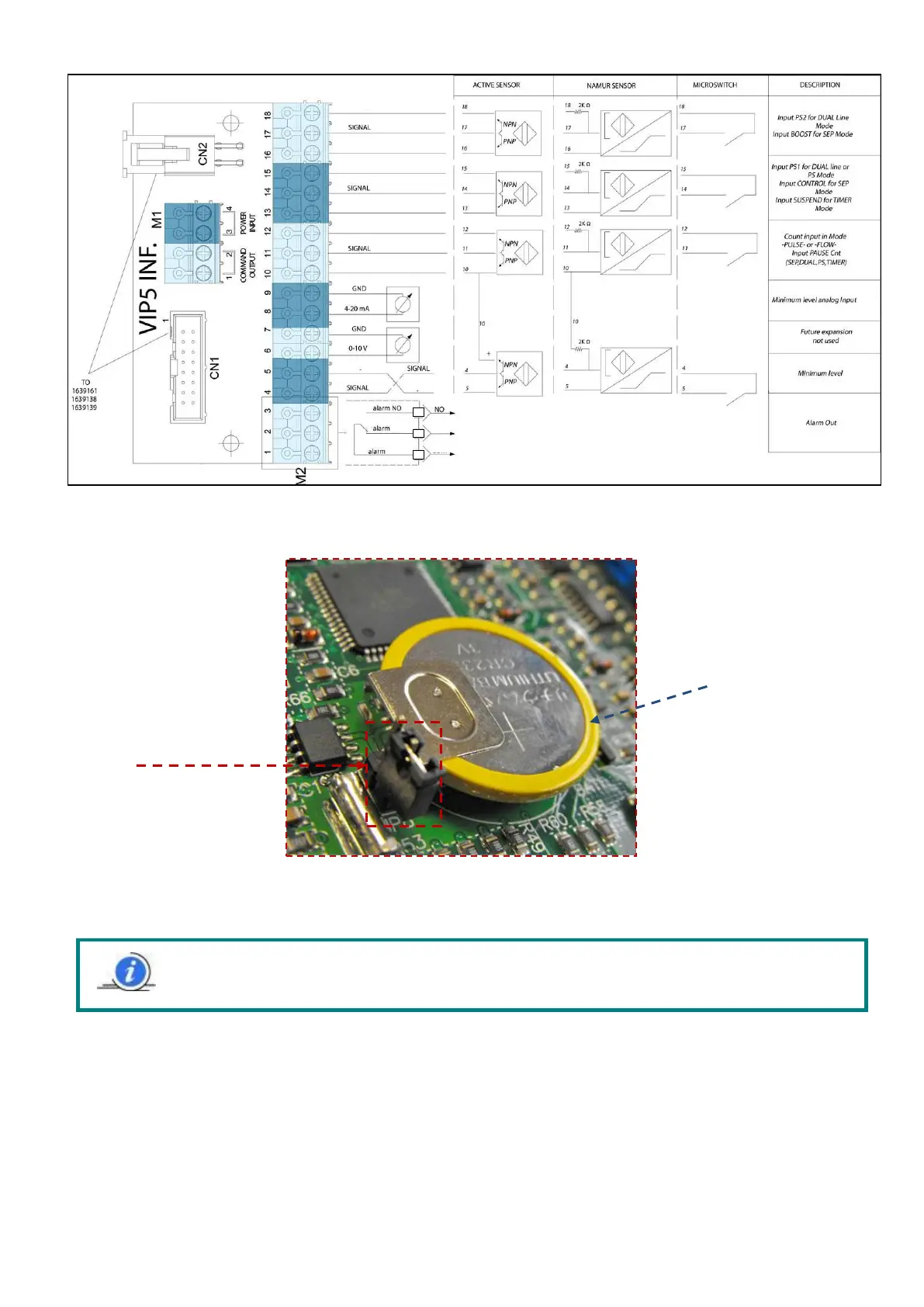

5.2 WIRING EXAMPLES
5.3 ACTIVATING THE BATTERY FOR REAL TIME CLOCK FUNCTIONS
By inserting the Jumper into the bridging pins, the battery function is activated and this allows the VIP5 to operate with
the Date/time and status save function when the power is removed.
BATTERY
JUMPER:
Bridge pins to activate
battery
-
-
-
+
+
+
COM
NC
1
2
3
COM
NC
Note: Every time the battery jumper is removed and reinserted causes the DATE/TIME function to be
set to zero. Therefore it is recommended that after inserting the battery jumper, the date and time is
set.
