16/29
Lubrication Phase can be repeated

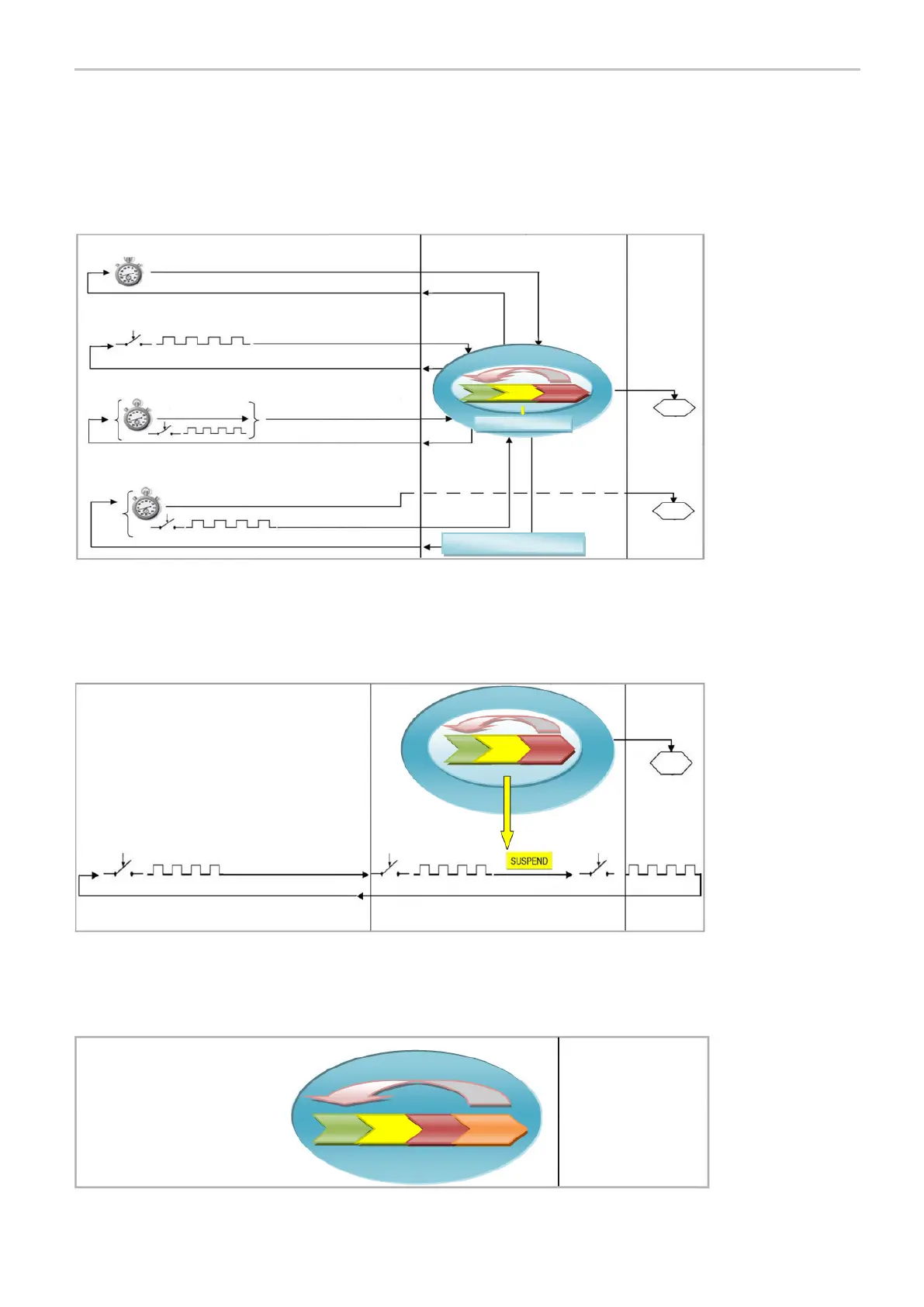

7. OPERATING MODE
VIP5 has three different operating modes which are determined during the setup stage described previously.
These are: CYCLE, PULSE and FLOW.
7.1 CYCLE Mode
In Cycle mode a cycle sensor determines the completion of the LUBRICATION PHASE. If using timer setting, the Lubrication
Cycle will complete when the timer expire. The Standby phase is determined by a timer or by an external input counter.
7.2 PULSE Mode
In Pulse mode, the duration of the Standby Phase and the Lubrication Phase are both determined by an external counter.
The correct operation of the Lubrication Cycle can be monitored using a cycle sensor.
7.3 FLOW Mode
Using this mode allows the VIP5 to be used as a simple flow monitoring and display device.
Example 1) Standby and Lubrication determined by ON & OFF Timer
Example 2) Standby determined by a counter
Example 3) Standby determined by a counter and timer
combination.
Example 4) Standby determined by a counter. Alarm signal given if the
external counter signals not detected within a set time.
Sul display del vip viene visualizzata la
quantità di flusso, rilevata mediante un
ingresso
Flow control
Lubrificazione
Example:
Standby Phase determined by the Pause Counter, and
lubrication Phase determined by Cycle Counter.
[CYCLE Cnt >1 PAUSE Cnt > 0 ]
The Lubrication Phase is Suspended if no external
signals are recieved within a time specified by the
suspend Timer.
[SUSPEND T>0 ]
Flow Out of Range
Low Level, or
Thermal trip.
The display shows the current Flow rate
being detected in the system.
It is also possible to scroll through menus
to see totalizing flow counter
Flow control
Lubrificazione
