DROPSA VIP5 - Page 4

4/29

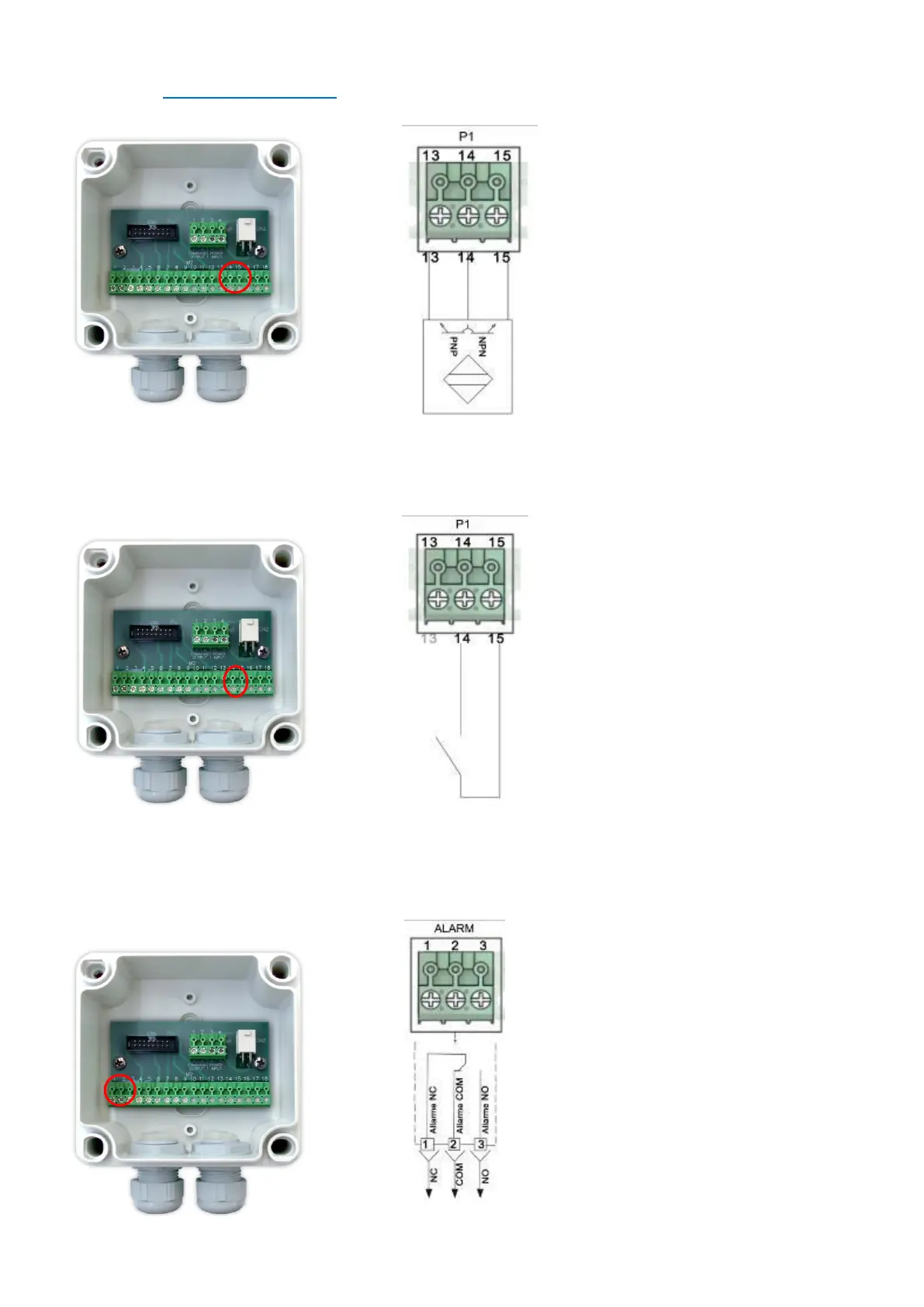

STEP 4A
If using a Progressive System - connect the Dropsa Ultrasensor/end of cycle switch to pins 13/14/15
on connector strip “M2”
STEP 4B
If using a 33V Injector System– connect the end of cycle pressure switch to pins 14 and 15 on
connector strip “M2”
For any other system, please refer to the connection diagrams in section 5
STEP 5
– Connect the remote alarm signal relay to your host machine to pins 1/2/3 on connector strip
“M2”
