DRTECH EVS3643W - Evs-Wpcs

DRT-MAN-093
36/74

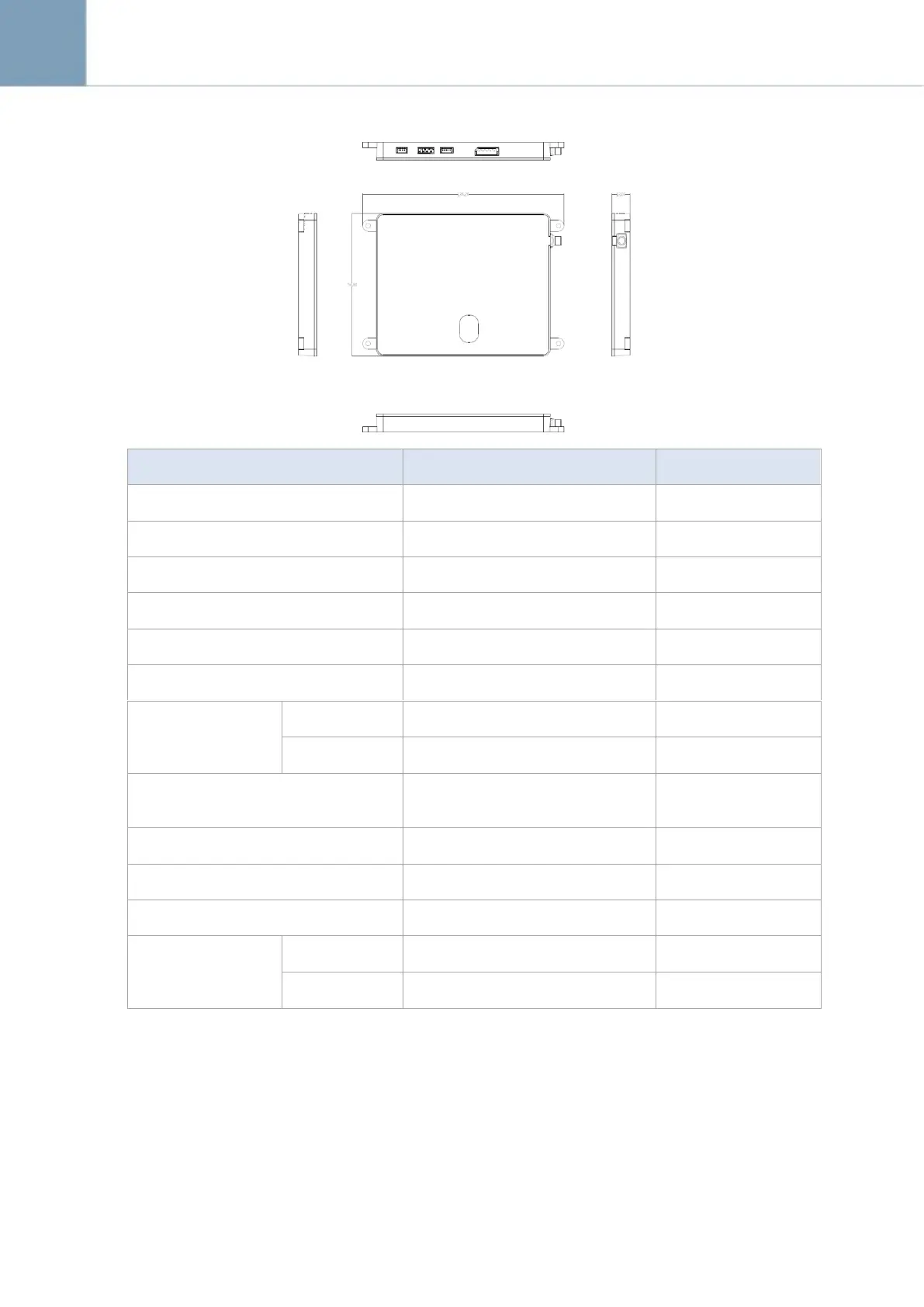

2.1.4 EVS-WPCS
Item
Description
Note
Model
EVS-WPCS
Dimensions (W x H x D)
115.8 mm x 94.8 mm x 12 mm
Weight
0.15 kg
Charging Transceiver IC
Freescale MWTC1012
Medium Power
Charging Receiver IC
Freescale MWPR1516
Medium Power
WPC Qi Specification
WPC MP-A2 Standard.
Rx, Tx Distance
Coil to Coil
Typ. 4mm(±1mm)
Max. 8mm
Center to
Center
Typ. 4mm
Max. 8mm
Input Voltage
DC 12V (±10%) / over 3A or
Adaptor(XP Power / AHM85PS12
/ DC 12V, 7.08A)
Tx Module Input
Output Power
DC 10V /1.4A (14W)
Rx Module Output
Standby Current/Power
Typ. 27.22mA / 326.6mW
Max Power Efficiency
83%
Ambient
Temperature
Storage
Temperature
-20℃ ~ 85℃
Operating
Temperature
0℃ ~ 35℃
