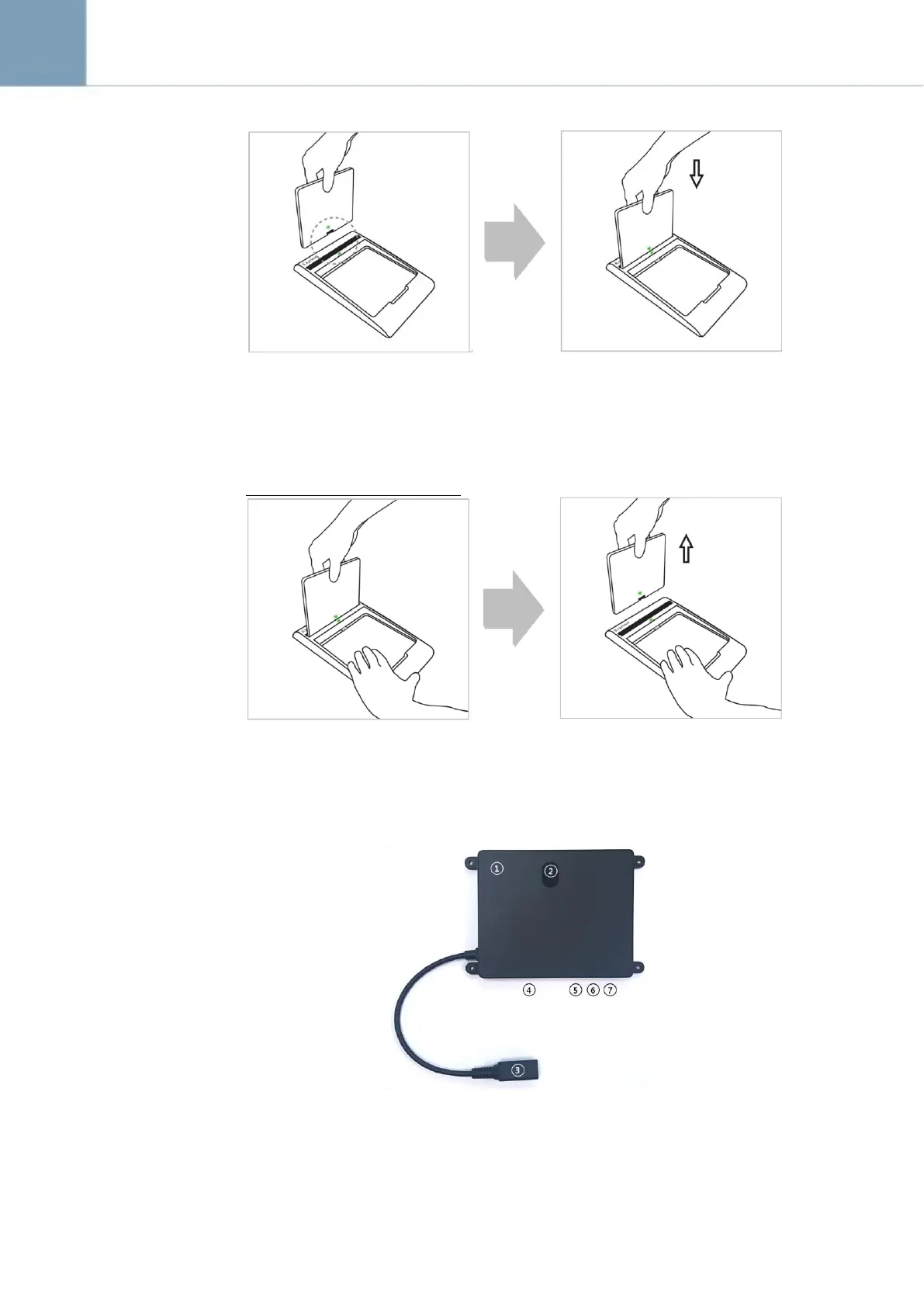

Vertical Direction (Attachment)
 Stand the battery pack upright to reveal the battery charged connector.
 Check the yellow-green arrows on the charger and bottom of the battery
pack.
 Align the left and right side of battery pack to the charger.
 Push down the battery pack.
Vertical Direction (Detachment)
 Grab the battery pack.
 2) Pull out the battery pack from the charger while holding the charger
by the other hand.
3.1.1.7 EVS-WPCS Components
① EVS-WPCS Base
② RDA Window: IRDA communication window
