3.1 System Configuration
The Product is used in system configuration as illustrated below.

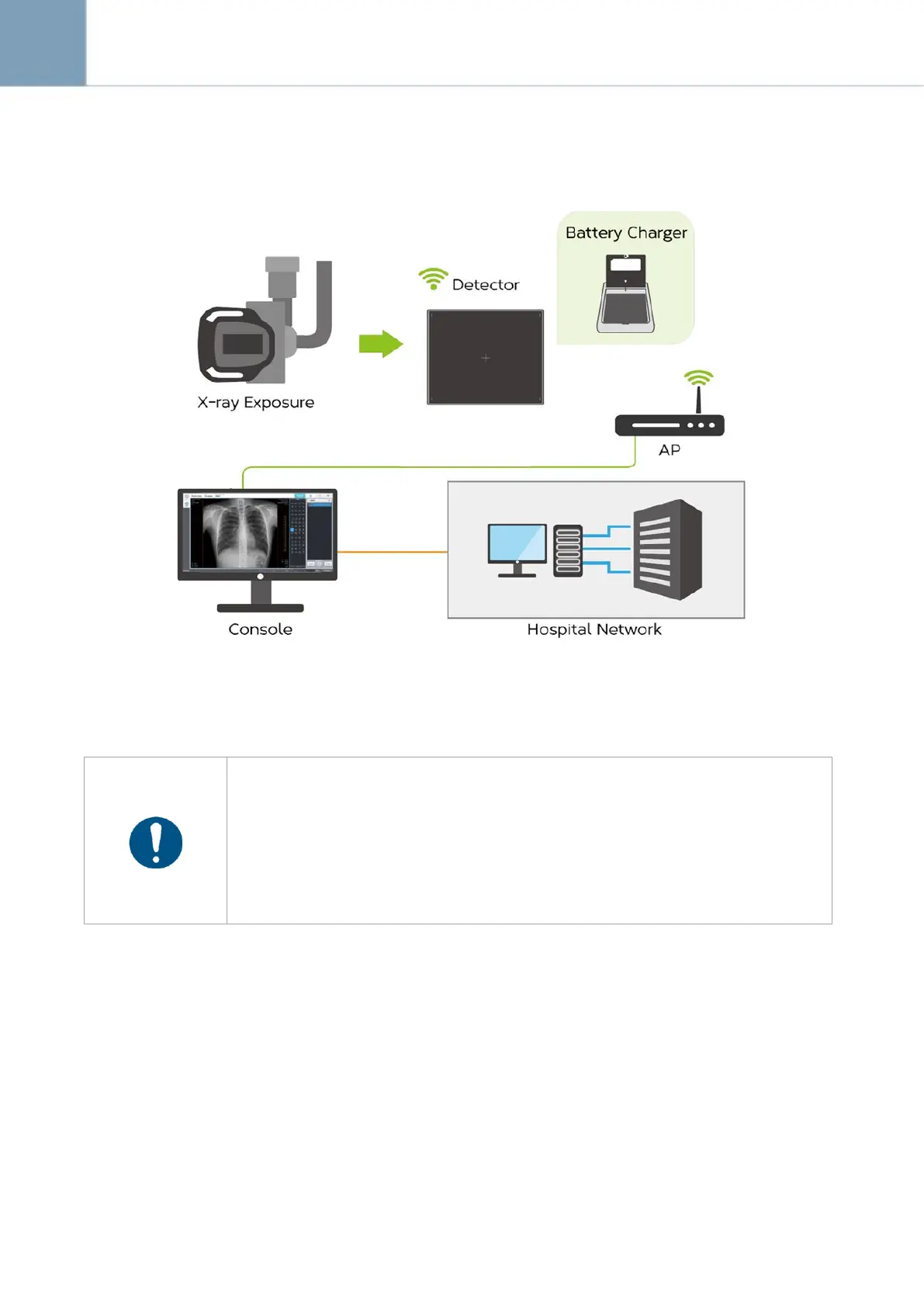

Figure 5. EVS W Series Single Detector Configuration
 Do not connect other products to the remaining Lan port on the Ethernet
Switching Hub. It may affect the image transmission of the detector.
 The following technical specifications represent recommended for the
Ethernet Switching Hub.
- Supports 1000BASE-T or 1000BASE-TX
- Supports full-duplex
- Supports IEEE 802.3ab
- More than 4 LAN Port Ethernet Hub
