3.8.1.1 Recommendation of setting AED Sensing Area
Standard Environment

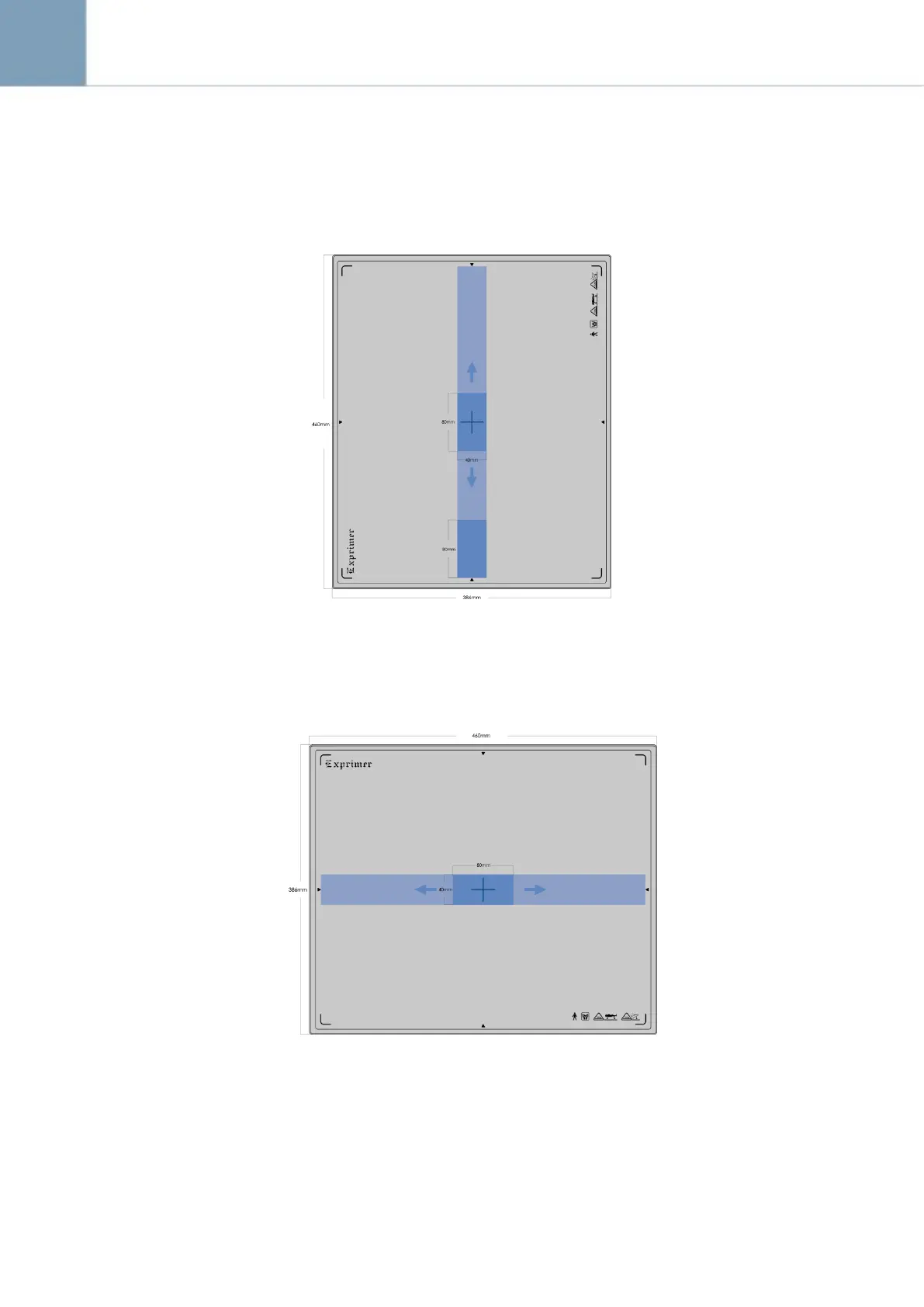

We suggest the collimated area on detector is wider than 4cm X 8cm, and keep along the vertical direction as
shown in figure 15.
Figure 15. Stand Environment with AED Mode
Table Environment
We suggest the collimated area on detector is wider than 4cm X 8cm, and keep along the horizontal direction
as shown in figure 16.
Figure 16. Stand Environment with AED Mode
