③ Power Connection Cable
④ Debug Connector: For debugging
⑤ ID Switch: Device ID setting dip switch
⑥ Indicate LED Connector: For cradle (Optional)
⑦ Indicate LED Connector: For system (Optional)
3.1.4 Additional Function
1. The detector detects actual amount of X-rays without any connection to the X-
ray generator, and then performs image acquiring to the extent of image
acquisition time and transits the image data.
2. No signal used (No need of connector interface cable)
• You can use AED mode without connecting the generator with USB SW Box
physically.
3.1.4.1 AED Mode

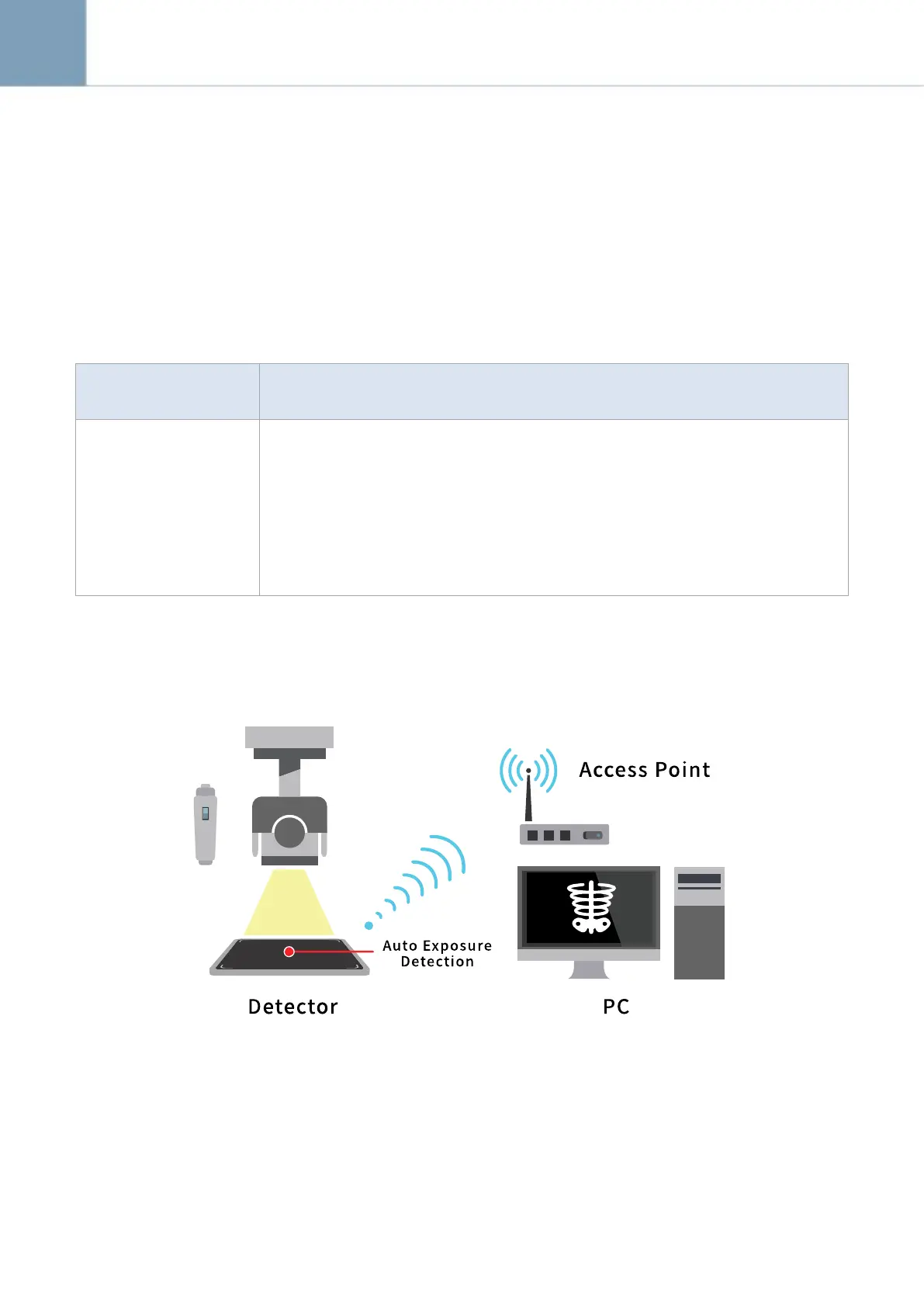

AED Mode is available for acquiring images without any connection to X-ray generator.
Generator interface cable is not required.
