18 | PACE Indicators Instruction Manual–English
Chapter 3. Operation

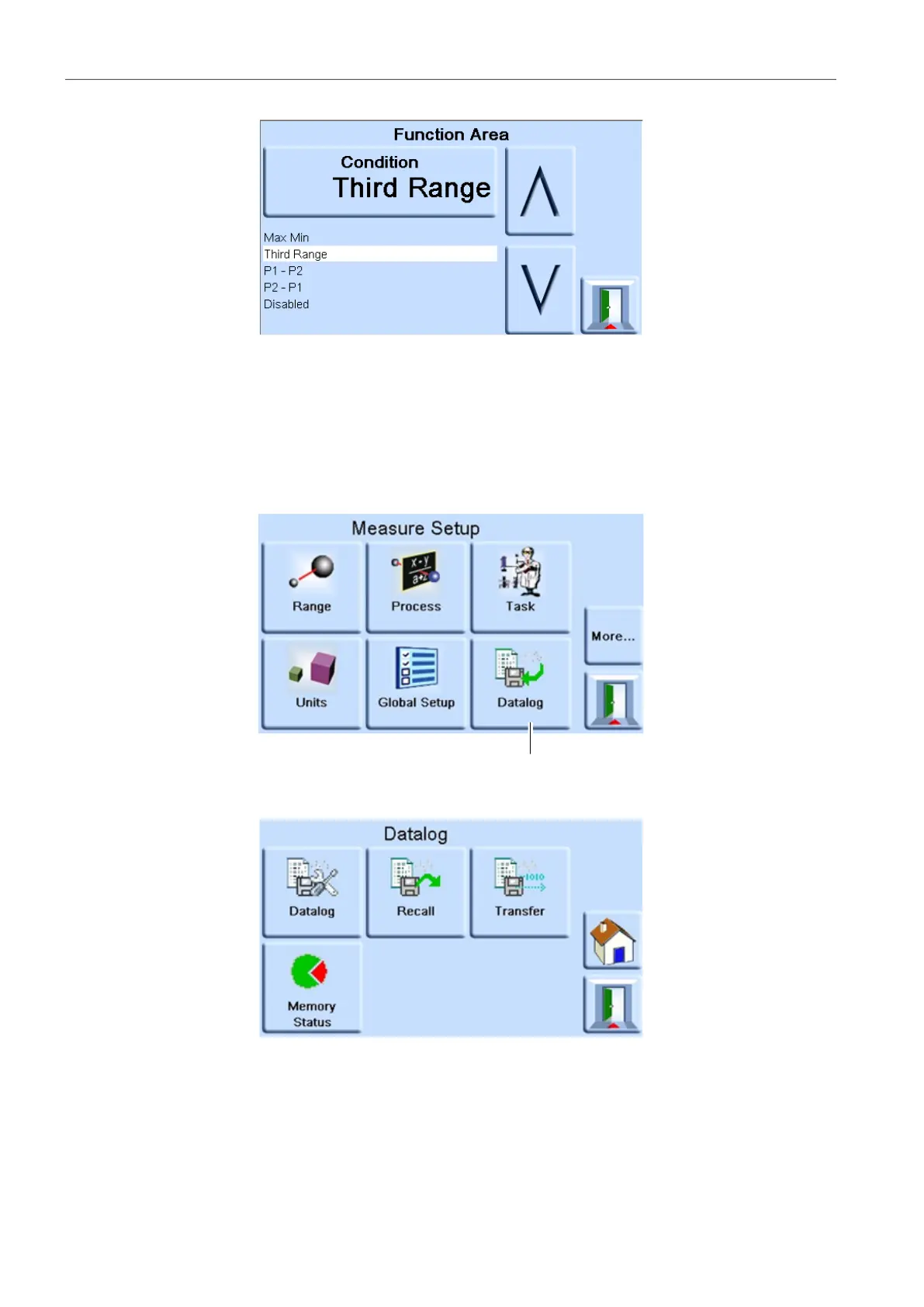

Selecting P1-P2 condition for display in the lower function area of the display allows the display
of the subtraction of the middle status area displayed pressure P2 from upper most displayed
pressure P1, or selecting P2-P1 condition for display in the lower function area of the display
allows the display of the subtraction of the upper most displayed pressure P1 from the middle
status area displayed pressure P2.
3.4 Data Logging
The “Datalog” icon (1) is present when a memory card is fitted:
1
