Druck PACE1000 - Analog Output Option

Copyright 2010 Baker Hughes Company.
54 | PACE Indicators Instruction Manual–English
Chapter 6. Reference

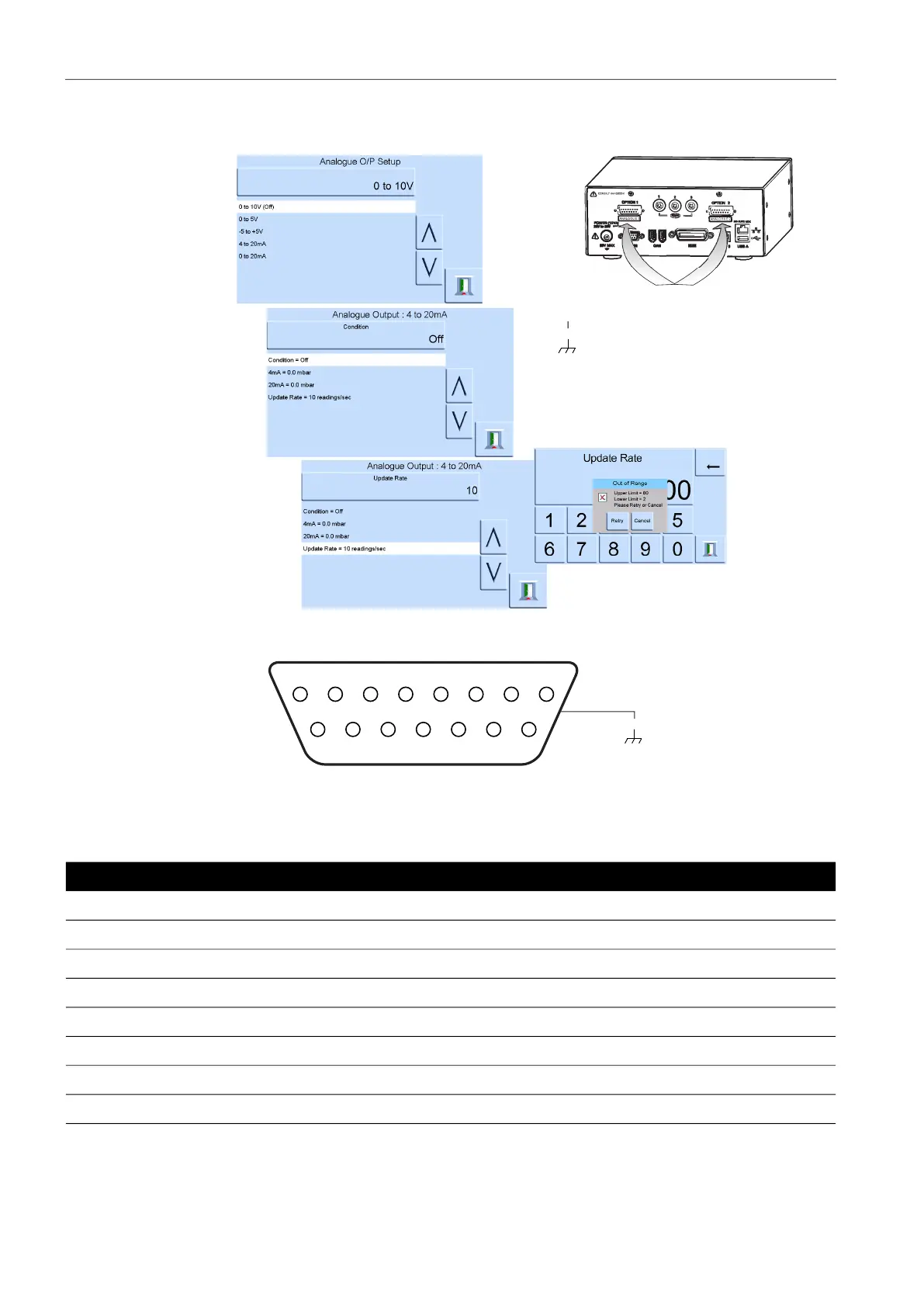

6.9.2 Analog Output Option
The Analog Output option provides an analog output that is proportional to measured pressure.
Table 6-5: Pin Number and Function
Pin Number Function Pin Number Function
1 (not used) 9 (not used)
2 (not used) 10 0 V return
3 (not used) 11 +24 V dc output, 100 mA max
4 (not used) 12 Switch In 1
5 (not used) 13 Switch In 2
6 (not used) 14 Analog output +
7 (not used) 15 Analog output -
8 (not used)
Selects Analogue
Output Range
On/Off
Update rate of Analogue Output
option from the control module.
Analogue Output Bandwidth = 0.5 x Update Rate (Hz)
30V maximum with respect to
chassis.
Rated output = 24V
30V max
To maintain PACE product safety, external circuits
connected to the instrument must meet Safety
Extra-Low Voltage (SELV) requirements.
15-way female D connector
Front view of Analogue
Option PCB connector
123
4
5
6
7
8
15 14 13 12 11 10 9
30V max
22V to 26V
ANALOGUE 1
ANALOGUE 2
15
CONSULT HANDBOOK
analogue connections
