DSC TL280LE(R) User Manual

3.
To electrically connect the communicator to the panel, perform the following steps (See Figure 3):
a.
Disconnect both AC power and battery connections from the panel, and disconnect telephone line.
b.
Confirm that the SIM card is inserted in the holder and locked.
4.
Install Network Cable (TLXXXX models only). Route the CAT 5 Ethernet cable through back of the panel and plug it
into the communicator’s RJ45 jack.
NOTE: Before leaving the premises the Ethernet communication lines mustfirst be connected to an approved (acceptable
to local authorities) type NID. All wiring shall be performed according to the local electrical codes.

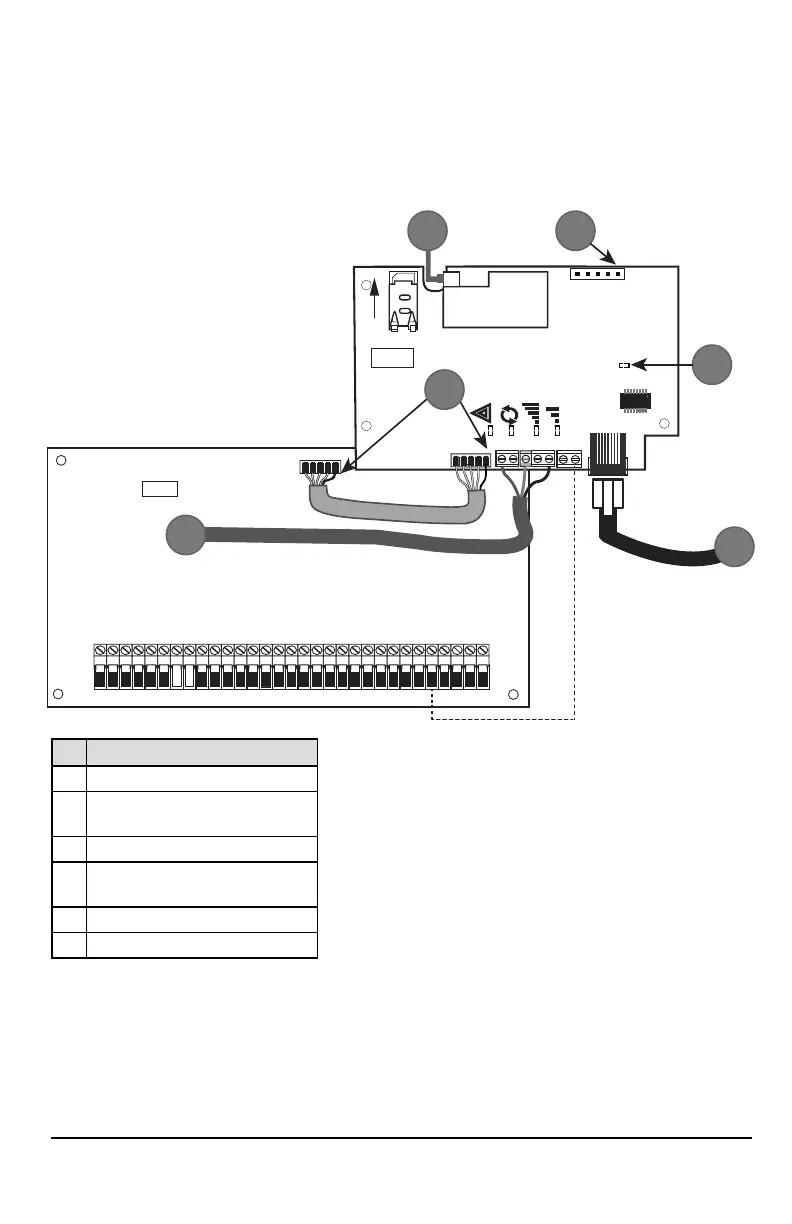

Figure 3: Communicator Wiring Diagram
AUDIO/DEFAULT
DSC
UA685
PC-LINK
PCLINK_2
COM
TL2803G(R)E
3G2080(R)E
TL280(R)E
TL280LE(R)
LE2080(R)
AC AC
Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8
AUX+
BELL +
PGM1 PGM3
RING T-1
HS2016/2032/2064/2128
3G/LTE Radio
UA621
L
o
c
k
1
RJ-45
GRN YEL
TIP R-1
BLK
RED AUX -
BELL - EGND
TX+
GND
TX-
RX+ RX-
SHLD
SIM
PGM2 PGM4
4
1 2
3
5
6
Item Description
1 To External Antenna
2
AUDIO/ DEFAULT
Jumper pins 4 and 5 to reset
3 Network Link - Yellow
4
From NID use only CAT5 supervised
maximum cable length 100m (328 feet)
5 RS-232 to third party device
6 RED Wire
Input Ratings:
l +10.8V ~ +12.5VDC
l 90mA 3G2080(R)E/120mA TL2803G(R)E standby
l
90mA 3G2080(R)E/ LE2080(R)
l
120mA TL2803G(R)E/TL280LE(R)
l 100mA TL280(R)E
l 400mA alarm
DSC Panel minimum power requirements:
l 16.5 VAC 40 VA transformer
l 12 VDC 7Ah battery
5.
Install the RS-232 connections (R models only). If using the communicator with a 3rd party device, wire the con-
nections as per the table below:
9
