DTS SLICE MICRO - Stack Extender; End-Of-Chain (EOC) Terminal

SLICE User’s Manual July 2017
support.dtsweb.com 11 Version 1.0i

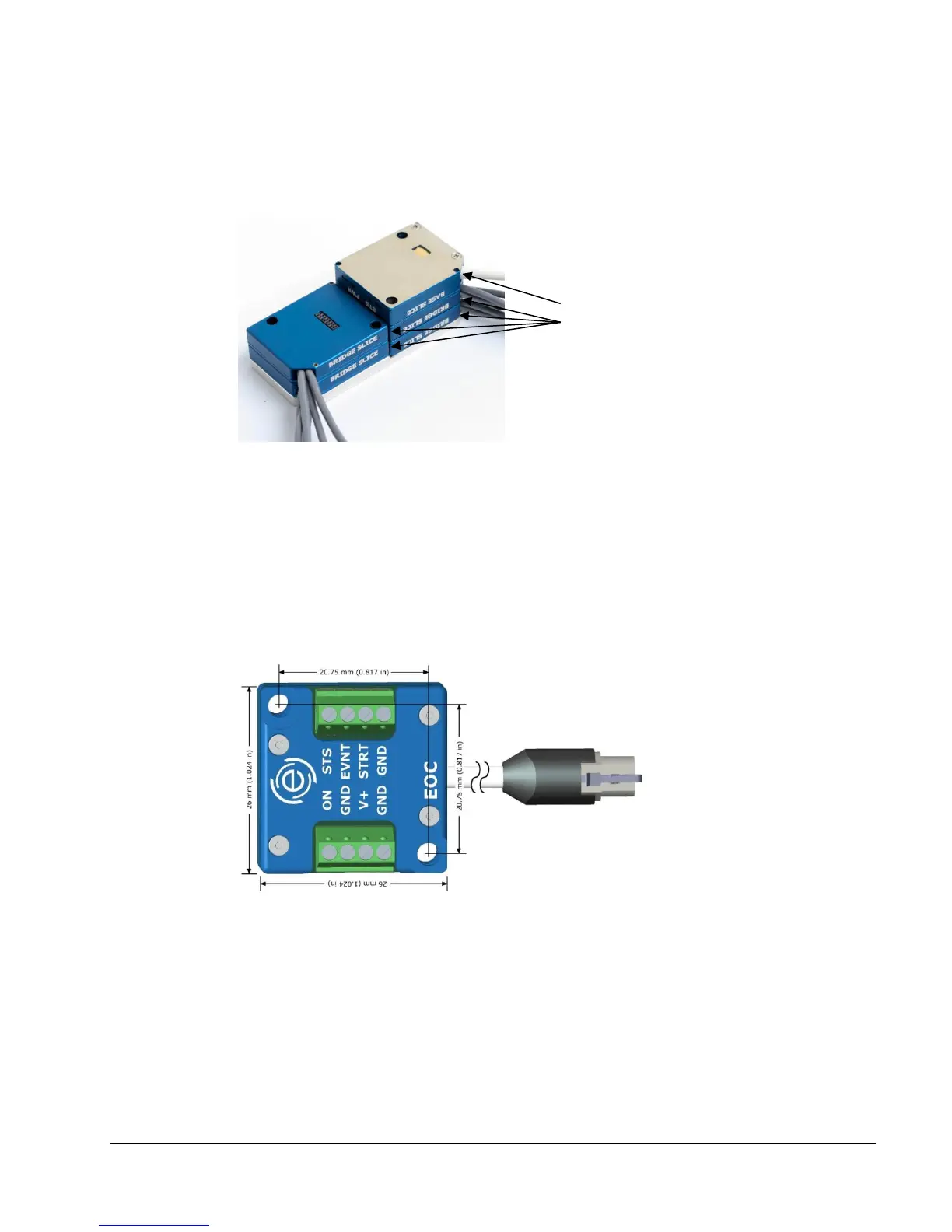

2.3.7. Stack Extender
The Stack Extender is only available for the SLICE NANO package. The Stack
Extender allows the user to create a flatter, longer package.
2.3.8. End-of-Chain (EOC) Terminal
See Appendix B for detailed specifications.
The EOC Terminal provides the easiest method to attach a battery, trigger signal
and status lamp to the SLICE system. It is ruggedized for high shock use.
Maximum channels:
1 chain x 2 Stacks x 8 Bridge SLICEs x 3 chan/Bridge = 48 channels
Connections:
• 2 SLICE Stack chain
• 9 to 15 VDC input power
• ON signal
• Status output, start record input and event input signals
Stack Extender
• Example: 12 channel system
• 1 Base+ SLICE
• 4 Bridge SLICEs
To DN port on Base+
SLICE MICRO or NANO
