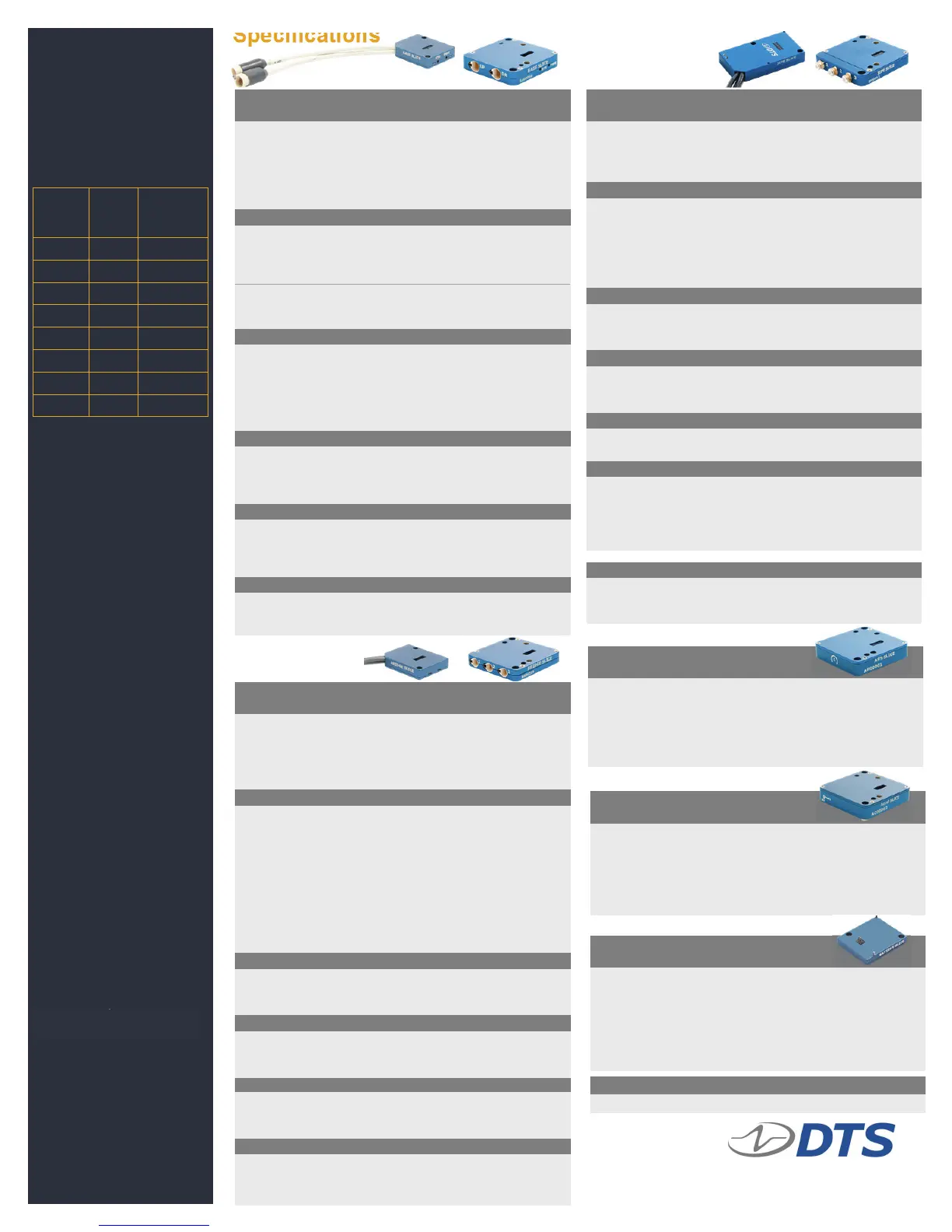

Specifications
Michigan, United States
United Kingdom
France
Japan
Asia Pacific
24/7 Worldwide Tech Support
ISO 17025 (A2LA) Calibration
Onsite Calibration & Training
Application Consulting
Software Integration
OEM/Embedded Applications
SERVICES
www.dtsweb.com
Specifications subject to change without notice.
© Diversified Technical Systems, Inc.
BASE+ SLICE (NANO & MICRO)
One (1) required per stack – system microprocessor & memory
Size: MICRO 42 x 42 x 8 mm (1.65 x 1.65 x 0.32”)
NANO 26 x 31 x 6.5 mm (1.02 x 1.22 x 0.26”)
Mass: MICRO 28 g (0.99 oz), NANO 14.2 g (0.50 oz)
Connectors: Omnetics, circular locking, 12-pin
MICRO integrated, NANO cable assembly
Compatibility: BASE+ works will all legacy NANO & MICRO
ENVIRONMENTAL
Military Standard: MIL-STD-810E
Operating Temp: -40° to 60°C (-40° to 140°F) (Method 501,502)
Altitude: -40°C
@
15240 m (50000 ft ) (Method 500)
Vibration (Random): Exceeds 810-E vibration (Method 514)
Humidity: 95% RH non-condensing
Shock: 500 g, 4 msec half sine
5000 g option (SLICE NANO only)
DATA RECORDING
Modes: Recorder, circular buffer, multiple event, arm on
power-up, and other modes available
Memory: 16 GB non-volatile flash per SLICE stack
Sample Rate: Minimum 10 sps per channel
<See Chart for Max: Up to 200k sps on ≤24 channels per stack
Up to 500k sps on ≤3 channels per stack
TRIGGERING
Hardware Trigger: Contact closure & TTL logic-level (active low)
Level Trigger: Positive and/or negative level on any active
sensor channel (first level crossing of any
programmed sensor triggers system)
POWER
Supply Voltage: 9-15 VDC; >11 VDC when using Battery SLICE
(NANO)
Current (Maximum): 70 mA @ 12 V plus sensor input SLICEs
Power Control: Remote power control input for on/off
Protection: Reverse current, ESD
SOFTWARE
Control: SLICEWare, DataPRO, API
Operating Systems: Windows
®
Vista/7/8 (32/64-bit)
Communication: USB; Ethernet available via SLICE Distributor
ACCEL SLICE (MICRO only)
Built-in triaxial accelerometer
Size: MICRO 42 x 42 x 9 mm (1.65 x 1.65 x 0.35”)
Mass: 30 g (1.06 oz)
Number of Channels: 3 orthogonal axes
Range Options: ±25, ±100, ±500 g
Bandwidth: 0–400 Hz (±25, ±100 g), 0–5,000 Hz (±500 g)
Current (Maximum): 65 mA (power supplied via BASE SLICE)
BRIDGE SLICE (NANO & MICRO)
Three (3) inputs for external sensors
Size: MICRO 42 x 42 x 7 mm (1.65 x 1.65 x 0.32”)
NANO 26 x 31 x 5.5 mm (1.02 x 1.22 x 0.22”)
Mass: MICRO 25 g (0.88 oz), NANO 13.8 g (0.49 oz)
Connectors: Omnetics, circular locking; 3 single-channel
7-pin or 1 three-channel 16-pin
SIGNAL CONDITIONING
Number of Channels: 3 differential, programmable
Input Range: ±2.4 V (2.5 V center)
Bandwidth: DC to 40 kHz, programmable
Gain Range: 1.0-1280, programmable
Auto Offset Range: 100% of effective input range
Bridge Support: Software controlled half-bridge completion
Shunt Check: Emulation method, automatically calculated
Sensor ID: Maxim Integrated (Dallas) silicon serial number
Linearity (typical): 0.2% (gain 1 to 320), 0.5% (gain >320)
Accuracy: 0.5% including reference uncertainty
ANALOG-TO-DIGITAL CONVERSION
Type: 16-bit SAR (Successive Approximation
Register) ADC, one per channel, simultaneous
sample of all channels.
EXCITATION
Method: Independent regulator for each channel
Voltage: 5.0 V, up to 20 mA, short circuit safe
Power Management: Shutdown when not armed or recording
POWER
Voltage: Supplied via BASE SLICE
Current (Maximum): 110 mA with 350 ohm bridges all channels
Power varies significantly with sensor load
ANTI-ALIAS FILTER
Fixed Low Pass: 4-pole Butterworth, standard knee frequency at 40 kHz
Adjustable Low Pass: 5-pole Butterworth set by software from 1 Hz to 40 kHz
Response: Meets SAE J211/ISO6487 response corridors
IEPE SLICE (NANO & MICRO)
Three (3) inputs for external sensors
Size: MICRO 42 x 42 x 7 mm (1.65 x 1.65 x 0.28”)
NANO 26 x 46 x 7 mm (1.02 x 1.81 x 0.28”)
Mass: MICRO 28 g (0.99 oz), NANO 23 g (0.81 oz)
Connectors: 10-32 coaxial (Microdot-compatible)
SIGNAL CONDITIONING
Number of Channels: 3
Input Range: 0.5-23.5 V (12 V center)
Bandwidth: DC to 40 kHz, programmable
Gain Options: 1 or 10, user programmable
Auto Offset Range: 100% of effective input range at gain of 1
Sensor ID: Works with EID or “TEDS” equipped sensors
ANALOG-TO-DIGITAL CONVERSION
Type: 16-bit SAR (Successive Approximation
Register) ADC, one per channel, simultaneous
sample of all channels.
EXCITATION
Current/Voltage: 2.2 mA constant current with 25 V source.
Contact DTS for other options if needed.
On/Off Control: Shutdown when not armed or recording
POWER
Voltage: Supplied via BASE SLICE
Current (Maximum): 85 mA with sensors connected to all channels
ANTI-ALIAS FILTER
Fixed Low Pass: 4-pole Butterworth, standard knee frequency
at 40 kHz
Adjustable Low Pass: 5-pole Butterworth set by software from 1 Hz to
40 kHz
Response: Meets SAE J211/ISO6487 response corridors
ARS SLICE (MICRO only)
Built-in triaxial angular rate sensor
Size: MICRO 42 x 42 x 9 mm (1.65 x 1.65 x 0.35”)
Mass: 30 g (1.06 oz)
Number of Channels: 3 orthogonal axes
Range Options: ±300, ±1500, ±8k deg/sec
Bandwidth: 0–2,000 Hz
Current (Maximum): 75 mA (power supplied via BASE SLICE)
BATTERY SLICE (NANO only)
Optional back-up battery
Size: NANO 26 x 31 x 4 mm (1.65 x 1.65 x 0.16”)
Mass: 7 g (0.25 oz)
Charge Status: Backup battery charges when input voltage to
BASE SLICE is >11 VDC
Charge Time: ~15 min. from complete discharge to full charge
(100 mA at input connector on Base)
Discharge Rate: ~5 seconds with 18 channels (1 Base + 6 Bridges)
Phone: +1 562 493 0158
Email: sales@dtsweb.com
HEADQUARTERS
Seal Beach, California USA
ACCESSORIES
See website for full line of SLICE NANO & SLICE MICRO accessories
CALIBRATION
Calibration Supplied: NIST traceable
ISO 17025: ISO 17025 (A2LA Accredited) available
Service Options: Factory or Onsite, Service Contracts available
Number of
SLICEs
Per Stack*
Total
Channel
Count
Maximum
Sampling Rate
SPS/Channel
1 3 ch 500000
2 6 ch 400000
3 9 ch 300000
4 12 ch 200000
5 15 ch 200000
6 18 ch 200000
7 21 ch 200000
8 24 ch 200000
*Not including the one required
BASE+ SLICE per stack
