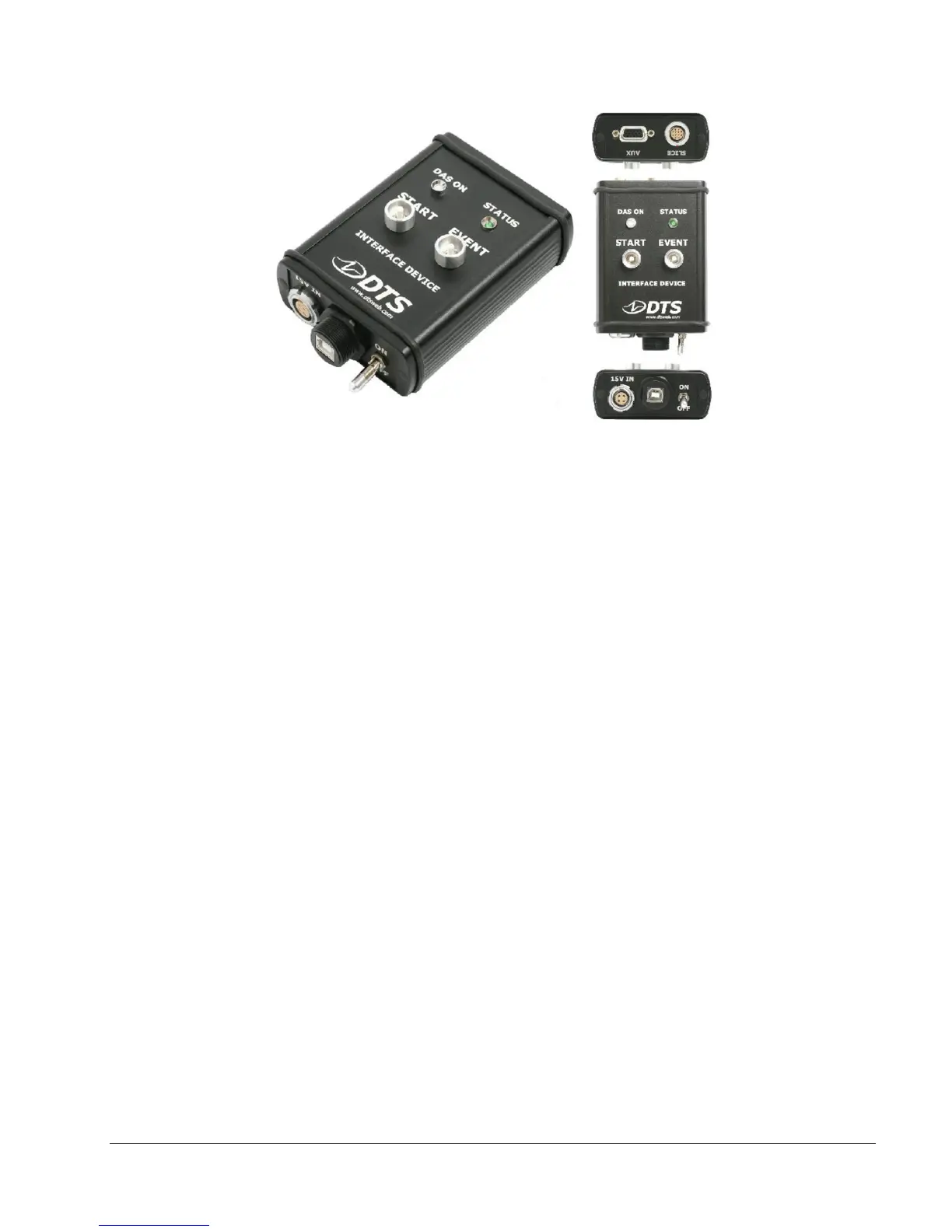

2.3.11. SLICE Ethernet Interface
See Appendix D for detailed specifications.
The SLICE Ethernet Interface allows the connection of two SLICE chains. It is
meant for bench-top use and is not ruggedized.
Maximum channels:
2 chains x 3 Stacks x 8 Bridge SLICEs x 3 chan/Bridge = 144 channels
Connections:
• 2 SLICE Stack chains
• Ethernet communications
• 9 to 15 VDC input power
• ON/OFF switch
• Manual Start/Event
• AUX input (battery, trigger, etc.)
