• The AUX connector is a standard D-sub HD15. This can be used to hardwire a
Start Record or Event switch or monitor the Status line.
3.8. Using the SLICE Distributor
The SLICE Distributor allows for the connection of up to 4 SLICE chains and converts
the communications signals from USB to Ethernet. This allows for a longer communi-
cations cable between the PC and the SLICE system. The most common application
for the SLICE Distributor is for an embedded system with a high channel count as
shown for the in-dummy (manikin) configuration below.

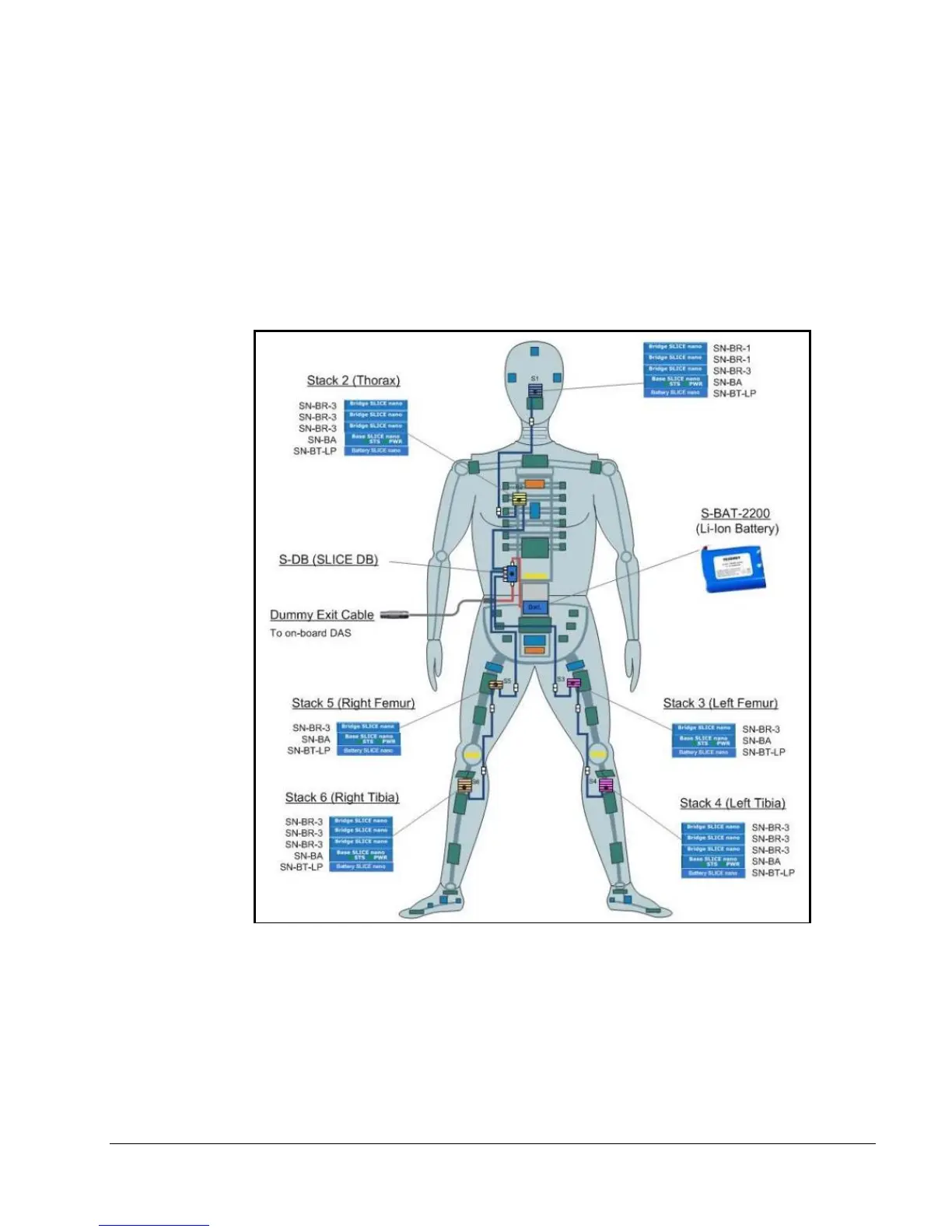

SLICE Application Diagram: 42-channel integrated
SLICE NANO for H3-50% Dummy
