3.3.2. SLICE Cables

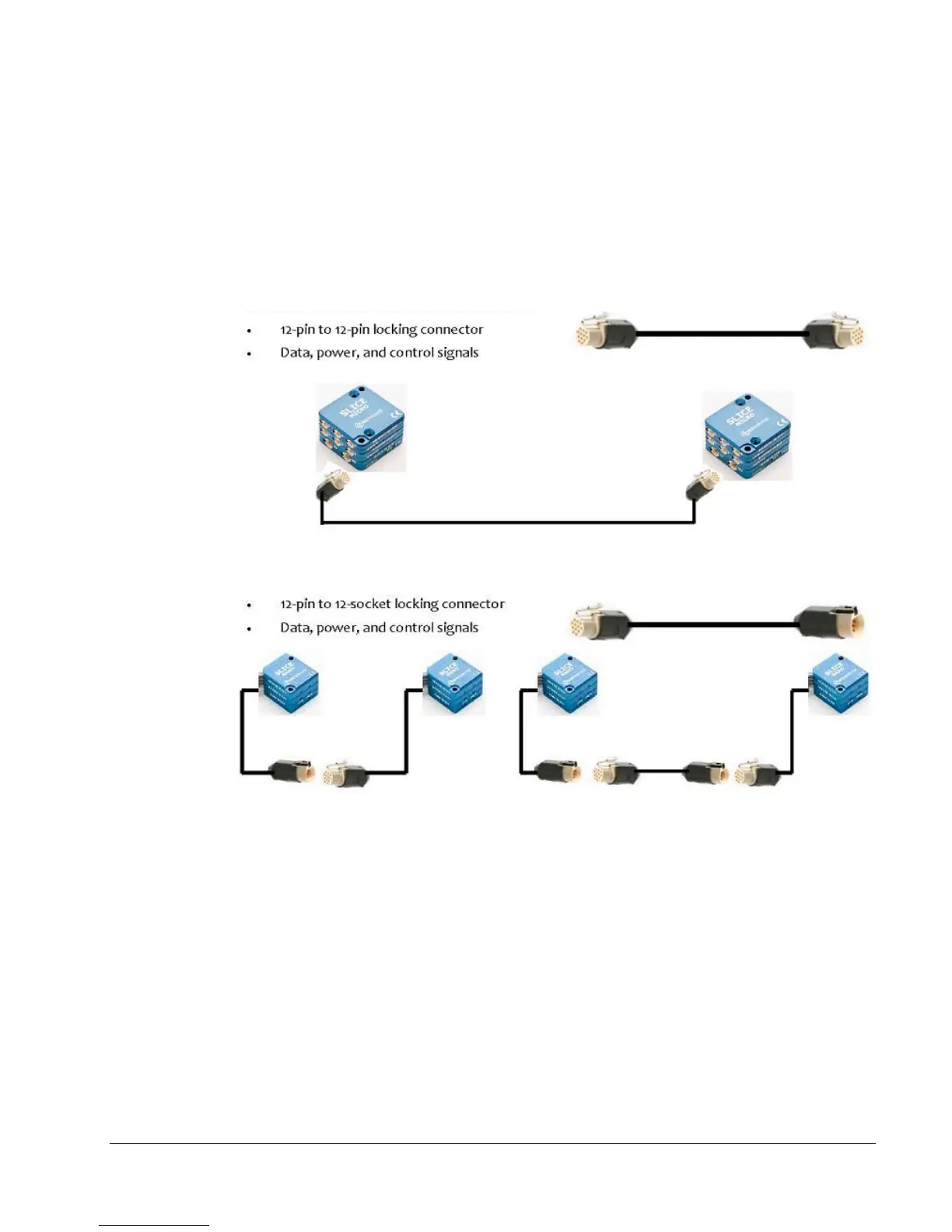

DTS provides a number of different SLICE cable options depending on the
connection needs. SLICE Stack-to-Stack connection cables are shown below.
SLICE MICRO Base units can be connected together via a daisy-chain cable.
SLICE NANO Base units can be connected to each other directly or via a daisy-
chain extension cable.
13000-3005x: SLICE MICRO Chain Cable
13000-3006x: SLICE NANO Chain Cable
Connections less than 8 inches Connections from ≥8 inches to ≤2 m
A longer, more robust version of the SLICE NANO Chain Cable is available for
connections from >2 m to ≤5 m (DTS P/N 13000-3007x). (Note: the rated
maximum separation between Stacks is 5 m.)
