3.5. Using the End-of-Chain (EOC) Terminal

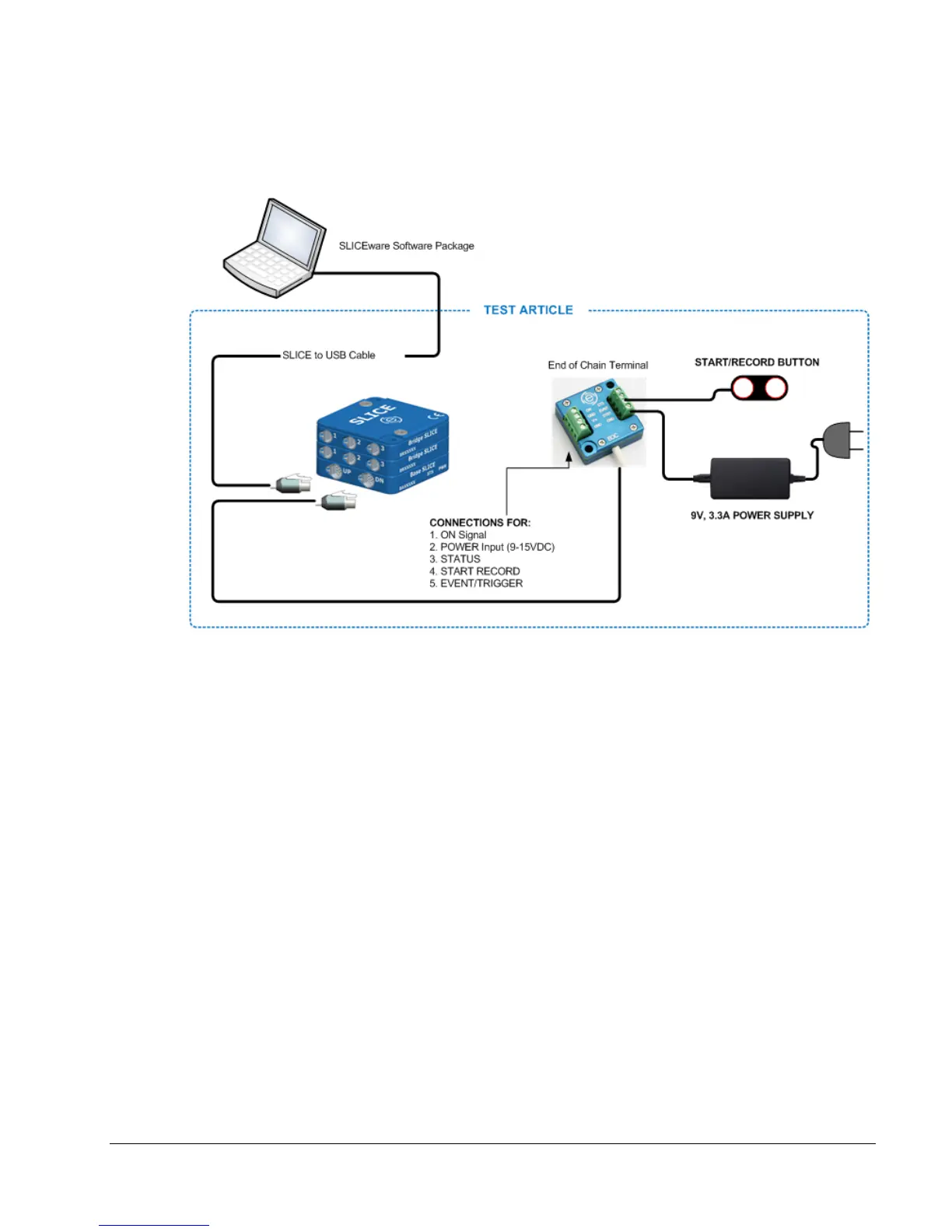

A diagram showing connections using the EOC Terminal is shown below.
Notes:
• Although this shows a SLICE MICRO system, connections with a SLICE NANO
are similar.
• The EOC Terminal is a shock rated item.
• Voltage input can be provided via the included power supply, a battery or any
voltage source between 9 and 15 VDC. Warning: Do not exceed the 15 VDC
input voltage range as damage may result.
• The ON terminal must be connected to the GND on the EOC Terminal for the
SLICE unit to turn on.
• If you connect an LED between the STS and GND terminals, you will get a
Status light when the system is armed.
