2.3.2. Bridge SLICE
See Appendix A for detailed specifications.
Up to 8 Bridge SLICEs can be stacked on top of the Base+ SLICE. Each Bridge
SLICE has these components:
• 3 channels of analog input
• Sensor excitation
• Software adjustable gain, anti-alias filters, offset, and shunt check
• TEDS sensor ID

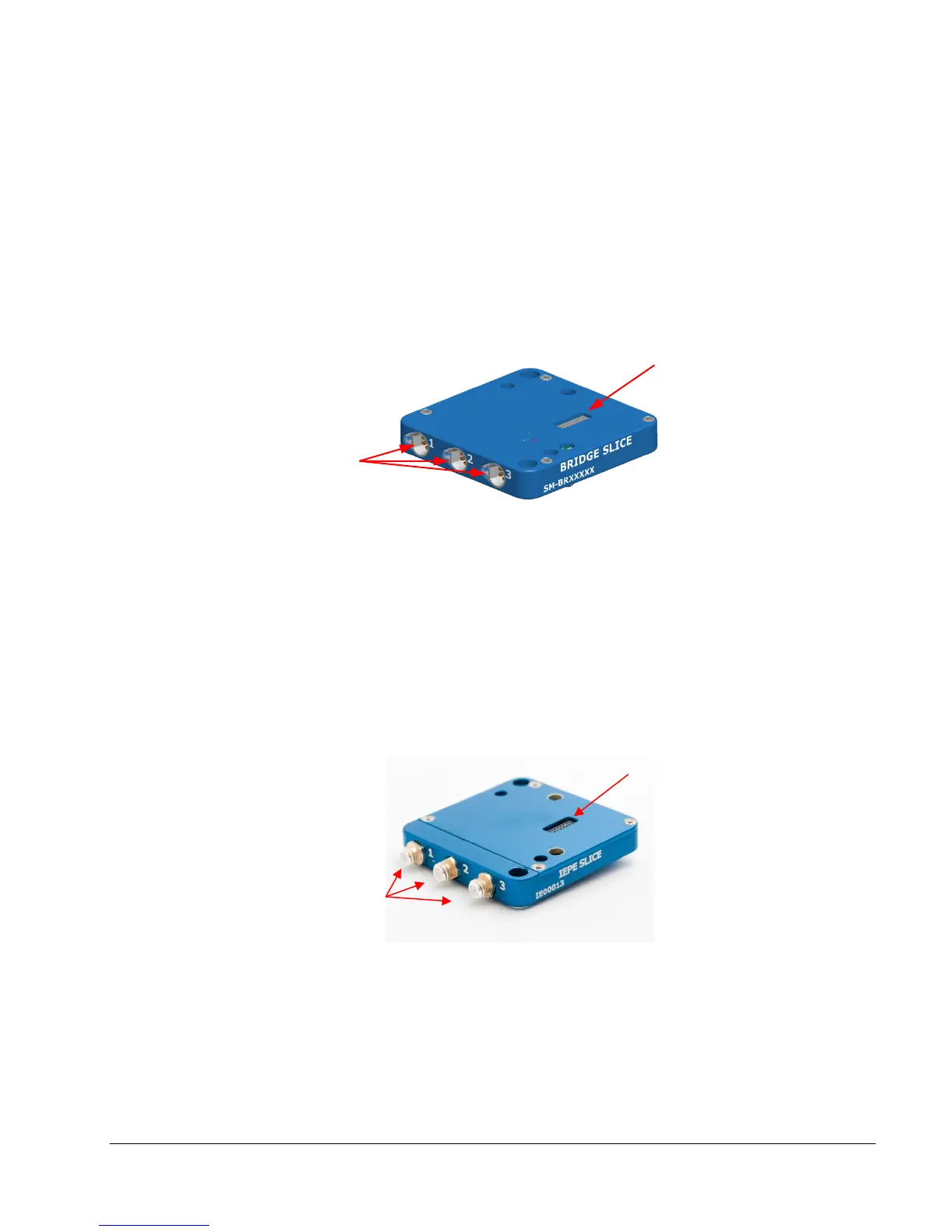

A Bridge SLICE MICRO is shown below.
2.3.3. IEPE SLICE
See Appendix A for detailed specifications.
Features:
• 3 input channels
• One 2.2 mA constant-current source per channel at up to 24 V
• Software adjustable gain, anti-alias filters and offset
• TEDS sensor ID
An IEPE SLICE MICRO is shown below.
Sensor input
channels
Connector to
next SLICE
input module
Connector to
next SLICE
input module
Sensor input
channels
