DTS SLICE MICRO - Page 40

SLICE Ethernet Interface (EI)
support@dtsweb.com 2 March 2010
+1 562 493 0158 ©Diversified Technical Systems, Inc. - All Rights Reserved

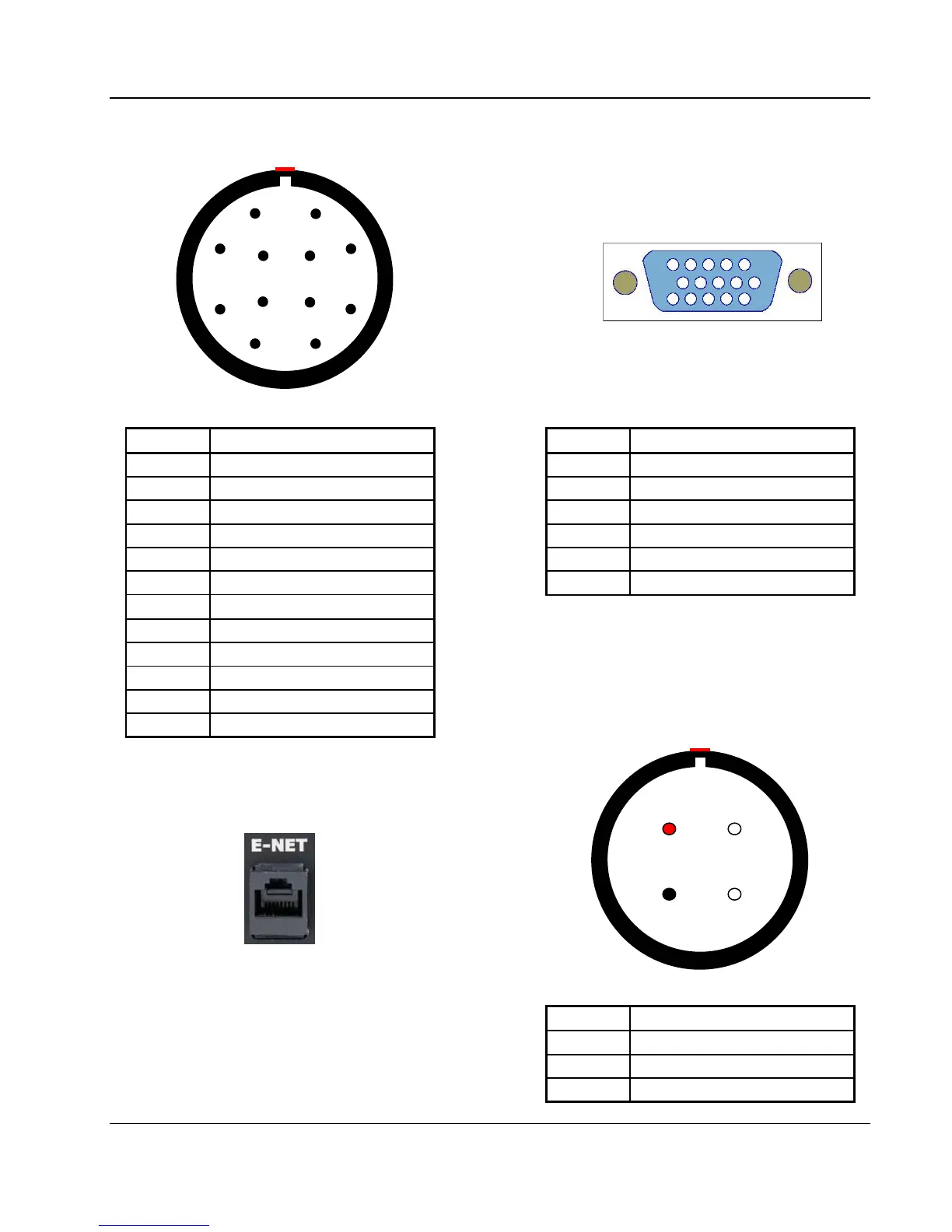

SLICE 1 / SLICE 2 AUX
(ECG.2B.312.CLL) DB15F (high density)
(panel view) (panel view)
Pin
Function
Pin
Function
1
/ON
1
/START, CC to ground
2
/START
2
+Status out
3
/EVENT
3
/EVENT, CC to ground
4
STATUS
6
Ground
5
6.5-15 VDC out
7
-Status out
6
6.5-15 VDC out
8
Ground
7
Ground
8
Ground
9
USB power
10
USB_DP
11
USB_DM
15V IN
12
Ground
(ECG.2B.304.CLL)
This is a standard Ethernet (RJ45)
interface. A commercial, off-the-
shelf patch cable is acceptable.
(panel view)
Pin
Function
1
+Power (9-15 VDC range)
2
-Power/Ground
3, 4
Ground
1
2
3
4
1
2
3
11
12
4
5
6
7
8
9
10
1
5
6
10
15
11
