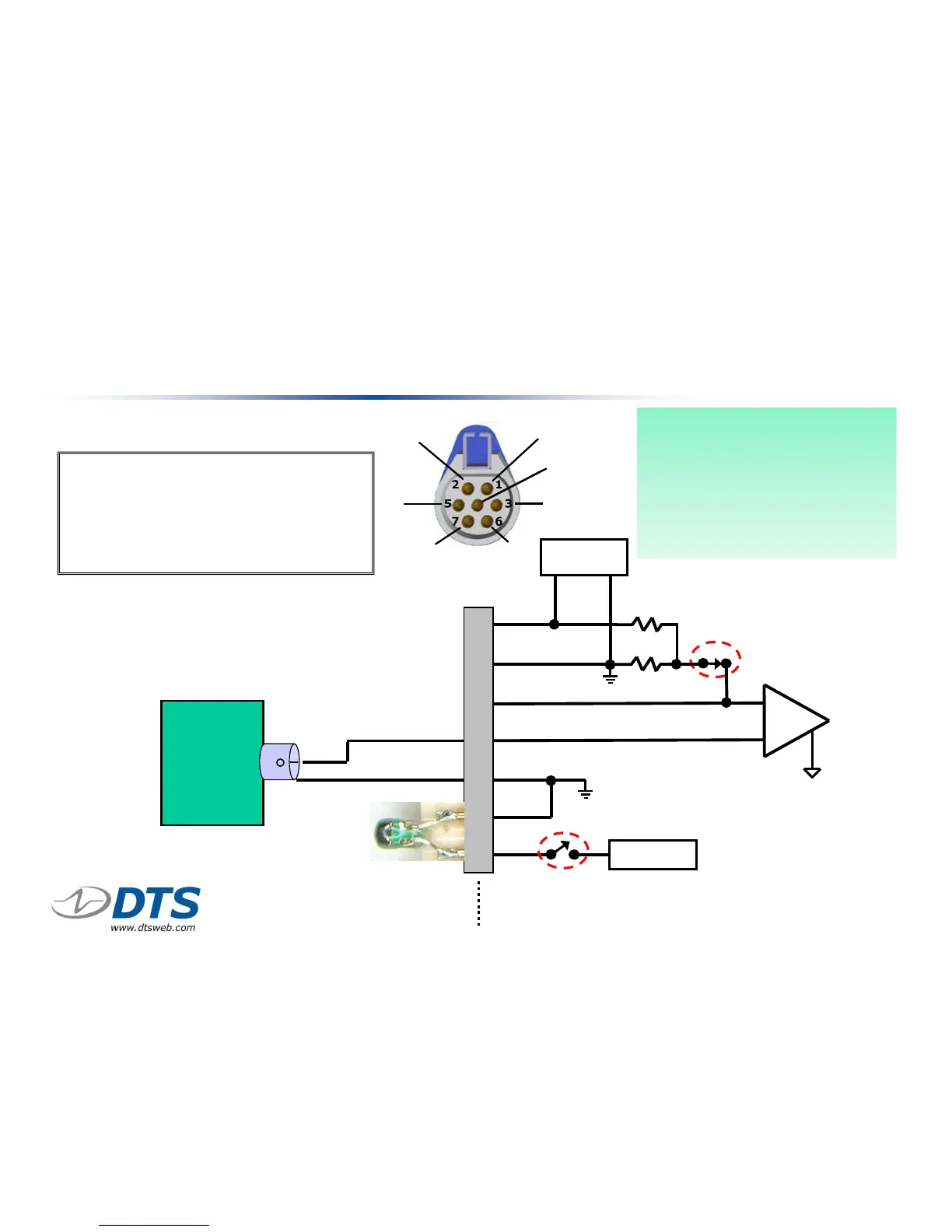

Signal Generator w/grounded output
+EX
-EX
-SIG
+SIG
+ID
-ID
Shield
3
1
2
6
7
5
4
−EX
+ID
Æ Internal to SLICE Bridge
Electronic ID
Interface
Excitation
5-volts 20 mA
+EX
3K
3K
−ID
Half-Bridge Switch
Sensor Side Å
+SIG
−SIG
Amplifier
2.5V
Sig Gen
(grounded)
4.0 volts p-p
(add 2.5-volts
offset to signal)
Notes:
• SLICE input range is 0-5 volts WRT SLICE power
ground and –Excitation.
• Both sides of input amplifier must be connected
either externally or +Signal via ½ bridge mode.
• Input range does not quite extend to 0 & 5
volts.
Best to use signals under 4.5-volts p-p.
Sample Sensor Settings
• Desired Range = 2000
• Sensitivity = 1.000 mV/EU
• Units = mV
• Sensor Type = Half-Bridge
• Proportional to Excitation = No
• Zero Type = None
• Remove Offset = No
