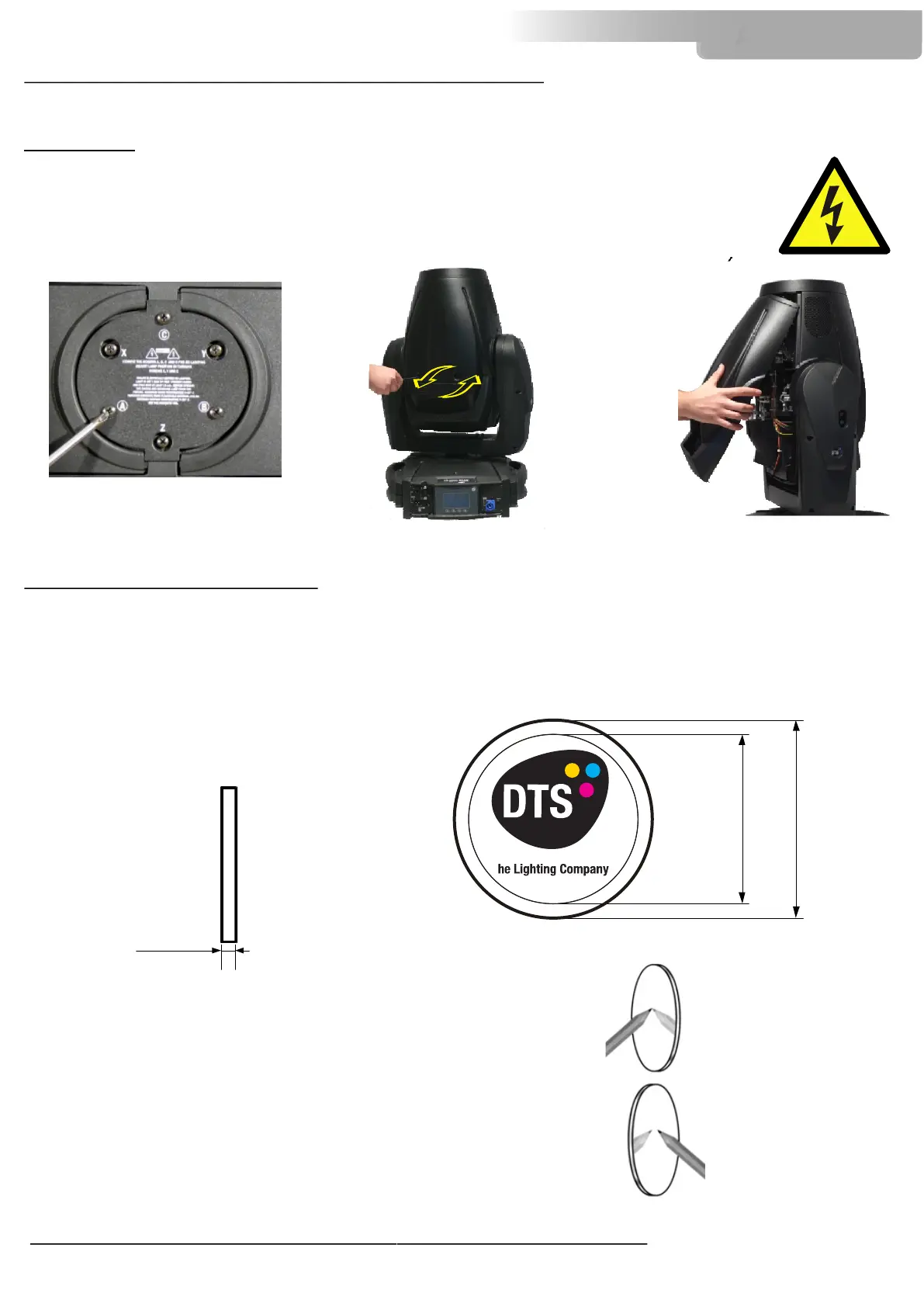

18- OPENING THE PROJECTOR HOUSING
It is possible to inspect the inside of the projector by removing the cover as indicated below.
ATTENTION
REMOVE MAINS POWER PRIOR TO ACCESSING THE PROJECTOR’S INTERNAL COMPONENTS.
2) Loosen the 2 screws which fix the head covers (photo 2) .
3) Once unscrewed, simply lift the covers to access the internal components (photo 3).
19- REPLACING GOBOS
XR2000 BEAM uses a mechanical system which allows the fixture's gobos to be removed without the use
of special tools. Replacement gobos should be made of either heat resistant glass or metal.
An ever-increasing range of gobos is available from your DTS sales network.
Gobo dimensions are as follows:
ø external (ED) = 27.9 mm
ø of image with defined edge (ID) = 24 mm
thickness = from 0.2 to 4 mm (see catalogue)
1) Using a screwdriver, loose the 3 screws A, B, C, (photo 1) and remove the metal cover .
Photo 2
Photo 3
ARC 1200
Load with coated surface toward the light source.
Max thickness
Coated side
When an object is held up the coated side of the glass gobo there
is no space between the object and its reflection.
Uncoated side
When an object is held up the uncoated side of the glass gobo
there is a space between the object and its reflection.
Coated side
Uncoated side
ED
ID
4 mm
XR2000 BEAM
Photo 1
20
