36
E
MAINTENANCE

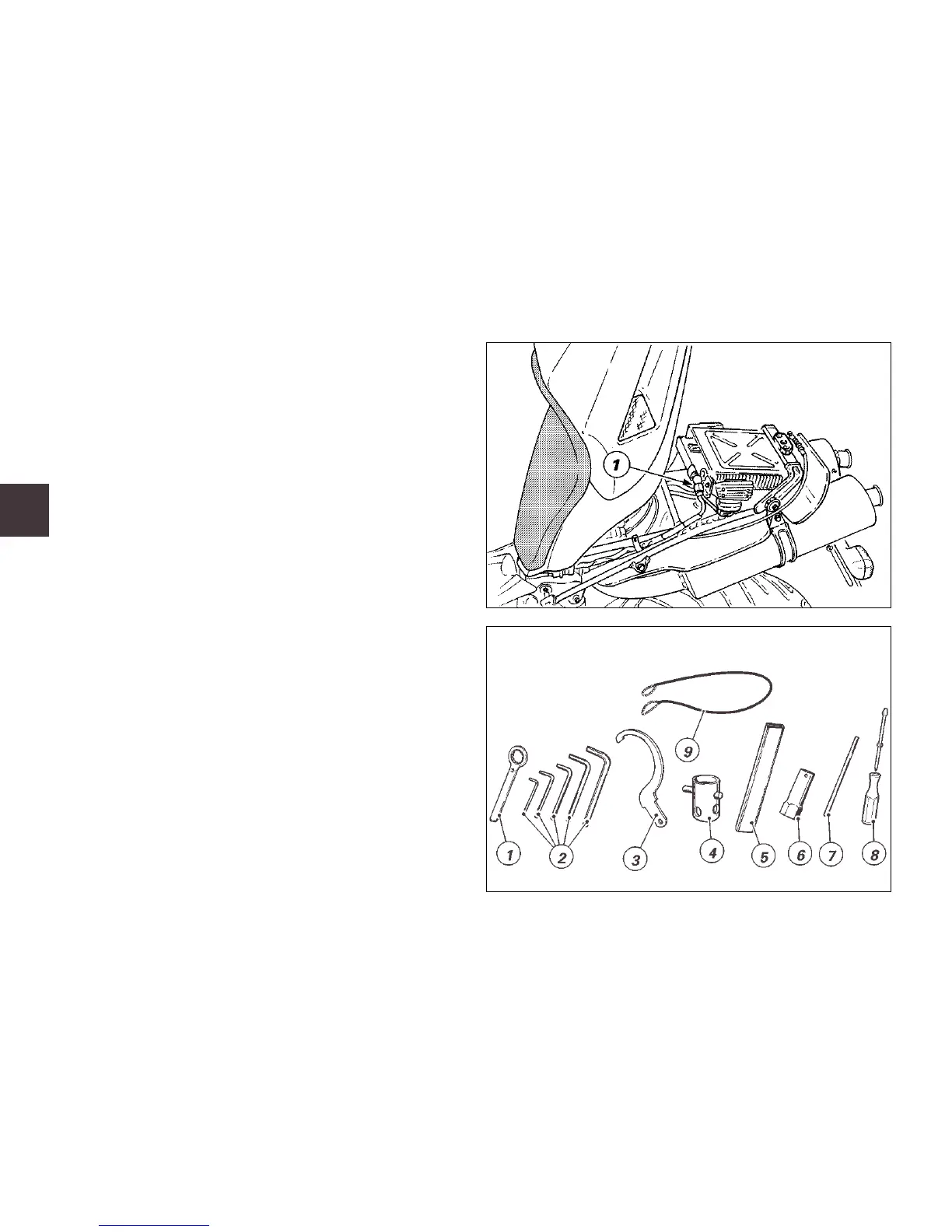

Tool kit and accessories (fig. 23)
Located in area (1) under the tail between CPU and heat
guard are:
an Owner’s manual;
a helmet fastening cable;
a tool bag for usual maintenance and checks.
To reach this compartment, the tail guard must be lifted
by opening the catch (page 22).
The tool bag (fig. 24)
holds:
1)14-mm (0.55-in.) box wrench;
2)10/8/6/5/4-mm Allen wrench;
(0.39/0.31/0.24/0.20/0.16-in.)
3) rear eccentric wrench;
4) front wheel spindle wrench;
5) extension for rear eccentric wrench;
6) box wrench for spark plugs;
7) tommy bar;
8) double-bit screwdriver.
9) helmet cable.
fig. 24
fig. 23
