Front fork adjusters
The front fork used on this motorcycle has rebound
(return), compression and spring preload
adjustment.
It is possible to adjust the spring preload on both
legs, whereas compression and rebound can only be
adjusted on the LH and RH legs, respectively.
Adjustment is done by external screw adjusters:
1) for rebound adjustment;
2) to adjust the preload of the inner springs;
3) to adjust the compression damping.
Position the motorcycle on its side stand so that it is
stable. Turn adjuster (1) at the top end of the RH fork
leg with a flat-blade screwdriver to adjust rebound.
Turn adjuster (3) at the top end of the LH fork leg
with a flat-blade screwdriver to adjust compression.
By turning adjuster screws (1) and (3) you will hear
some clicks; each click corresponds to a damping
The damping is obtained with the
adjuster turned fully clockwise to the "0" position. By
turning counter clockwise from this
position, count the clicks that will correspond to
positions "1", "2" etc.
STANDARD are as follows:
●
compression: -2 turns from max. (fully closed);
●
rebound: -2 turns from max. (fully closed);
●
spring preload: +5 turns from min. (fully
uncompressed).

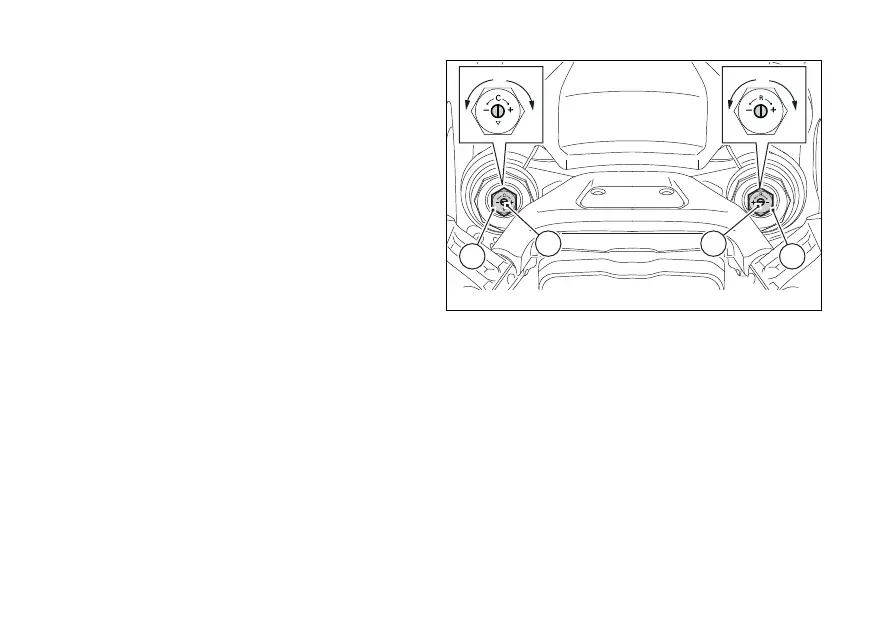

Fig 39
