6 - Frame inspection
1 Frame
Spare parts catalogue
Frame
Caution

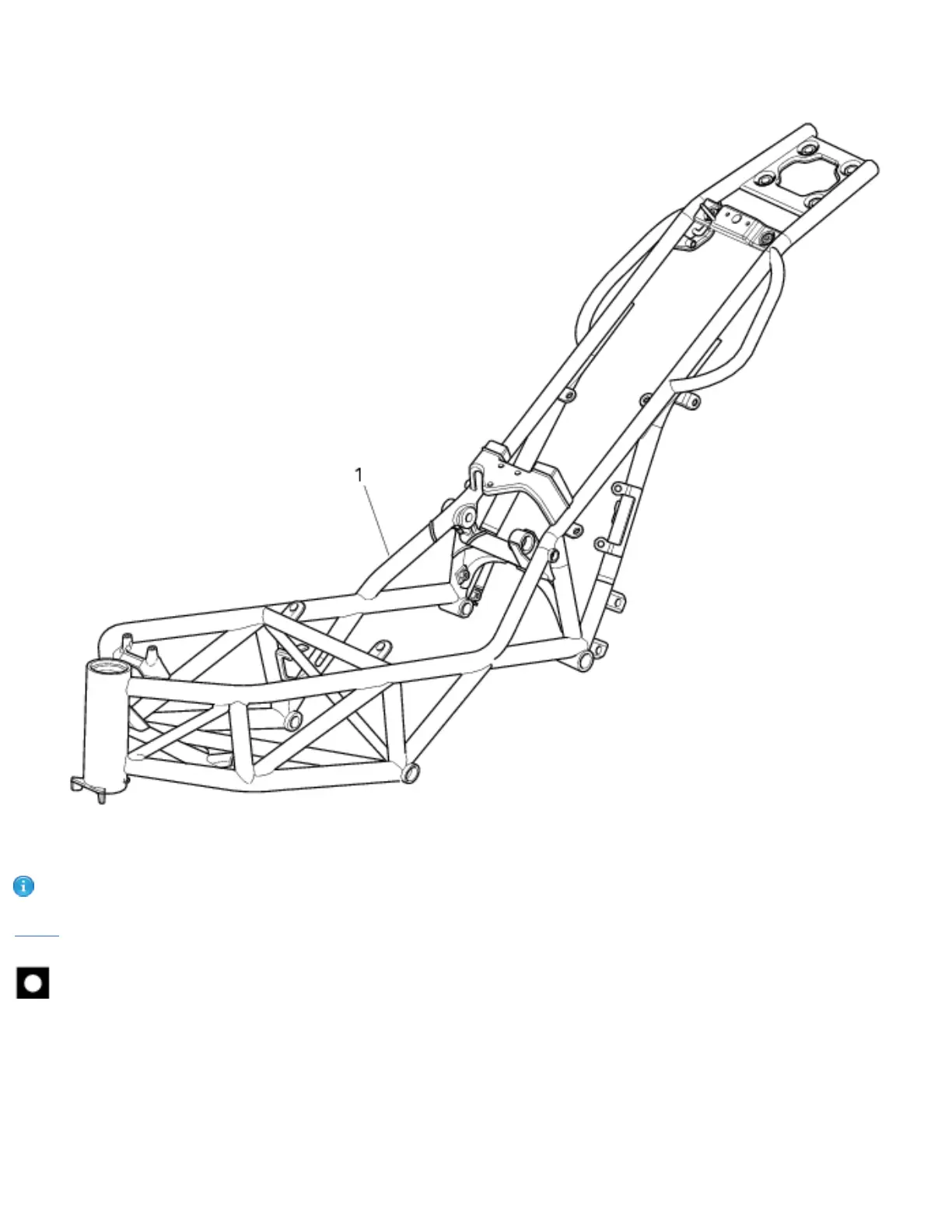

Bold reference numbers in this section identify parts shown in this exploded view diagram. These parts do not appear
in the figures near the text.
Removing the frame and related components
Before performing the frame dimensional checks, you will need to remove a number of components to give all-round
access to the frame. See the specific instructions in the relevant sections.
The following diagram shows the components you will need to remove in the correct removal order and the sections
giving relevant instructions.
