Head unit: valves - rocker arms

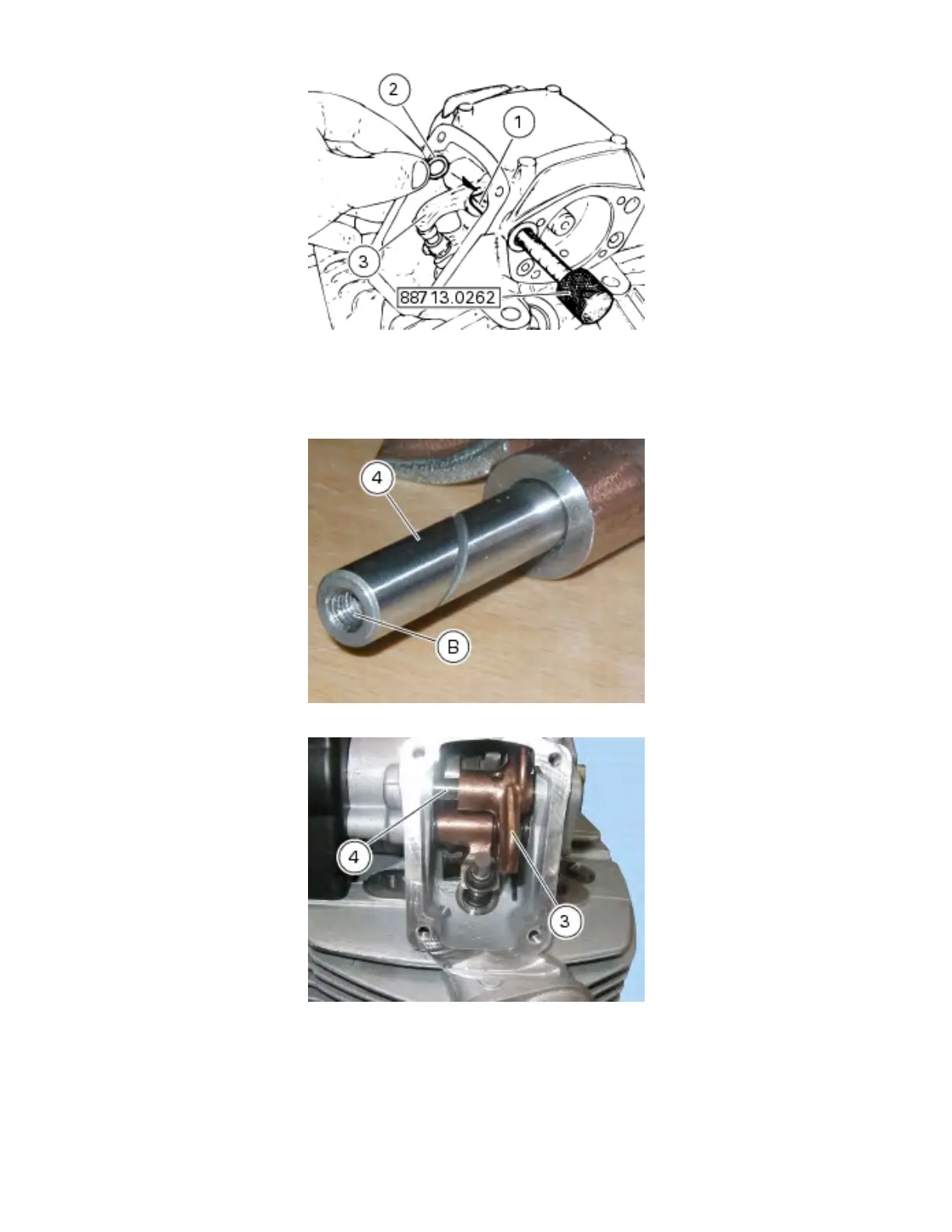

Place the shims (2) at both sides of the clip (1).
Axial play of opening rocker arm:
0.05 – 0.20 mm
After shimming, remove tool part no. 88713.0262 and position the shaft (4) with the threaded hole end (B) pointing
outwards.
Insert side clip (1) onto pin (4) of opening rocker arm (3), in-between the two spacers (2).
