Minimum operating clearance between valve stem and rocker arm:
0.15 mm.
Operating axial play of closing rocker arm:
0.05 – 0.20 mm.

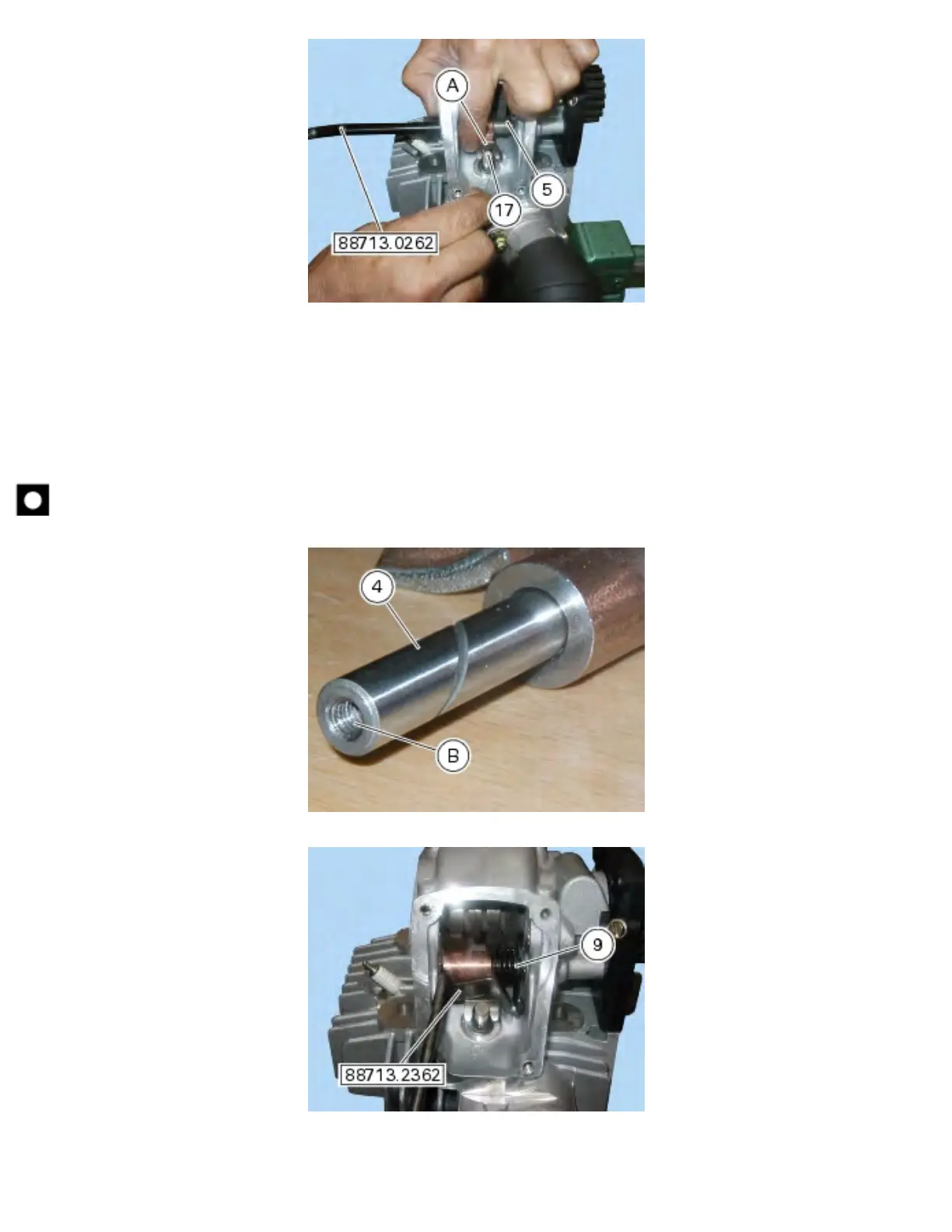

Remove tool part no. 88713.0262 and insert the rocker arm shaft (4).
Caution
Install the rocker arm shafts (4) with the threaded hole end (B) pointing outwards.
Release the spring (9) and remove the tool part no. 88713.2362.
Using again pin part no. 88713.0262, set opening rocker arm (3) and fit side shims (2): position rocker arm and
shims in the horizontal head exhaust side, in vertical head intake side, in horizontal head intake side and in vertical
head exhaust side.
