Ducati MONSTER 695 - Thread

Casing unit: crankcases

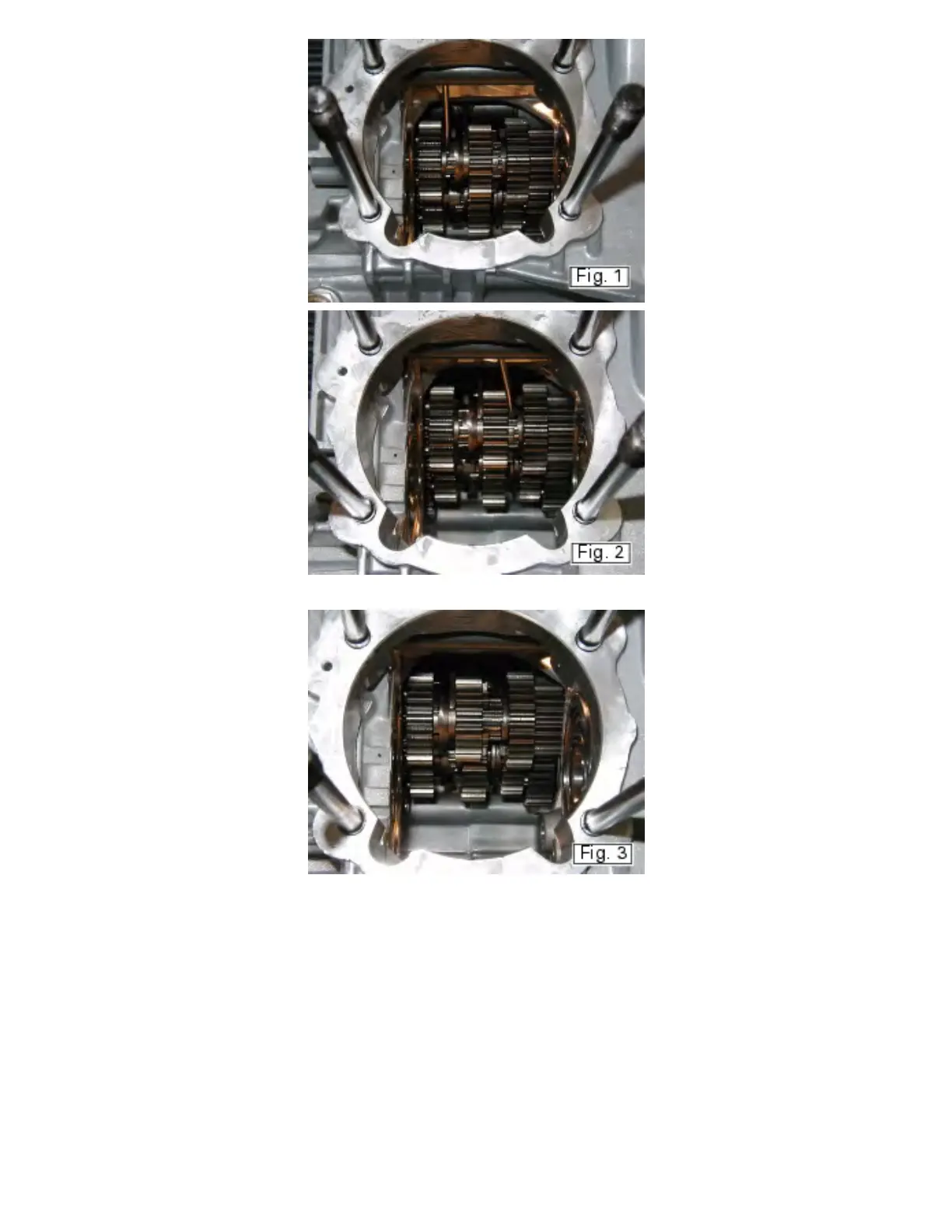

Engage a gear and check that the fork is free in the sliding gear groove (Fig. 3).
Closing the casings
Fit the timing layshaft (2) into the clutch-side casing roller bearing (21). To prevent damage to the oil seal on the
timing layshaft, insert a protection cap part no. 88700.5749 on the shaft threaded end.
