Reassembling the oil pump gear

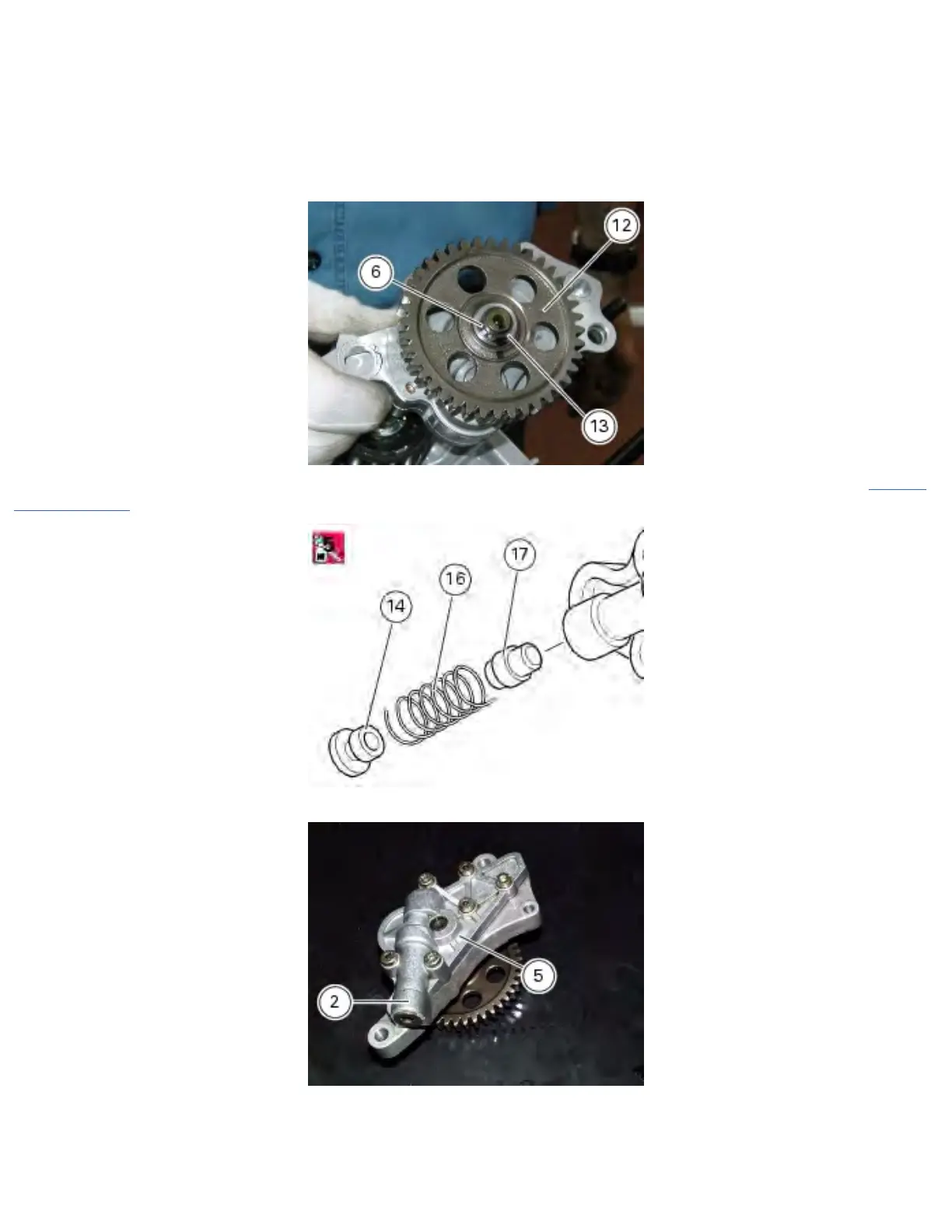

Insert pump driving gear (12), snap ring (3) and bushing (13) onto oil pump.
Fit the circlip (6) into its seat to lock the components in place.
Insert by-pass valve (17) and spring (16) into pump then tighten plug (14) to the specified torque (Sect. C 3, Engine
torque settings) applying a medium-strength threadlocker.
Fit pump cover (2) to pump body (5) complete with gears.
Refitting the oil pump
Place the centring bushes (15) and the oil O-rings (2) and (4) at the oil ducts in the casing.
