Ducati MONSTER 695 - Page 346

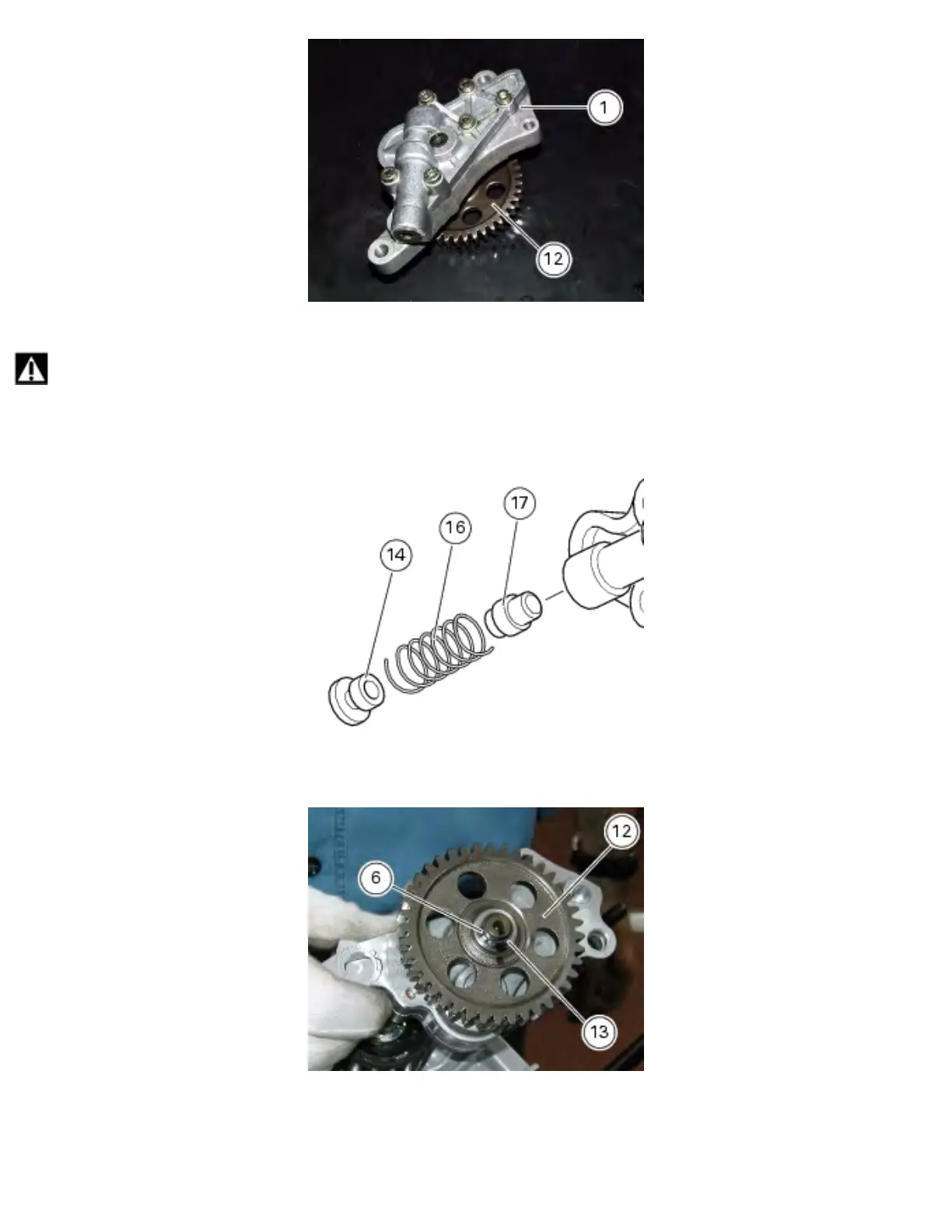

Lubrication system: oil pump
Warning
Make sure that vice jaws are duly protected.
Remove plug (14) and slide out spring (16) and by-pass valve (17).
Check for proper operating conditions.
Remove the circlip (6), withdraw the bush (13) and remove the snap ring (3).
Remove the pump control gear (12).
