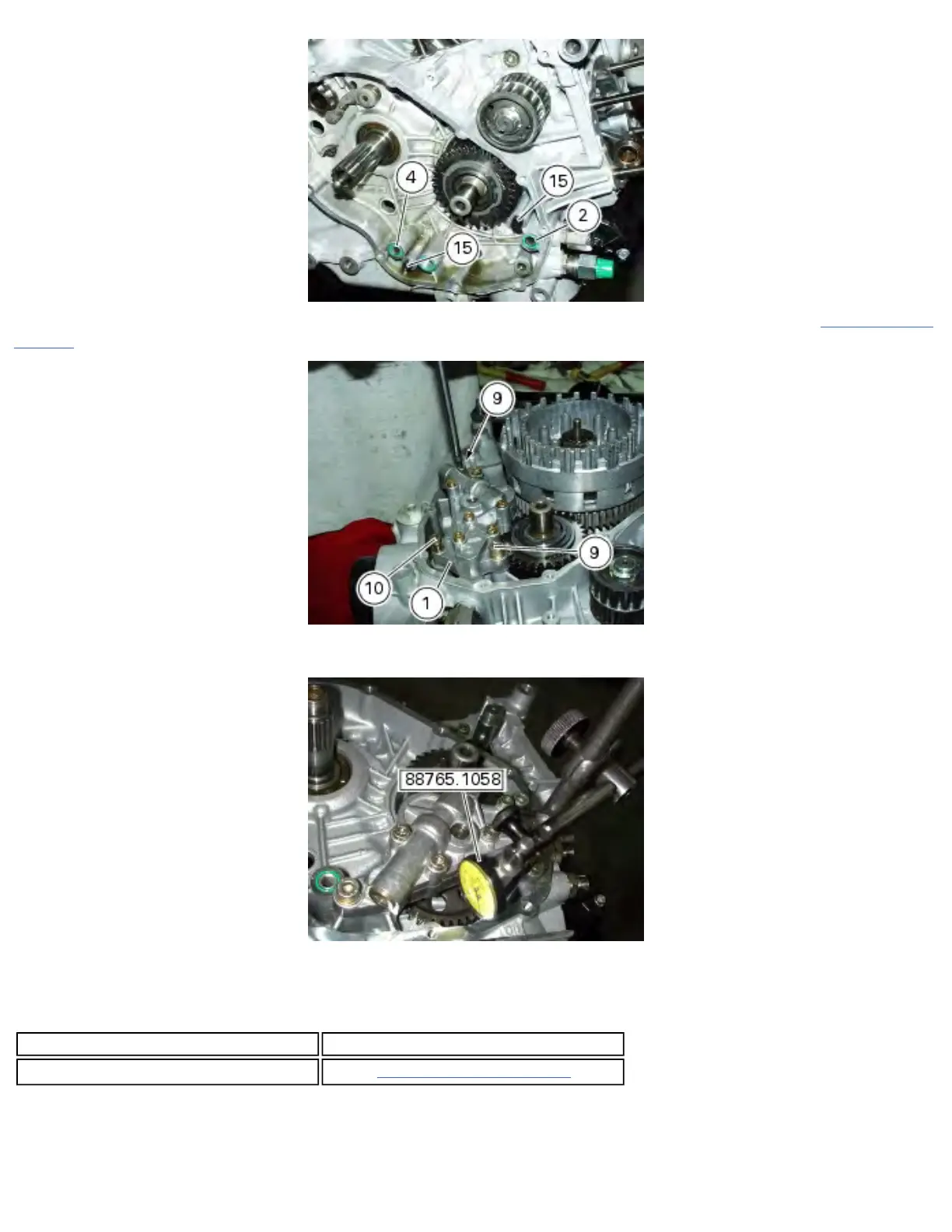

Place the oil pump on the casing and tighten the screws (9) and (10) to the specified torque (Sect. C 3, Engine torque
settings).
Secure dial gauge part no. 88765.1058 provided with a special pointer on the casing to check the meshing clearance
with the crankshaft sprocket.
Bring dial gauge pointer in contact with one of the oil pump gear teeth and set the instrument to zero on this position.
Slightly move the gear to measure the clearance. Take four readings in diametrically opposite positions of the gear.
Clearance must be 0.10 mm.
Operations Reference See Section
Refit the clutch cover N 6.2,
Refitting the clutch cover
