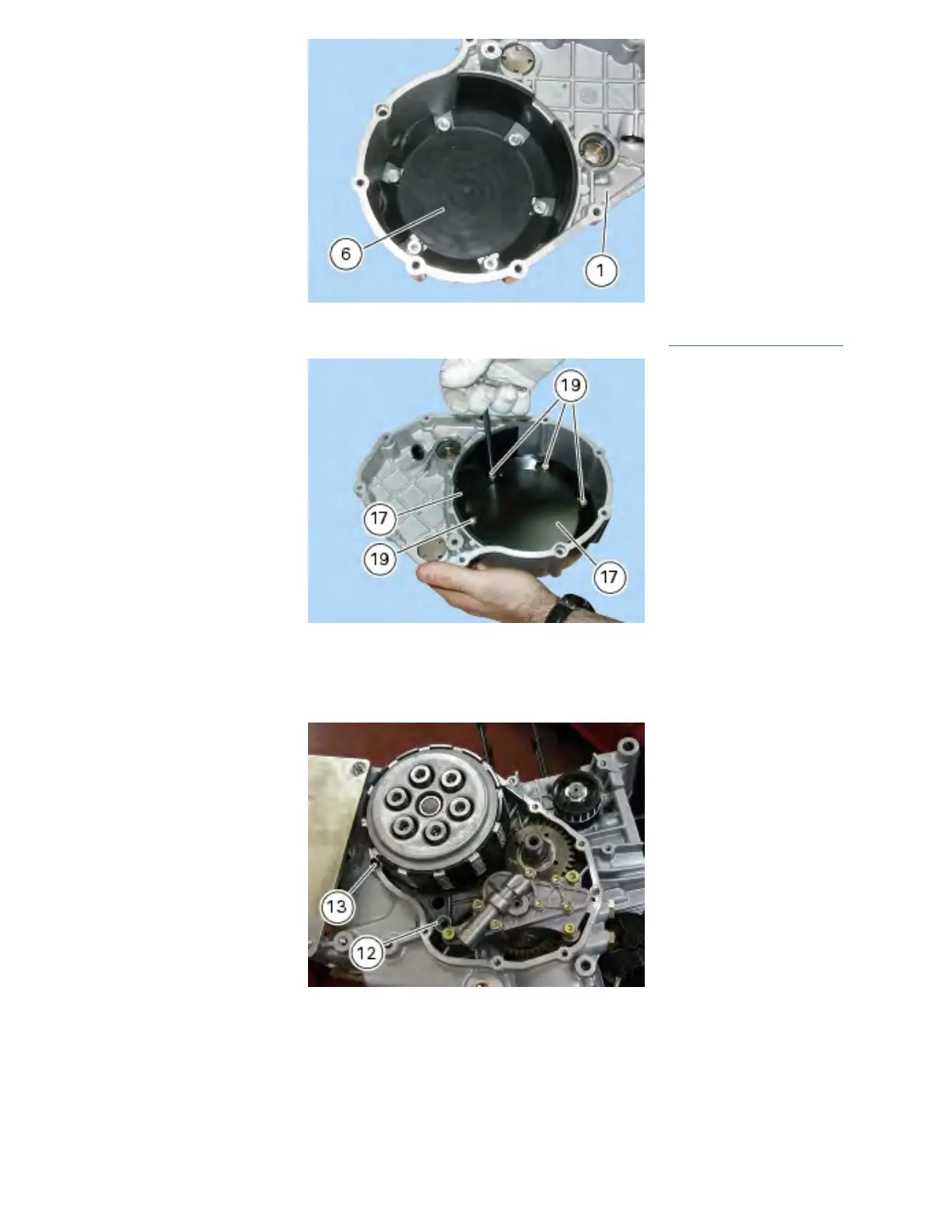

Position the inner cover (17) to the panel (6).
Position the six retaining screws (19) and tighten to the specified torque (Sect. C 3,
Engine torque settings).
Refitting the clutch cover
Clean and degrease mating surfaces on cover and casing and ensure that the centring bush (13) and the O-ring (12)
at the lubrication drill are fitted in the casing.
Apply an even, regular bead of DUCATI liquid gasket (A) on the mating surface of the casing and around all holes.
