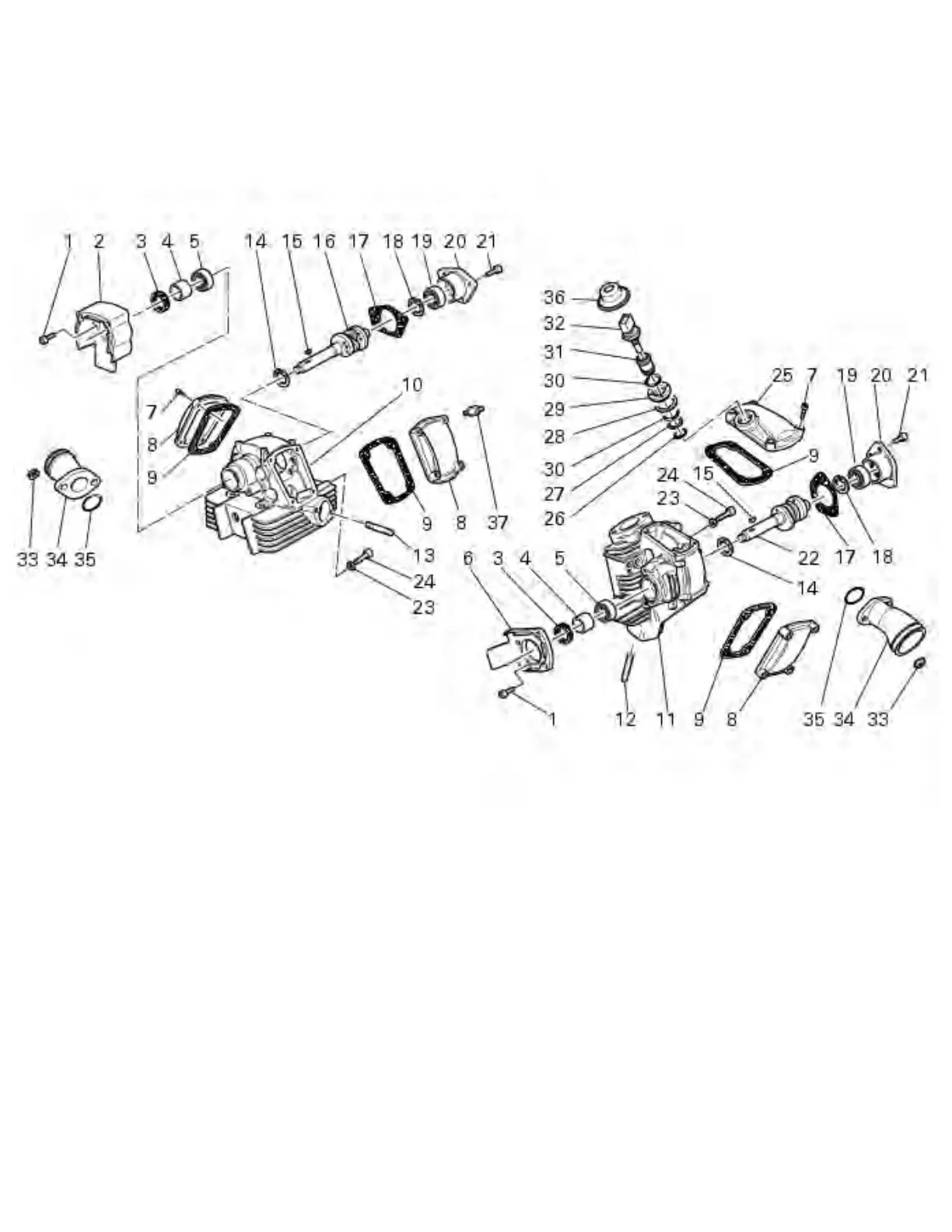

Head unit: camshafts
4.3 - Head unit: camshafts
1 Screw
2 Vertical rubber cap
3 Seal
4 Roller spacer
5 Bearing
6 Horizontal rubber cap
7 Screw
8 Valve cover
9 Valve cover gasket
10 Vertical head
11 Horizontal head
12 Stud bolt
13 Stud bolt
14 Circlip
15 Key
16 Vertical head camshaft
17 Gasket
18 Circlip
