19 Screw
20 Washer
21 Screw
22 Washer
23 Locating ring
24 Stop plate
25 Shim thk. 0.2
26 Shim thk. 0.5
27 Complete gear selector lever
Spare parts catalogue
Gearchange
Caution
Bold reference numbers in this section identify parts shown in this exploded view diagram. These parts do not appear
in the figures near the text.
Removing the gear selector levers
Operations Reference See Section
Remove generator cover and
flywheel/generator assembly
N 8,
Flywheel - generator
Remove clutch housing N 6.3,
Disassembling the primary
drive gears

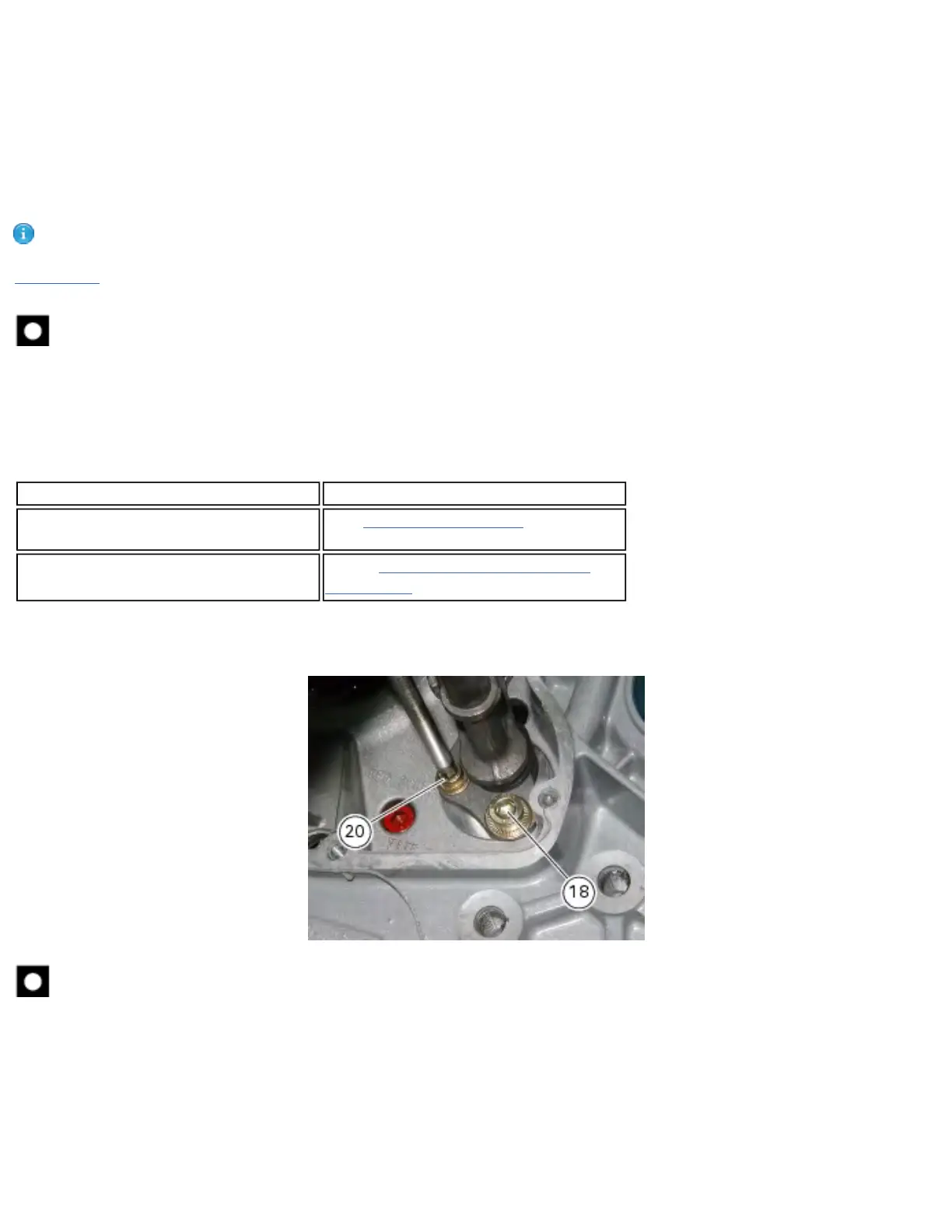

Undo the complete gear selector lever (25) retaining screws (18) and (20).
Remove screws (18) and (20), washers (19) and (21) and slide out gear selector lever complete with control shaft,
spring and plate.
Caution
Visually inspect gear selector fork (14) mating surface with gear selector for wear.
