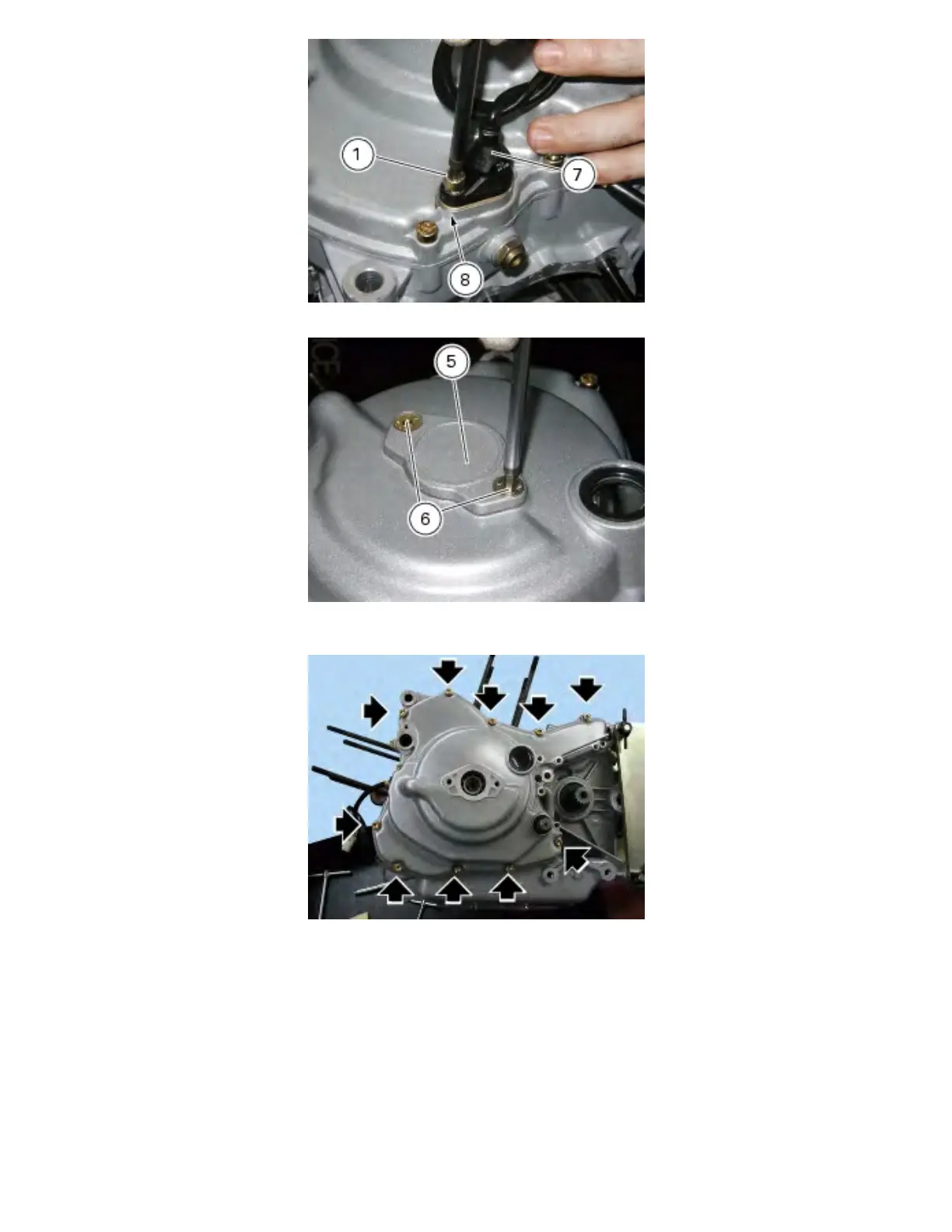

Undo the two retaining screws (6) of the small cover (5) placed at crankshaft end.
Undo the generator cover retaining screws (10), (11) and (12) (arrowed in the figure).
Collect the two washers (35) and hose guide (36).
Fix tool part no. 88713.1749 to the holes of the screws (6) you have just removed.
Turn the tool shaft slowly to remove the cover (28) from the LH casing.
