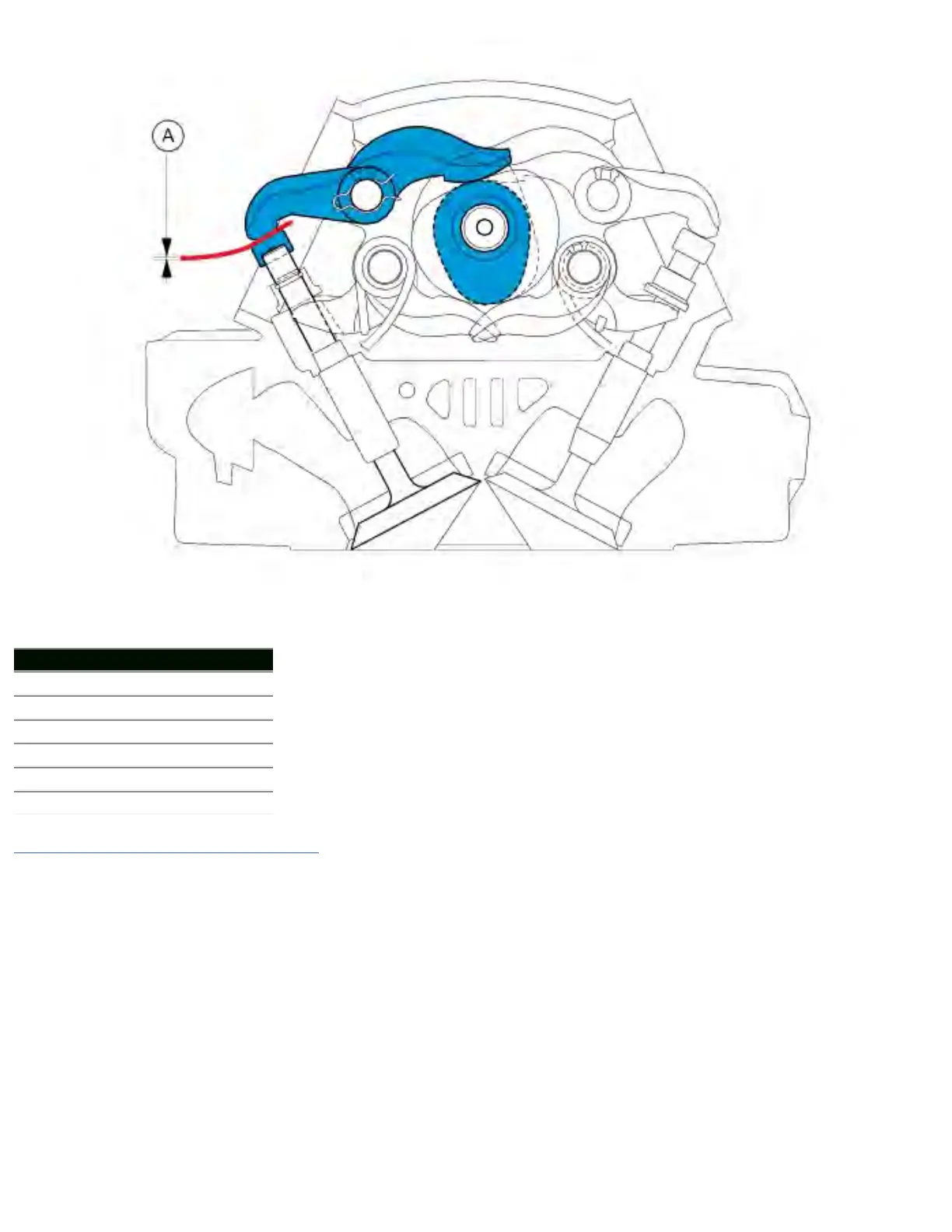

With the valve in the rest position, slide a feeler gauge between closing rocker arm and shim to measure clearance.
Clearance must be within the specified limits:
Closing rocker arm
Intake: (A)
Nominal 0-0.05 mm
In operation 0-0.20 mm
Exhaust: (A)
Nominal 0-0.05 mm
In operation 0-0.20 mm
If the clearances measured are outside the specified limits, measure clearance and adjust as required (Sect. N 4.1,
Checking and adjusting valve clearance).
