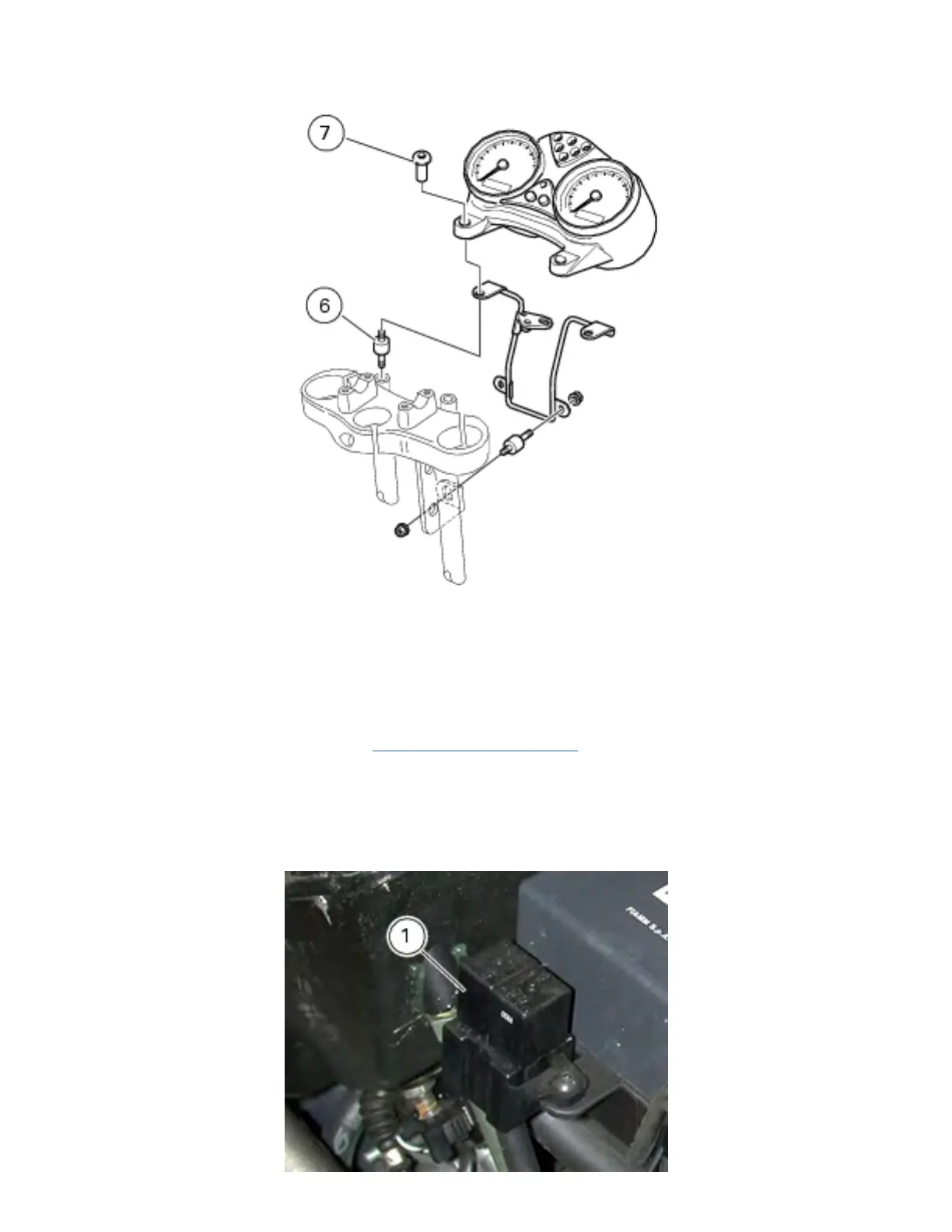

High beam relay
It is located next to the batteries and secured to battery mount. To gain access to this component it is
necessary to lift the fuel tank (Sect. L2, Removing the fuel tank).
High beam relay (1) was added to the system in order to control the light automatic switch-off
strategy, i.e.:
1
If on after normal use, lights go off 60 seconds after engine is stopped by means of "Engine kill
button“ (2) and with key ON; they immediately turn on again when vehicle is restarted.
2 If on, lights go off 60 seconds after key-ON with engine stopped.
