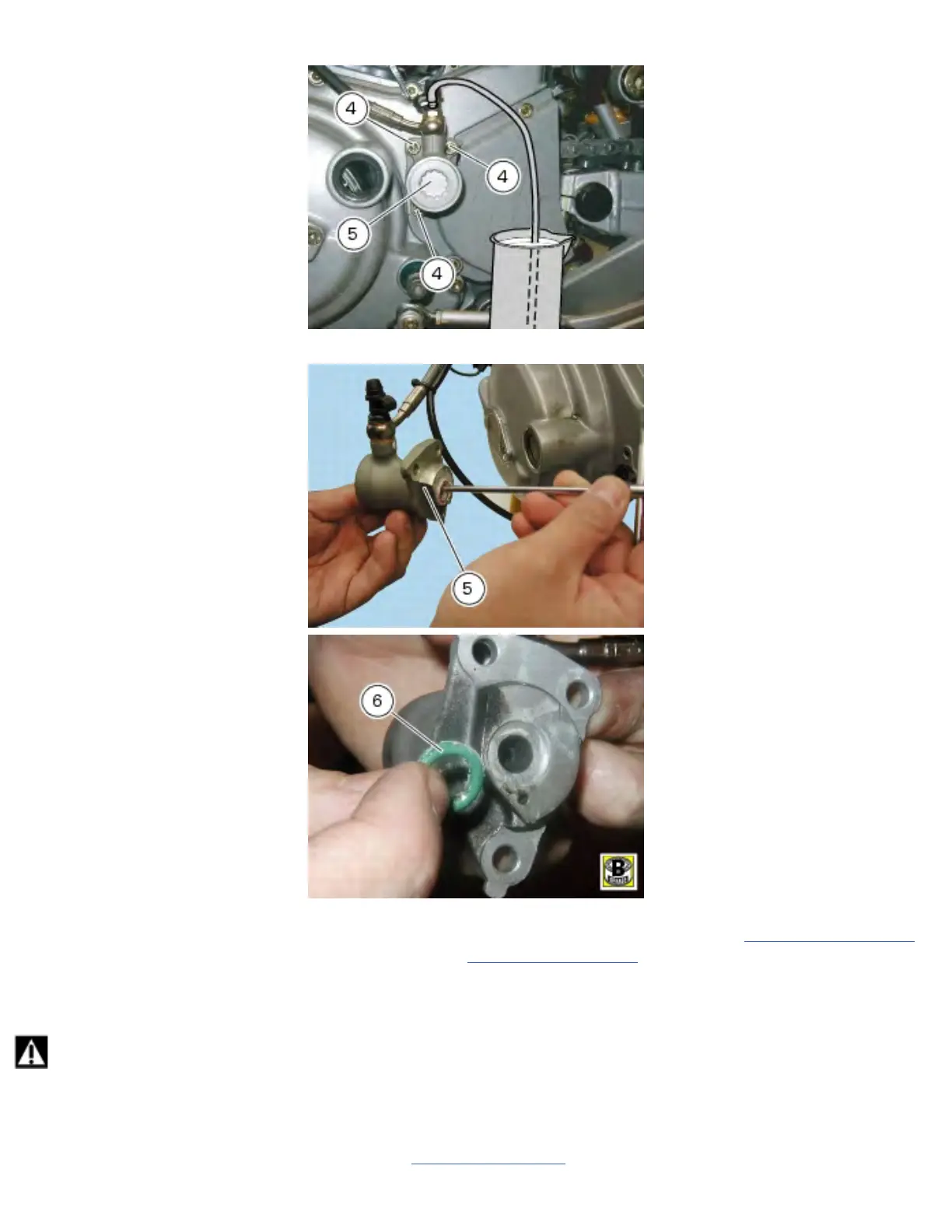

To help drain the circuit fully, unscrew the three retaining screws (4) of the transmission unit and remove.
Withdraw the clutch transmission unit (5). Be careful of the O-ring (6) placed inside.
Push in the piston to expel all fluid inside the unit.
Refit transmission unit and tighten the retaining screws (4) to the specified torque (Sect. C 3,
Frame torque settings).
Tighten the bleed valve to the specified torque (Sect. C 3,
Frame torque settings).
Filling the clutch circuit
Warning
Clutch fluid will damage painted surfaces if spilled on them. In addition, it will cause severe injury if spilled on the skin
or into your eyes. In the event of accidental contact with skin or eyes, wash the affected area with abundant running
water.
Fill the reservoir (A) with specified fluid (Sect. C 2,
Fuels and lubricants) taken from a sealed container.
