19 514.1.033.1A Lighter socket adapter
Spare parts catalogue
Diagnosis tester DDS
Workshop special tools
Caution
Bold reference numbers in this section identify parts shown in this exploded view diagram. These parts do not appear
in the figures near the text.
Tester description
The “DDS” diagnostic system lets you diagnose any faults in the injection-ignition system via a serial port. This
system provides a full range of features to test a number of motorcycle devices, measure the current and voltage
outputs from any electrical items, test individual components and take pressure and temperature measurements.

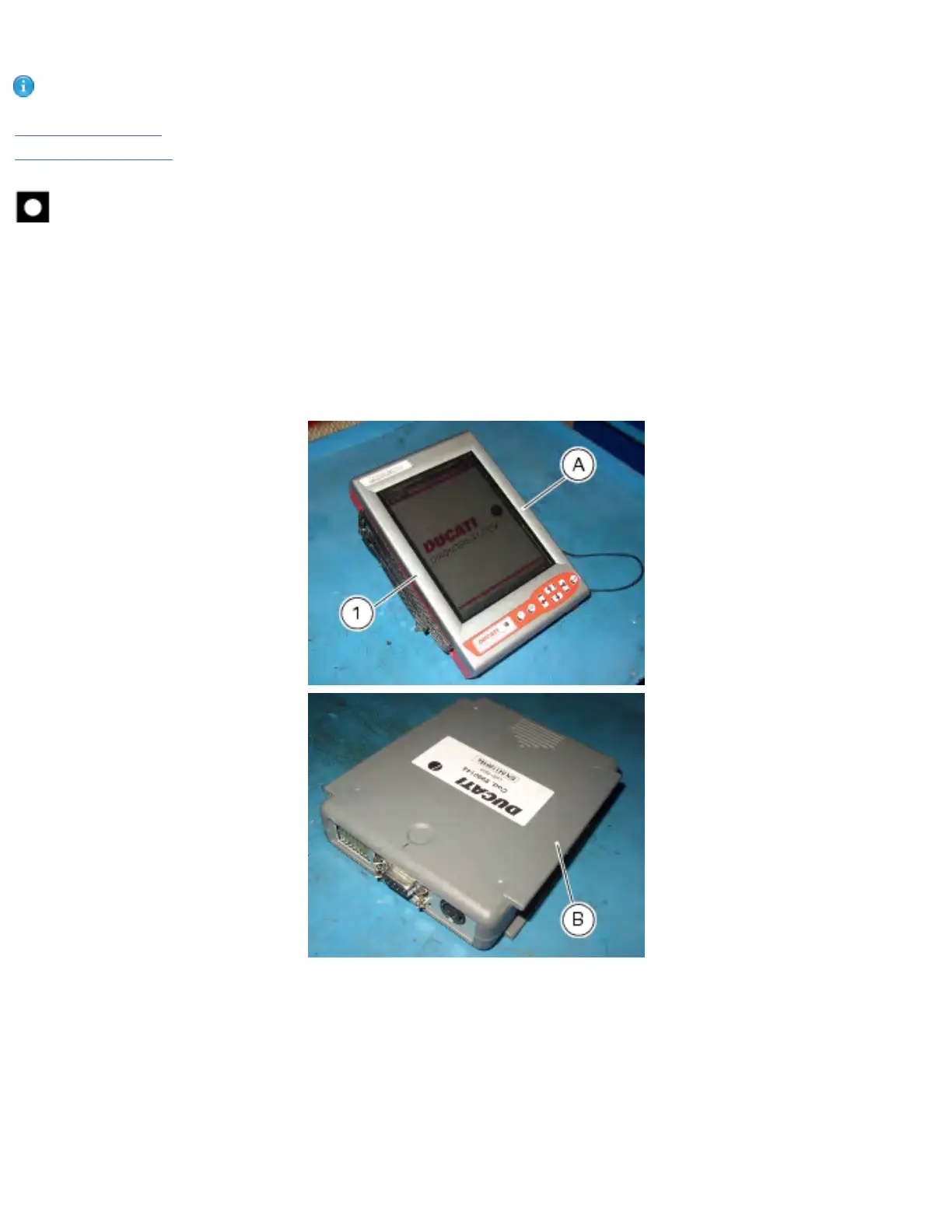

The DDS (1) consists of a palmtop display (A), a BBAD self-diagnosis module (B), a display memory card (C) and a
BBAD memory card (D).
