Connection to the bike
Supply voltage must be between 9 and 16 Volt DC.
Make sure voltage never drops below this limit during operation: this could happen when starting the engine or when
the engine is idling if the bike battery is in less than perfect operating conditions. If the tester detects a power supply
voltage below 9 Volts, it will abort any procedures underway at that time. Once voltage is again within specified
limits, you will have to repeat procedure set-up.

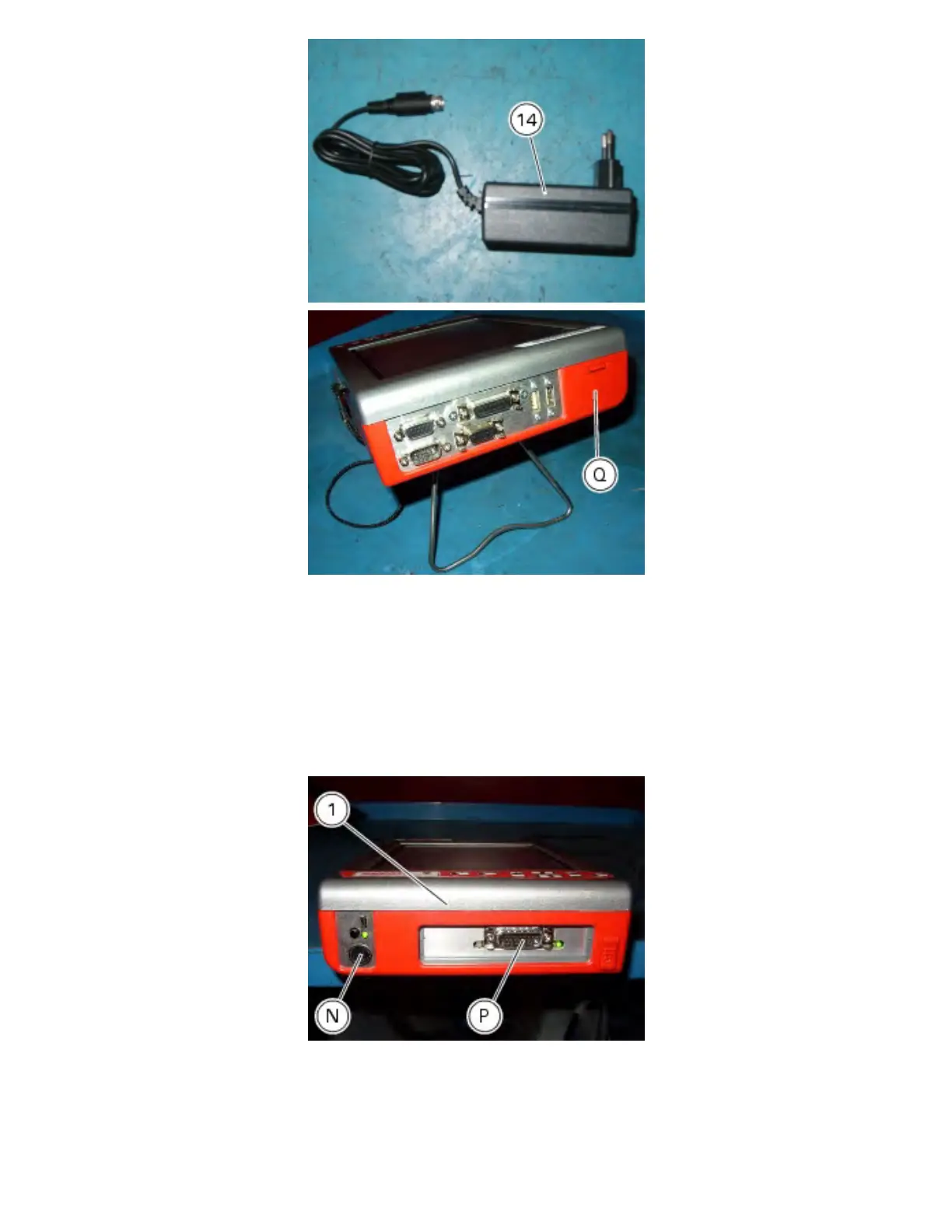

The DDS (1) can be powered from the vehicle as follows:
-
connecting battery power supply (13) to the power connector (N) of the instrument and connecting battery power
supply to vehicle battery;
