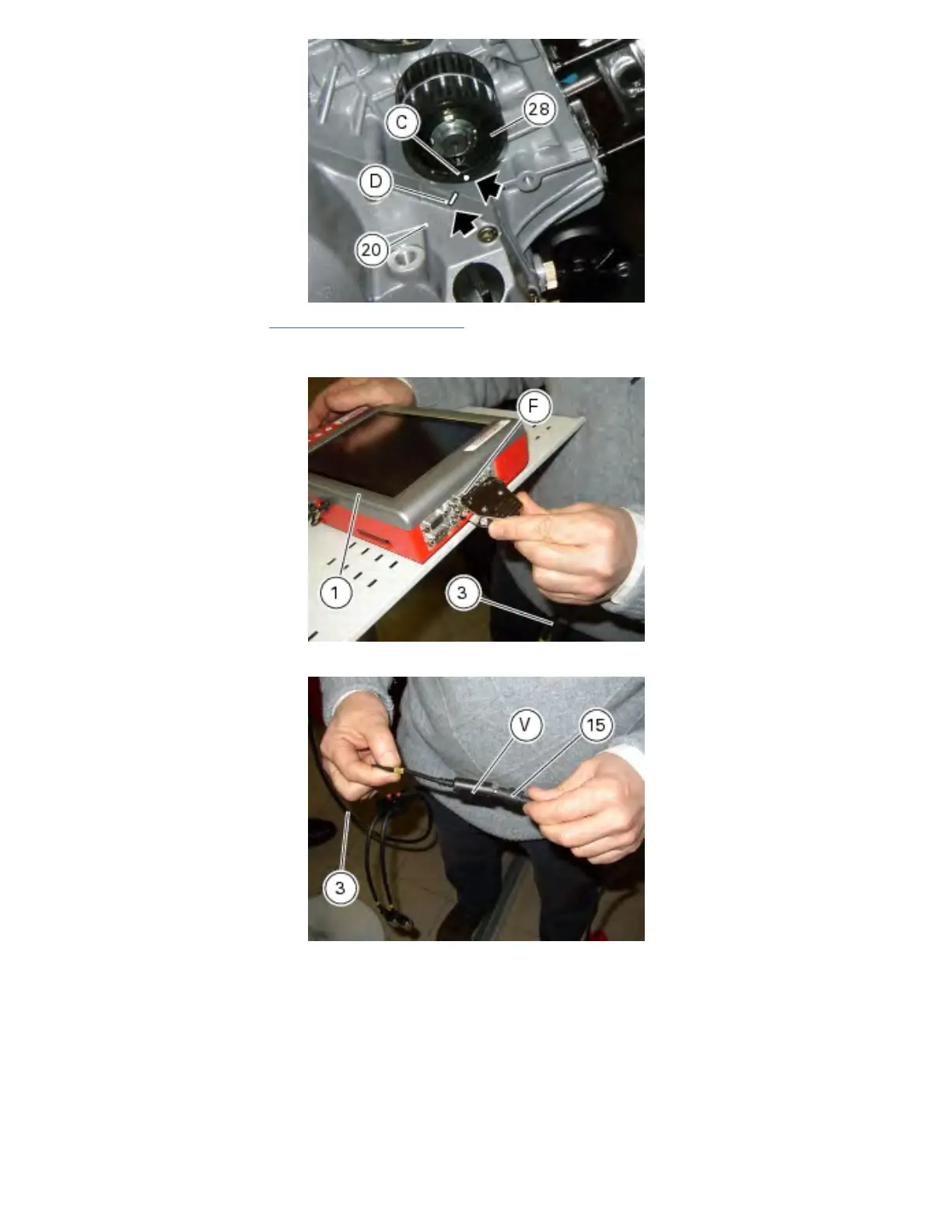

Switch on the DDS (1), refer to "Instrument power supply".
Connect the power and diagnosis cable (Measurement Module) (3) to measurement module connector (F) of the DDS
(1).
Connect the belt tension sensor (15) to power and diagnosis cable (Measurement Module) (3) connector (V).
Secure the belt tension sensor bracket (15) using belt cover screw (21).
Aim the middle green led of the sensor (15) at the centre of the belt section by positioning the sensor (15) at the
same level of the belt at a distance of 1-1.5 cm.
