Testers

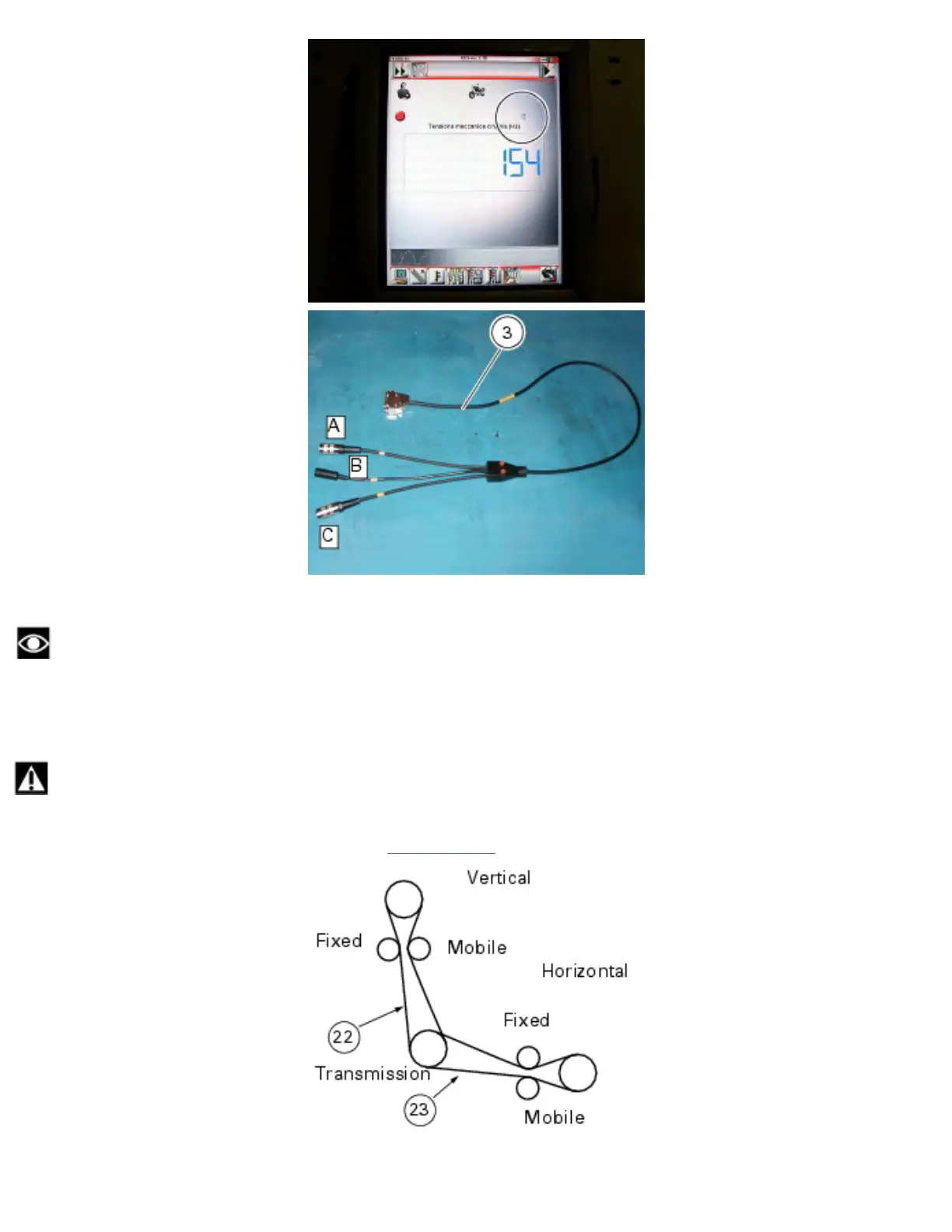

Lightly flick the belt with a finger and then read frequency value (Hz) on the DDS.
Note
Do not flick several times, as the DDS needs at least 1 second to read the value.
Warning
Check tension reading on the belt sections (22) and (23) indicated in the figure.
Belt tension values are indicated in Sect. C 1.1,
Timing/valves.
