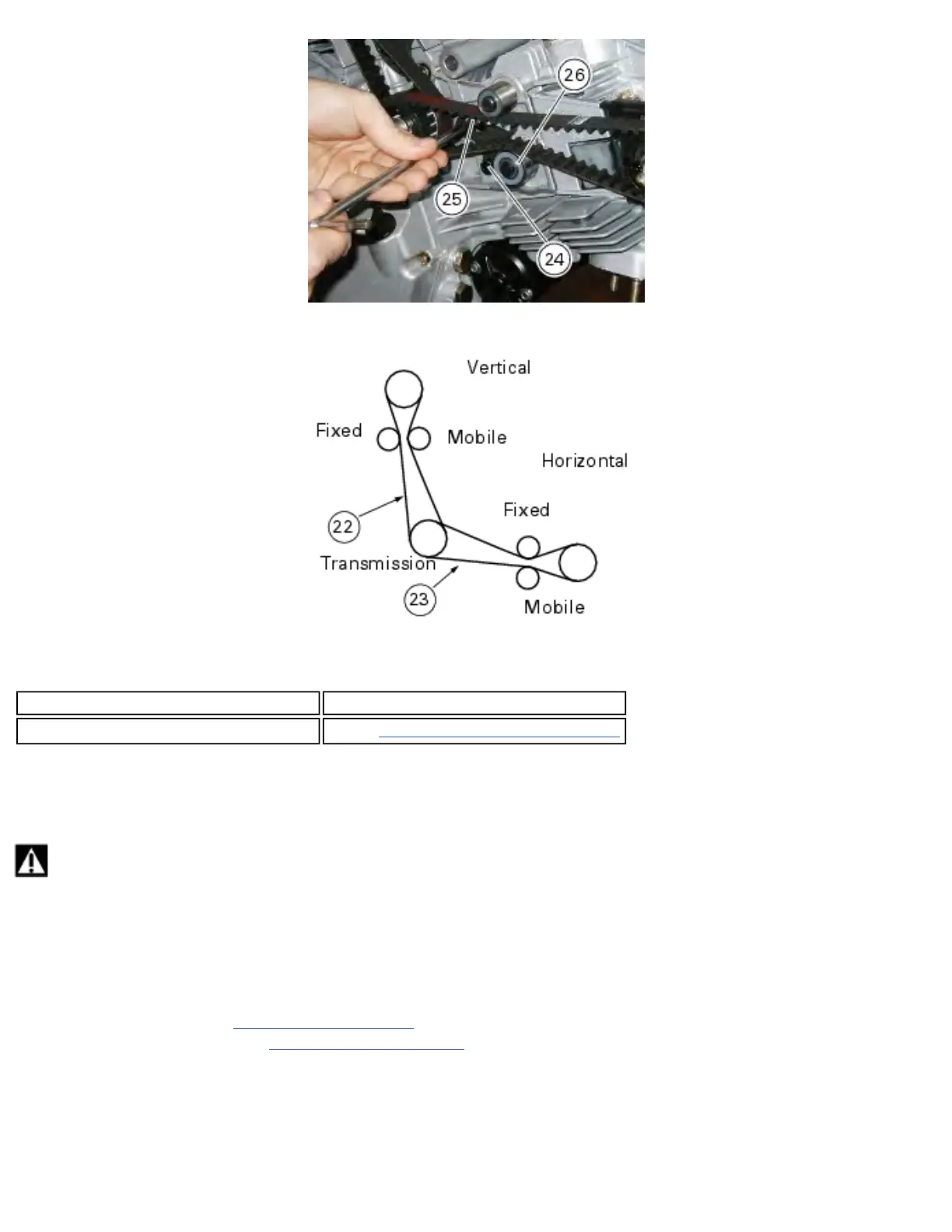

Set the crankshaft at the TDC of the vertical cylinder, in the combustion stroke (valve closed), and repeat the same
procedure used for the horizontal cylinder, reading tension on section (22) of the vertical belt.
Disconnect the belt tension sensor and the DDS from the vehicle.
Operations Reference See Section
Remove side covers N 4.2,
Refitting the timing side covers
Zero setting the throttle position sensor (TPS)
The linear-type TPS cannot be adjusted, follow the procedure below to ensure proper system operation.
Warning
When the throttle body, throttle position sensor, electronic control unit or wiring have been replaced, perform this
procedure first before starting the engine.
Ensure that the throttle is fully home on its end screw (choke control lever disabled and throttle control completely
closed).
Throttle position sensor angle should be learned by the CPU under the above conditions. Use the DDS as described
below.
Lift the fuel tank (Sect. L 2,
Removing the fuel tank).
Switch on the DDS (1), refer to "
Instrument power supply".
Connect the diagnosis connector (A) of the power and diagnosis cable (2) to the motorcycle diagnosis socket (B).
